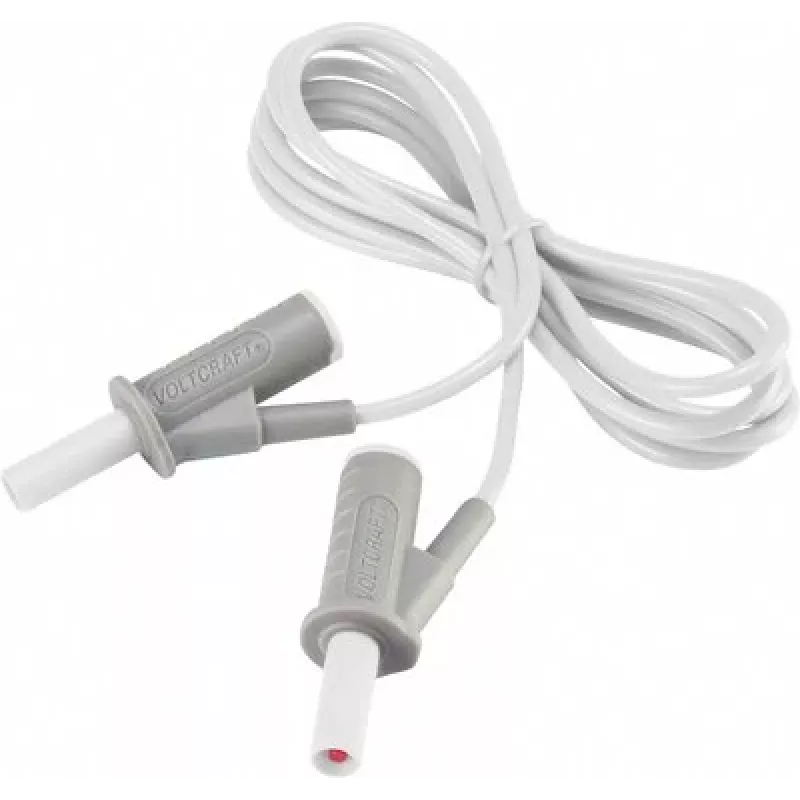

VOLTCRAFT cabo de medição de segurança altamente flexível [ficha de lâminas 4 mm - ficha de lâminas 4 mm] 1,5 m branco MSB-501 10 A (VC-8063555)

For precise measurements in tight spaces, the VOLTCRAFT MSB-501 safety test lead stands out with its highly flexible PVC insulation and stackable 4 mm lamella plugs. Unlike standard leads that kink and restrict movement, this 1.5 m white cable bends effortlessly, ensuring reliable contact even in crowded control cabinets or awkward test points. Rated for CAT III 1000 V and CAT IV 600 V, it meets IEC/EN 61010 safety standards, making it a dependable choice for professional electricians and laboratory technicians.

Highlights

• Highly flexible PVC insulation for easy routing and handling
• Stackable 4 mm lamella plugs on both ends for versatile connections
• Safety rated CAT III 1000 V / CAT IV 600 V per IEC/EN 61010
• Nickel-plated brass contacts ensure low resistance and durability
• 1 mm² cross-section supports up to 10 A continuous current
• White colour for quick identification in complex setups

In daily use

This test lead is ideal for multimeter measurements, continuity checks, and voltage testing in industrial, automotive, and educational environments. The stackable plug design allows multiple leads to be connected to the same point, while the flexible cable reduces stress on connectors and test points. The operating temperature range of -15 to +70 °C ensures performance in varied conditions. The polyamide housing on the plugs provides robust insulation and grip.

Full specifications

• Product type: Safety test lead
• Connector A: 4 mm lamella plug, stackable
• Connector B: 4 mm lamella plug, stackable
• Cable length: 1.5 m
• Cable cross-section: 1 mm²
• Colour: White
• Current rating: 10 A
• Voltage rating: CAT III 1000 V, CAT IV 600 V
• Safety standard: IEC/EN 61010
• Insulation material: PVC
• Contact material: Nickel-plated brass
• Operating temperature range: -15 to +70 °C
• Plug housing material: PA (polyamide)
• Number of leads: 1

Final note

With its combination of flexibility, safety ratings, and stackable connectors, the VOLTCRAFT MSB-501 is a reliable test lead for demanding measurement tasks. Its white colour aids in cable management, and the robust construction ensures long service life.
