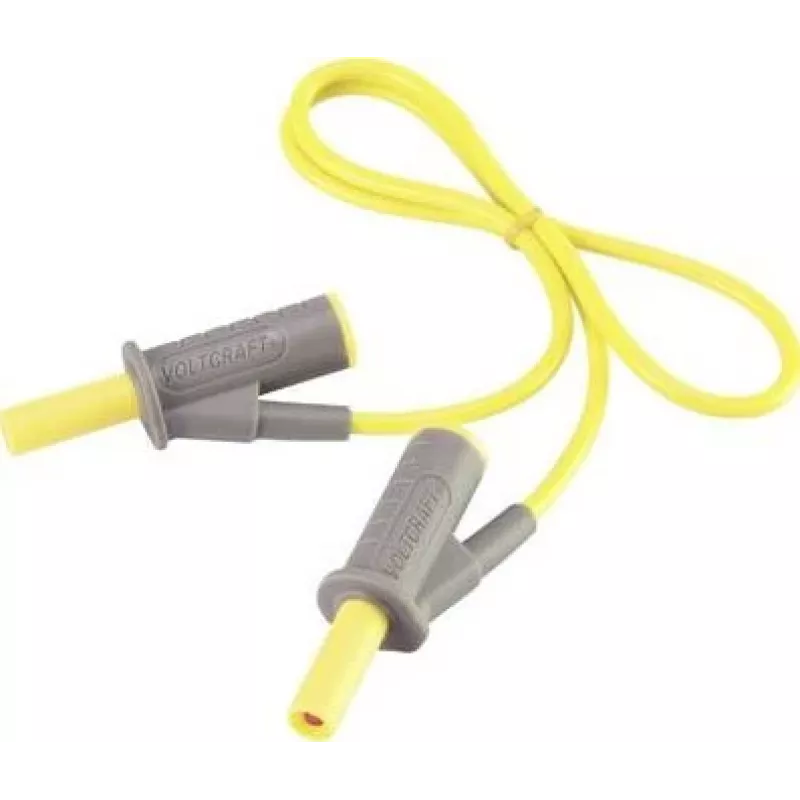

VOLTCRAFT Cabo de Medição de Segurança Altamente Flexível 4 mm Ficha de Lâminas para 4 mm Ficha de Lâminas 0,5 m Amarelo MSB-501 10 A VC-8063450

Built for precision measurements in tight spaces, the VOLTCRAFT MSB-501 safety test lead pairs a highly flexible PVC-insulated cable with stackable 4 mm lamella plugs on both ends. Unlike rigid standard leads, this 0.5 m yellow lead bends effortlessly around obstacles while maintaining a secure, low-resistance connection—ideal for bench work, field service, and crowded terminal blocks.

Highlights

• Highly flexible cable for easy routing in confined areas
• Stackable 4 mm lamella plugs allow daisy-chaining of multiple leads
• CAT III 1000 V / CAT IV 600 V safety rating for professional use
• 10 A current rating with nickel-plated brass contacts for reliable conductivity
• 1 mm² copper conductor ensures low voltage drop and accurate readings

In daily use

The MSB-501 excels in multimeter and test instrument connections where flexibility and safety are paramount. The stackable lamella plugs let you connect multiple leads to a single point, simplifying complex measurement setups. The bright yellow jacket provides high visibility, reducing the risk of accidental disconnection or misidentification. Rated for CAT III 1000 V and CAT IV 600 V environments, it meets IEC/EN 61010 standards, making it suitable for industrial, laboratory, and educational applications. The operating temperature range of -15 °C to +70 °C ensures consistent performance in varying conditions.

Full specifications

• Product type: Safety test lead
• Cable type: Highly flexible
• Connector A: 4 mm lamella plug, stackable
• Connector B: 4 mm lamella plug, stackable
• Cable length: 0.5 m
• Colour: Yellow
• Current rating: 10 A
• Nominal voltage (CAT III): 1000 V
• Nominal voltage (CAT IV): 600 V
• Safety category: CAT III, CAT IV
• Insulation material: PVC
• Conductor material: Copper
• Conductor cross-section: 1 mm²
• Safety standard: IEC/EN 61010
• Operating temperature range: -15 °C to +70 °C
• Contact material: Nickel-plated brass
• Number of leads: 1

Final note

For technicians who demand both flexibility and safety, the VOLTCRAFT MSB-501 delivers dependable performance in a compact, high-visibility package.
