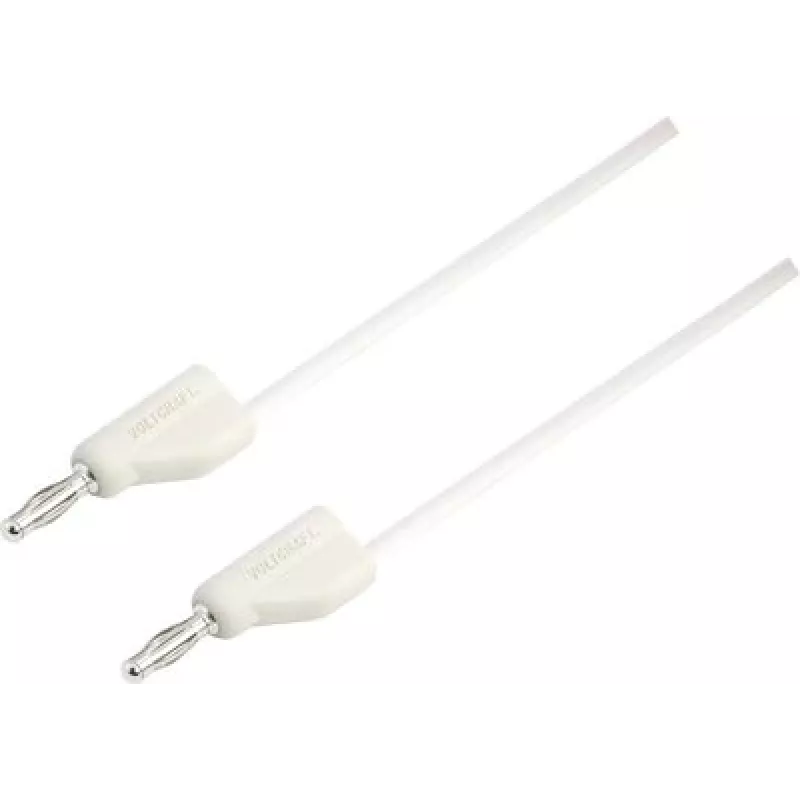

Cabo de medição VOLTCRAFT MSB-300-5-WS, ficha banana de 4 mm para ficha banana de 4 mm, 5 m, branco, 16A, 30VAC/60VDC, CAT I

Test lead with 4mm banana plugs on both ends, delivering a 5-meter reach for bench measurements, lab setups, and low-voltage signal tracing. Its 1mm² copper conductor and PVC insulation support a continuous 16A current, while the straight nickel-plated brass plugs ensure low contact resistance and secure insertion.

Advantages

The white jacket provides high visibility against dark workbenches and cable bundles, reducing misidentification. The flexible PVC insulation remains pliable from -15°C to +70°C, and the 1mm² cross-section balances flexibility with minimal voltage drop. Rated for CAT I environments up to 30V AC/60V DC, this lead is ideal for safe low-energy measurements.

Suitable for

• Connecting multimeters, power supplies, and signal generators with 4mm banana jacks
• Bench testing of low-voltage circuits, prototypes, and educational experiments
• Extending measurement reach in labs, workshops, and field service kits
• Use with equipment requiring a single test lead (not a set) for custom setups

Key specifications

• Connector A: 4mm banana plug, straight, nickel-plated brass
• Connector B: 4mm banana plug, straight, nickel-plated brass
• Cable length: 5m
• Conductor cross-section: 1mm², copper
• Rated current: 16A
• Rated voltage: 30V AC / 60V DC, CAT I
• Insulation: PVC, white
• Temperature range: -15°C to +70°C
• Stackable: No

Recommendations

For applications requiring a single, long-reach test lead with standard 4mm banana plugs, the VOLTCRAFT MSB-300-5-WS offers reliable performance and clear identification. Pair with matching black or red leads for polarity coding in multi-channel setups.
