Cabo de medição VOLTCRAFT MSB-100 preto 1 m, ficha banana de 4 mm para ficha banana de 4 mm, CAT III 1000V CAT IV 600V 19A VC-15443090

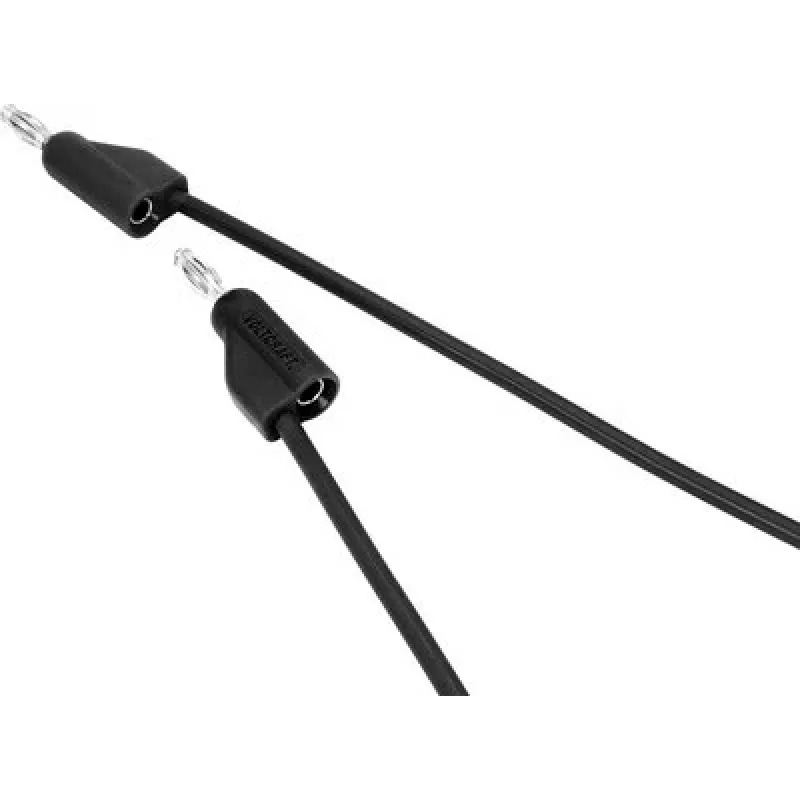

The VOLTCRAFT MSB-100 stands out with its exceptional 19 A current rating and CAT III 1000 V / CAT IV 600 V safety certification, making it a reliable choice for demanding measurement tasks. This 1-metre test lead features stackable 4 mm safety banana plugs on both ends, allowing for flexible connections in complex setups. The highly flexible PVC insulation ensures easy handling even in tight spaces, while the nickel-plated brass contacts provide low contact resistance and long-term durability.

Highlights

• Rated for 19 A and 1000 V CAT III / 600 V CAT IV
• Stackable 4 mm safety banana plugs on both ends
• Highly flexible PVC cable with 2.5 mm² conductor cross-section
• Nickel-plated brass contact material for reliable conductivity
• Wide operating temperature range from -15 °C to +70 °C

In daily use

Whether you are working in a laboratory, on industrial equipment, or in field service, the MSB-100 delivers consistent performance. The stackable connectors allow you to chain multiple leads or connect to additional instruments without the need for adapters. The black colour helps identify the lead in colour-coded measurement setups, and the robust construction withstands frequent bending and movement. The lead is sold individually, so you can order exactly the quantity you need.

Full specifications

• Product type: Test lead
• Connector type A: 4 mm safety banana plug
• Connector type B: 4 mm safety banana plug
• Cable length: 1 m
• Colour: Black
• Rated current: 19 A
• Rated voltage: 1000 V
• Safety category: CAT III 1000 V, CAT IV 600 V
• Insulation material: PVC
• Cable material: Highly flexible PVC
• Conductor cross-section: 2.5 mm²
• Contact material: Nickel-plated brass
• Temperature range: -15 to +70 °C
• Stackable connectors: Yes
• Quantity per pack: 1 piece
• Series: MSB-100

Final note

For professionals who need a safe, flexible, and high-current test lead, the VOLTCRAFT MSB-100 is a dependable companion that meets stringent safety standards without compromising on ease of use.
