Cabo de medição de segurança VOLTCRAFT MSB-132 2 m preto, fichas empilháveis de 4 mm, 32 A, 1000 V CAT III VC-18709995

Rated for 32 A and 1000 V CAT III, the VOLTCRAFT MSB-132 is a professional-grade safety test lead built for demanding electrical measurements. Its 2-metre black PVC cable with 2.5 mm² copper conductors and stackable 4 mm nickel-plated brass plugs ensures reliable, low-resistance connections in lab, field, and industrial environments.

Overview

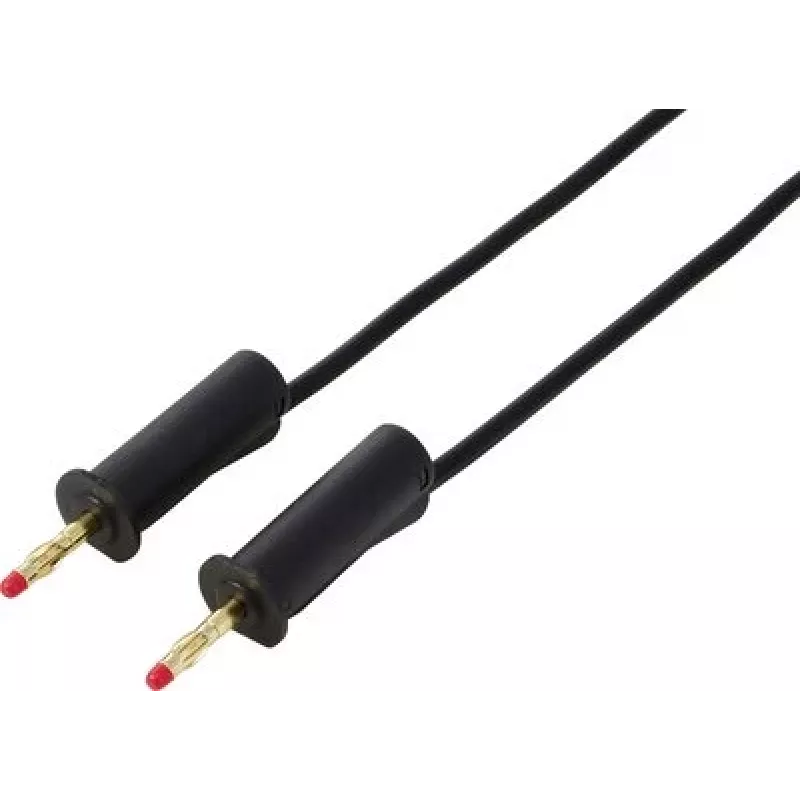

The VOLTCRAFT MSB-132 is a single 2-metre black safety test lead with 4 mm safety plugs on both ends. Designed for use with multimeters, power supplies, and other test equipment, it provides a secure and flexible connection for a wide range of measurement tasks. The lead complies with EN 61010-031 and is suitable for CAT III 1000 V and CAT IV 600 V applications, making it a safe choice for high-energy circuits.

What stands out

• High current capacity: 32 A continuous rating for demanding tests.
• Dual safety ratings: CAT III 1000 V and CAT IV 600 V for versatile use.
• Stackable 4 mm plugs: allow multiple leads to be connected to a single test point.
• Low contact resistance: less than 30 mΩ ensures accurate measurements.
• Durable construction: PVC insulation and nickel-plated brass connectors withstand daily use.
• Wide temperature range: operates from -15 °C to +70 °C.

Technical details

• Product type: Safety test lead
• Connector type (both ends): 4 mm safety plug, stackable
• Cable length: 2 m
• Colour: Black
• Current rating: 32 A
• Voltage rating: 1000 V CAT III / 600 V CAT IV
• Safety standard: EN 61010-031
• Insulation material: PVC
• Conductor material: Copper
• Connector material: Nickel-plated brass
• Cable cross-section: 2.5 mm²
• Temperature range: -15 °C to +70 °C
• Contact resistance: < 30 mΩ
• Quantity per pack: 1 piece
• Compliance: RoHS

Our verdict

The VOLTCRAFT MSB-132 delivers exceptional safety and performance for professional electrical testing. Its robust construction and high ratings make it an essential accessory for any serious technician or engineer.
