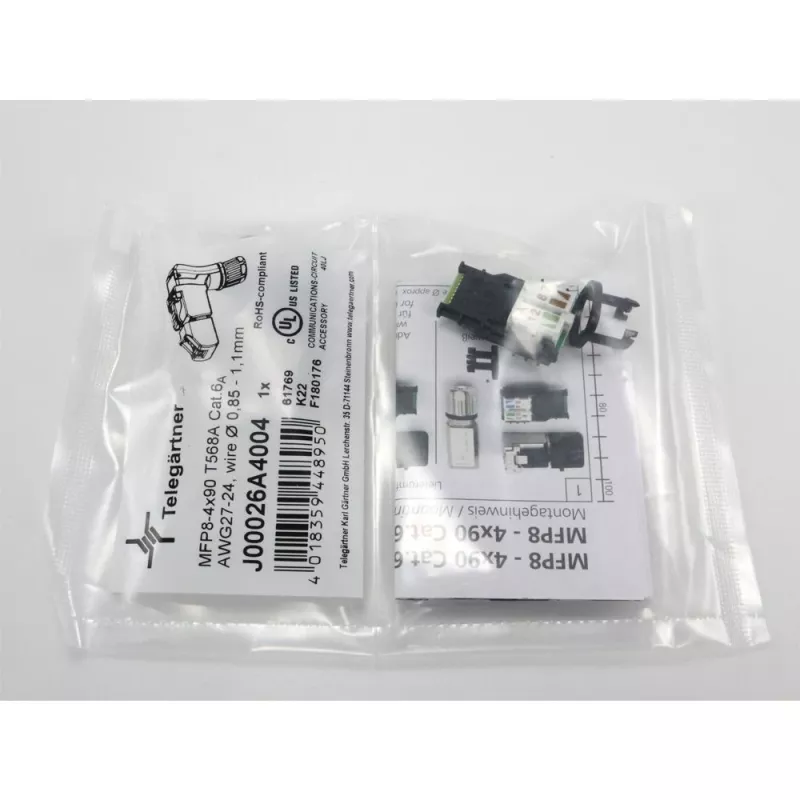

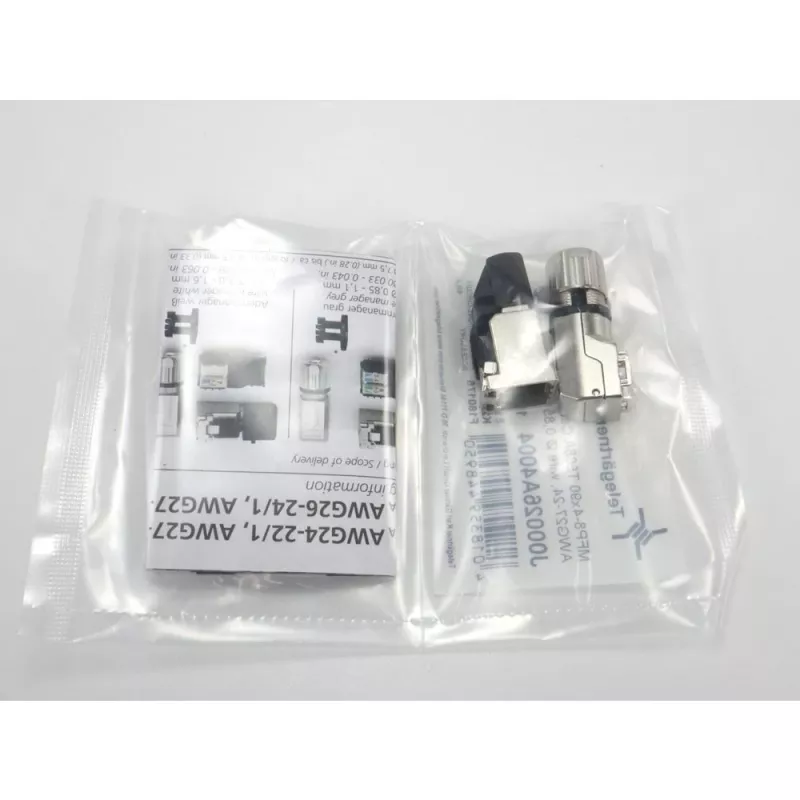

Telegärtner MFP8-4x90 Ficha RJ45 Cat.6A para Montagem em Campo, T568A, Blindada, Multi-ângulo J00026A4004

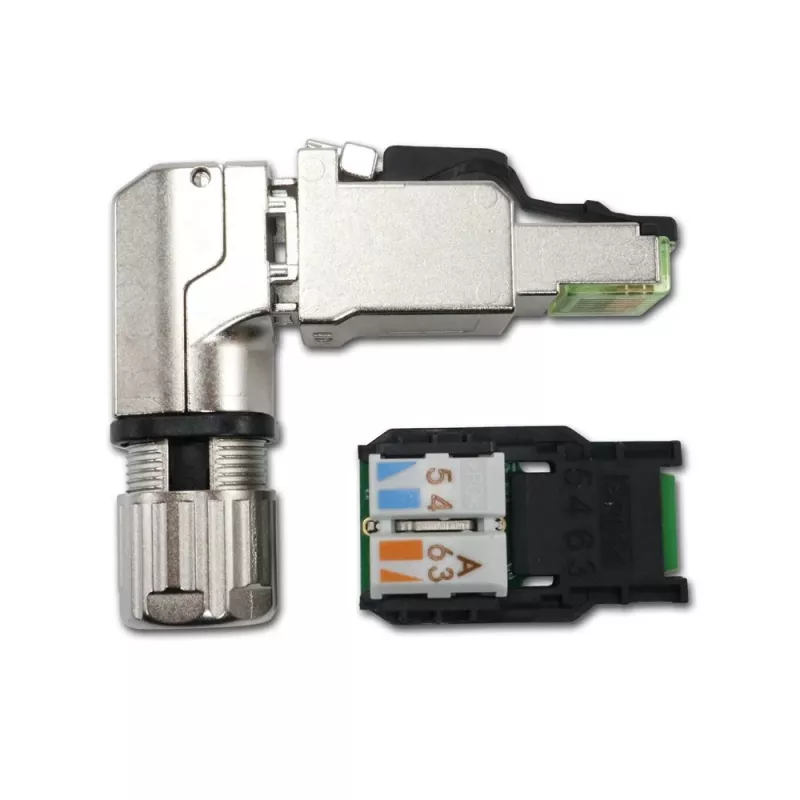

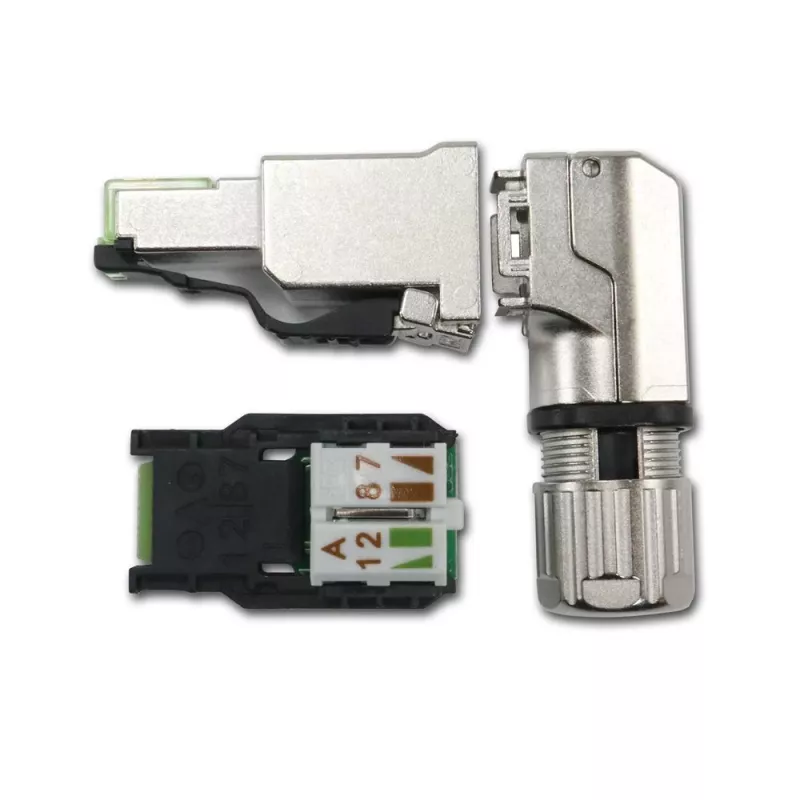

The Telegärtner MFP8-4x90 Cat.6A RJ45 plug delivers 10 Gigabit Ethernet performance in a field-terminable, tool-free design. Its zinc die-cast housing and multi-angle cable exit (4x90° configurable) make it ideal for high-density installations where space and reliability are critical.

Overview

This shielded RJ45 plug supports Category 6A per ISO/IEC 11801 and EN 50173, ensuring full 10GBASE-T performance. It accommodates solid and stranded conductors from AWG24/1 to AWG22/1 (solid) and AWG27/7 to AWG22/7 (stranded), with cable outer diameters from 5.0 mm to 9.0 mm. The connector is reusable up to 10 cycles and rated for over 750 insertion cycles, with an operating temperature range of -40°C to +70°C.

What stands out

• Tool-free IDC termination for fast, reliable field assembly
• Multi-angle cable exit (4x90°) for flexible routing in tight spaces
• Robust zinc die-cast, nickel-plated housing with UL94 V-0 rated plastic components
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for power-hungry devices
• Gold-plated phosphor bronze contacts (min. 0.8 µm) ensure signal integrity

Technical details

• Connector type: RJ45 plug, 8P8C
• Category: Cat.6A (ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2)
• Shielding: Shielded (STP/FTP)
• Termination: Field-terminable, tool-free IDC
• Wiring standard: T568A and T568B
• Cable compatibility: Solid AWG24/1 - AWG22/1, stranded AWG27/7 - AWG22/7, outer diameter 5.0 - 9.0 mm
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Housing: Zinc die-cast, nickel-plated; plastic components UL94 V-0
• Contact material: Phosphor bronze, gold-plated (min. 0.8 µm)
• Reusability: Up to 10 cycles
• Insertion cycles: > 750
• Operating temperature: -40°C to +70°C

Our verdict

A premium Cat.6A field plug that combines tool-free convenience with industrial-grade durability, perfect for demanding network installations.
