TELEGÄRTNER placa de distribuição de fibra ótica para 12 x ligações ST duplex (H02025A0293)

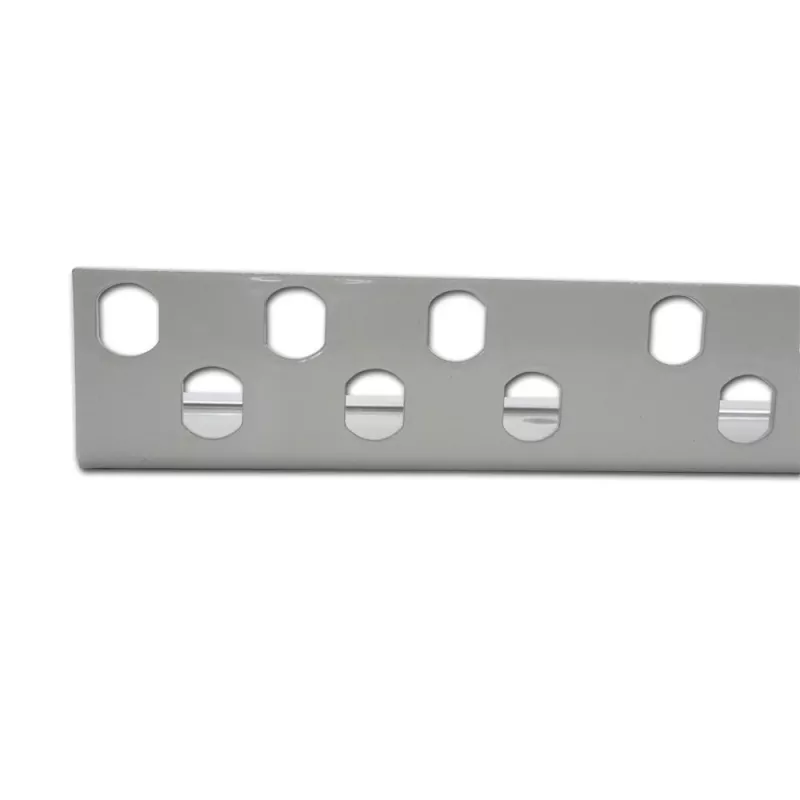

Managing multiple fiber optic connections in a structured cabling system can quickly become chaotic without a reliable patching solution. The TELEGÄRTNER Fiber Optic Distribution Plate for 12 x ST Duplex Connections (H02025A0293) provides a clean, organized interface for terminating and managing up to 24 fibers in a compact form factor. Designed for snap-in installation into TELEGÄRTNER distribution housings, this steel plate offers a robust and stable platform for ST duplex adapters, ensuring consistent performance in data centers, LAN environments, and industrial applications.

Who is it for

This distribution plate is ideal for network engineers, data center technicians, and system integrators who need a high-density, reliable fiber termination point. It is particularly suited for projects using multimode OM3 or OM4 fiber, where consistent alignment and low insertion loss are critical for high-speed data transmission.

Main features

• Supports 12 ST duplex ports, accommodating up to 24 fibers
• Snap-in/clip-in mounting for quick installation into TELEGÄRTNER distribution housings
• Beige adapters with zirconia ceramic ferrules for precise alignment
• Steel plate construction for durability and stability
• Compatible with multimode OM3 and OM4 fibers
• Operating temperature range from -20°C to +70°C

Specifications

• Connector Type: ST Duplex
• Number of Ports: 12
• Fiber Capacity: 24 fibers
• Fiber Mode: Multimode
• Fiber Class Compatibility: OM3, OM4
• Adapter Color: Beige
• Plate Material: Steel
• Mounting Type: Snap-in / Clip-in
• Typical Insertion Loss (Adapter): < 0.3 dB
• Typical Return Loss (Adapter): > 30 dB
• Ferrule Material: Zirconia Ceramic
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -25°C to +75°C
• Plate Dimensions (W x H): 128 mm x 29 mm
• Adapter Depth: 20 mm

Tips

Ensure the distribution housing is compatible with TELEGÄRTNER snap-in plates before installation. For best performance, use high-quality ST duplex connectors and clean all ferrules before mating. The beige adapter color follows standard multimode color coding, simplifying identification in mixed environments.
