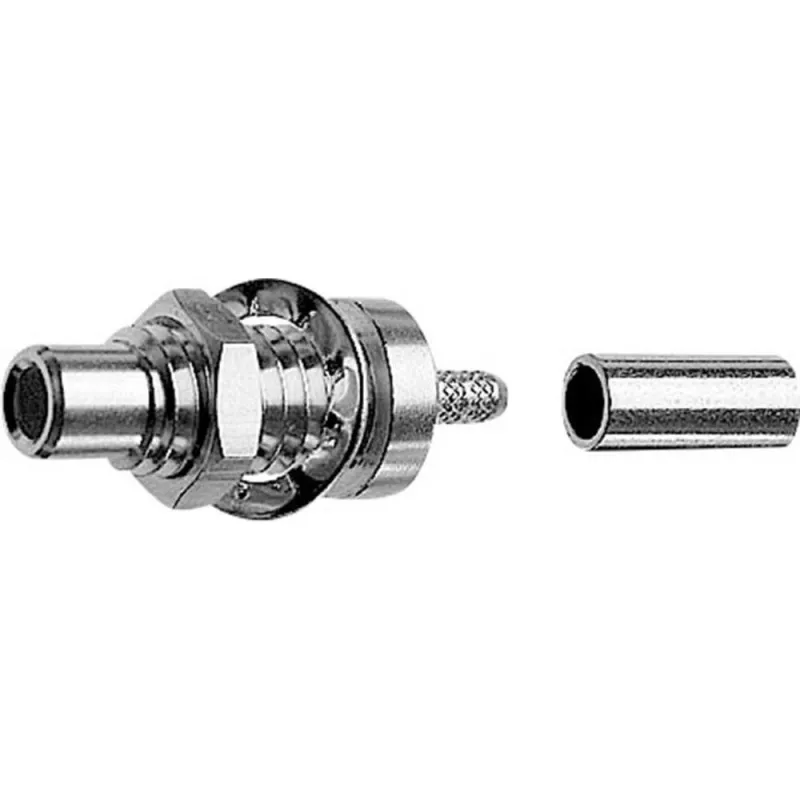

Telegärtner SMC conector, de encastrar, 50 Ohm, ligação por solda, caixa niquelada, contacto interior dourado J01170A0151

RF technicians and radio amateurs use this SMC plug connector when building or repairing panel-mounted coaxial connections in compact communication equipment. The threaded coupling ensures a secure mate, while the solder center contact provides a reliable termination for small coaxial cables.

Key specifications

• Connector series: SMC
• Connector type: Plug (male)
• Mounting type: Panel mount / bulkhead
• Body style: Straight
• Impedance: 50 Ohm
• Termination method: Solder (center contact)
• Frequency range: DC to 10 GHz
• Voltage rating: 335 Veff
• VSWR: ≤ 1.25 (DC-6 GHz), ≤ 1.35 (6-10 GHz)
• Operating temperature: -65 °C to +165 °C
• Mating cycles: ≥ 500
• Body material: Brass, nickel plated
• Center contact plating: Gold
• Insulator material: PTFE
• Coupling mechanism: Threaded (M7 x 0.75)
• Max panel thickness: 3.2 mm
• Recommended mounting hole: 6.4 mm

Why choose it

This connector offers stable electrical performance up to 10 GHz with low VSWR, making it suitable for high-frequency signal integrity. The gold-plated center contact ensures low contact resistance and corrosion resistance, while the nickel-plated brass body provides durability and a clean appearance.

Ideal use cases

• Panel-mounted RF connections in test and measurement equipment
• Compact radio communication devices
• Antenna feedthroughs on enclosures
• Custom RF cable assemblies

Good to know

The SMC interface is a miniature threaded connector, smaller than SMA, often used where space is limited. The solder termination requires basic soldering skills and appropriate tools. The panel mount design allows direct mounting on a chassis or panel with a maximum thickness of 3.2 mm.
