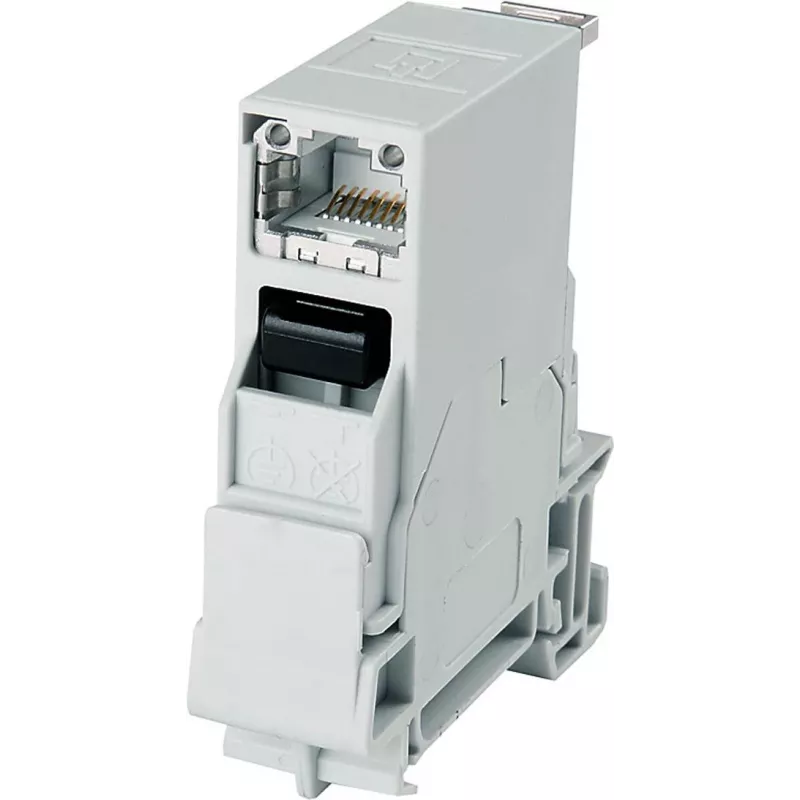

Telegärtner STX Montagem em calha DIN RJ45 Cat.6A módulo blindado, cinzento claro

In industrial control cabinets and building automation panels, network connections must remain reliable despite vibration, temperature swings, and tight space. The Telegärtner STX DIN Rail Mount RJ45 module answers that need: a shielded Cat.6A jack that snaps onto a standard TS35 rail, turning any DIN rail into a high-performance network access point. Its die-cast zinc housing and gold-plated contacts deliver 10 Gigabit Ethernet with full PoE support, while tool-free IDC termination makes field installation fast and repeatable.

Key specifications

• Connector type: RJ45 female, shielded (FTP/STP)
• Performance: Cat.6A, up to 10 Gigabit Ethernet, compliant with ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2
• Mounting: DIN rail TS35, die-cast zinc housing, light grey (RAL 7035)
• Termination: tool-free IDC, solid wire AWG 24/1–22/1, stranded AWG 26/7–22/7
• Cable diameter: 5.0–9.0 mm
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE)
• Operating temperature: -40 °C to +70 °C
• Flammability rating: UL94 V-0

Why choose it

This module is built for harsh industrial environments. The shielded die-cast zinc body protects against EMI and mechanical stress, while the wide temperature range ensures operation in unheated or outdoor cabinets. Tool-free IDC termination reduces installation time and eliminates the need for special tools, lowering total cost of ownership. With full 4PPoE support, it can power devices up to 90 W, making it future-proof for connected sensors, cameras, and access points.

Ideal use cases

• Industrial Ethernet networks in manufacturing and process automation
• Building automation and HVAC control panels
• Transportation systems, including rail and roadside cabinets
• PoE-powered devices such as IP cameras, wireless access points, and IoT gateways

Good to know

The module is part of the Telegärtner STX series, which offers a consistent design and performance across DIN rail and panel-mount variants. It is compatible with all standard RJ45 plugs and supports both solid and stranded conductors, giving flexibility in cable choice. The light grey colour (RAL 7035) matches common industrial enclosures, and the compact footprint leaves room for additional modules on the same rail.
