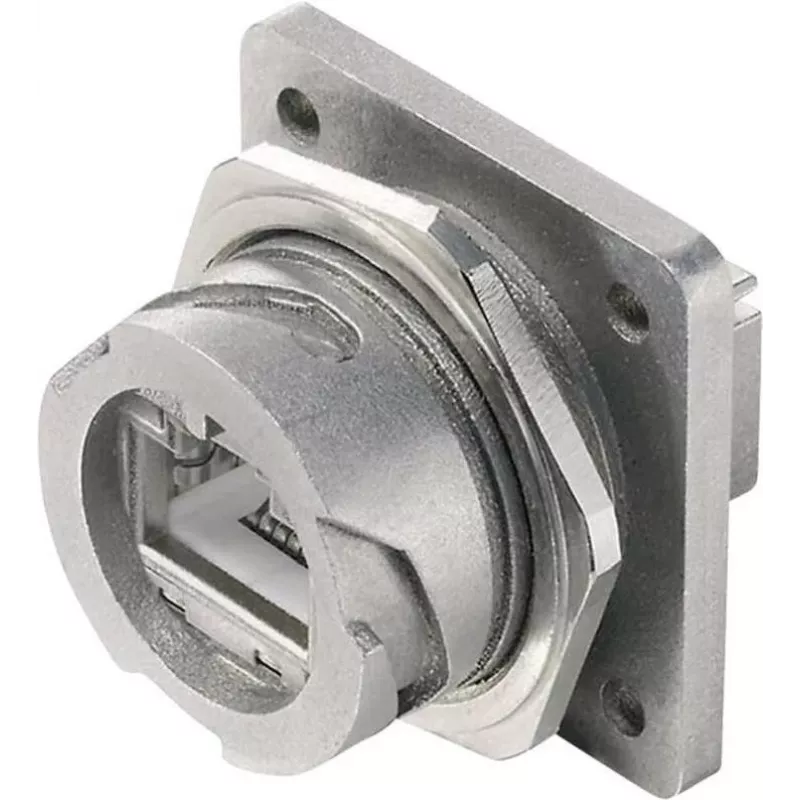

Telegärtner STX V1 conjunto de flange RJ45 metal variante 1 conector fêmea, montagem em painel 8P8C J80020A0001

Industrial and outdoor network installations often expose RJ45 connections to dust, moisture, and mechanical stress, leading to intermittent links or complete failure. The Telegärtner STX V1 RJ45 Flange Set solves this by providing a shielded, die-cast metal housing that protects the coupler and maintains a reliable 10 Gigabit Ethernet link even in harsh environments.

Who is it for

This flange set is intended for system integrators, panel builders, and network technicians who need a robust, panel-mountable RJ45 connection point for industrial machinery, outdoor enclosures, or high-vibration areas. It suits applications where standard plastic keystone jacks are not durable enough.

Main features

• Panel-mount flange set with integrated RJ45 coupler, 8P8C
• Die-cast zinc housing for high mechanical strength and EMI shielding
• Sealed to IP67 when mated, protecting against dust and temporary immersion
• Supports 10 Gigabit Ethernet (Cat.6A) for high-speed data transmission
• Gold-plated contacts ensure reliable signal integrity over 750+ mating cycles
• Operating temperature range from -40 °C to +70 °C for extreme environments

Specifications

• Product type: RJ45 flange set
• Series: Telegärtner STX V1
• Variant: Variant 1
• Connector type: RJ45 jack (coupler)
• Number of positions/contacts: 8P8C
• Mounting type: Panel mount / flange mount
• Housing material: Die-cast zinc (metal)
• Shielding: Shielded
• Protection rating (mated): IP67
• Category rating: Cat.6A
• Transmission performance: Up to 10 Gigabit Ethernet (10GBase-T)
• Operating temperature range: -40 °C to +70 °C
• Mating cycles: > 750
• Contact plating: Gold over nickel
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• RoHS compliant: Yes
• Colour: Metallic / Silver

Tips

Use this flange set with a compatible Telegärtner STX V1 mating plug or protective cap to maintain the IP67 seal. For outdoor installations, ensure the panel cutout is properly sealed and the flange is securely fastened to prevent moisture ingress behind the panel.
