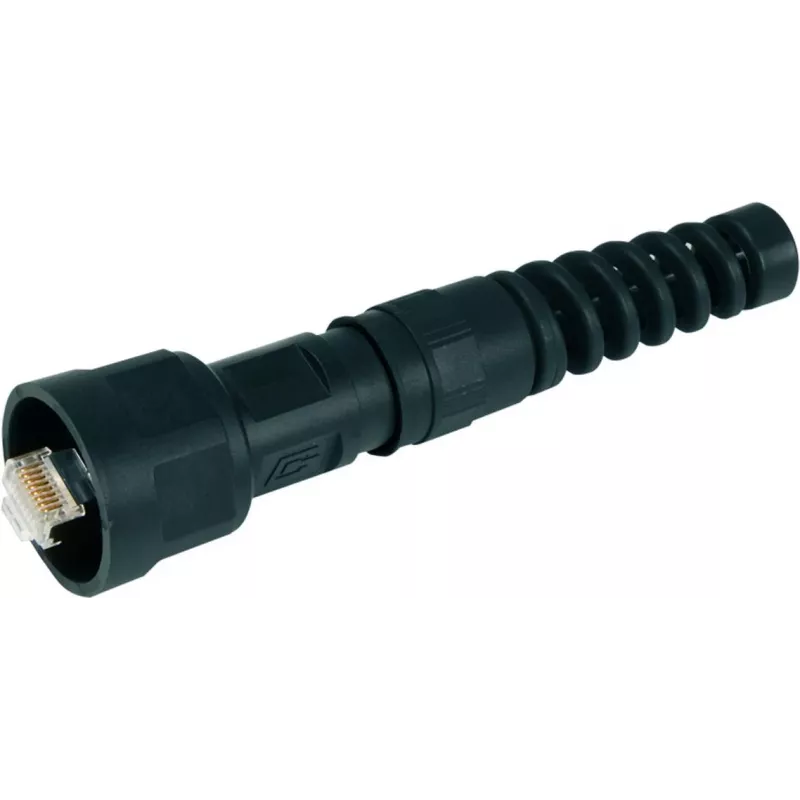

Telegärtner STX V1 RJ45 Conjunto de fichas, variante em plástico 1, reto, 8P8C, blindado, preto, 1 unid.

Network technicians and installers working on Cat.6A cabling in office buildings or industrial environments often need a reliable, field-terminable RJ45 connector that can be assembled quickly without special tools. The Telegärtner STX V1 RJ45 Plug Set, Plastic Variant 1, delivers exactly that: a straight, shielded 8P8C connector with a robust die-cast zinc housing and plastic components, designed for solid and stranded copper cables from AWG 24/1 to AWG 22/1 and AWG 27/7 to AWG 22/7. This set includes one plug, ready for on-site termination.

Key specifications

• Connector type: RJ45 plug, 8P8C, straight orientation
• Shielding: shielded (STP/FTP), compliant with Cat.6A
• Assembly: tool-free, field-assemblable for solid and stranded wires
• Housing: die-cast zinc, nickel-plated, with plastic components, black
• Contact plating: gold
• Operating temperature: -40 °C to +70 °C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568
• PoE support: PoE, PoE+ (IEEE 802.3af/at/bt)

Why choose it

The STX V1 plug combines high-performance Cat.6A transmission with a rugged metal housing that ensures excellent shielding and durability. Its tool-free termination saves time on site, while the wide wire gauge range accommodates various cable types. The gold-plated contacts guarantee low contact resistance and long-term reliability, even in demanding PoE applications.

Ideal use cases

• Field termination of Cat.6A horizontal cabling in office networks
• Industrial Ethernet connections requiring robust, shielded connectors
• PoE-powered devices such as IP cameras, access points, and sensors
• Quick repairs or custom-length patch cords in data centers

Good to know

The plug is part of the Telegärtner STX series, known for consistent quality and compatibility. It is rated IP20 and intended for indoor use. One plug per set; order additional sets as needed for multiple terminations.
