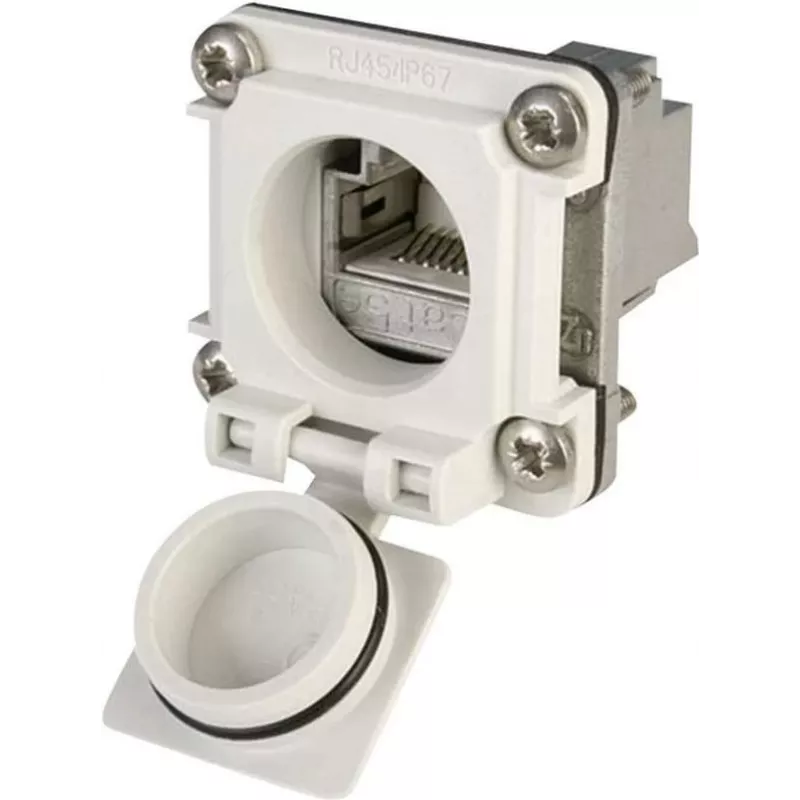

Telegärtner STX V6 Conjunto de tomada de flange RJ45 variante 6, 8P8C, blindado, Cat.6A, IP67, cinzento claro J00020A0483

For industrial Ethernet links that demand more than a standard panel jack, the Telegärtner STX V6 RJ45 Flange Mount Coupler Set Variant 6 delivers a shielded Cat.6A connection in a die-cast zinc housing built for harsh environments. Unlike ordinary couplers, this set is rated IP67 when mated, keeping dust and moisture out of the data path while supporting 10 Gigabit Ethernet up to 500 MHz. The front-panel flange design simplifies installation in control cabinets, machinery, or outdoor enclosures, and the light grey finish blends into modern equipment layouts.

Highlights

• Shielded RJ45 coupler (female-to-female) with 8P8C contacts
• Cat.6A performance for 10GBase-T networks
• IP67 protection when mated – dust-tight and waterproof
• Robust die-cast zinc housing with light grey coating
• Panel mount flange for secure front-side installation
• Gold-plated contacts ensure reliable signal integrity
• Wide operating temperature range from -40°C to +70°C

In daily use

Install the flange set into a standard panel cut-out using the included mounting hardware, then connect a shielded patch cable from each side. The coupler maintains full Cat.6A channel performance even under vibration, temperature swings, or exposure to washdowns. With at least 750 mating cycles, it withstands frequent reconnections in test bays or mobile equipment. The front entry orientation keeps cable routing tidy, while the die-cast zinc body provides excellent EMI shielding and mechanical strength.

Full specifications

• Brand: Telegärtner
• Model: J00020A0483
• MPN: J00020A0483
• EAN: 4018359323981
• Series: STX V6
• Variant: 6
• Connector type: RJ45
• Connector gender: Coupler (Female-Female)
• Number of positions/contacts: 8P8C
• Performance category: Cat.6A
• Shielding: Shielded
• IP rating: IP67 (when mated)
• Housing material: Die-cast zinc
• Product colour: Light grey
• Mounting type: Panel mount (flange)
• Cable entry: Front panel
• Data rate support: 10 Gigabit Ethernet (10GBase-T)
• Operating temperature: -40°C to +70°C
• Mating cycles: ≥ 750
• Standard compliance: IEC 60603-7-51
• Contact plating: Gold over nickel
• Flammability rating (insulator): UL 94 V-0

Final note

The Telegärtner STX V6 flange set is a dependable choice for industrial networks where uptime and signal quality are non-negotiable. Its sealed, shielded design keeps your 10G links running in the toughest conditions.
