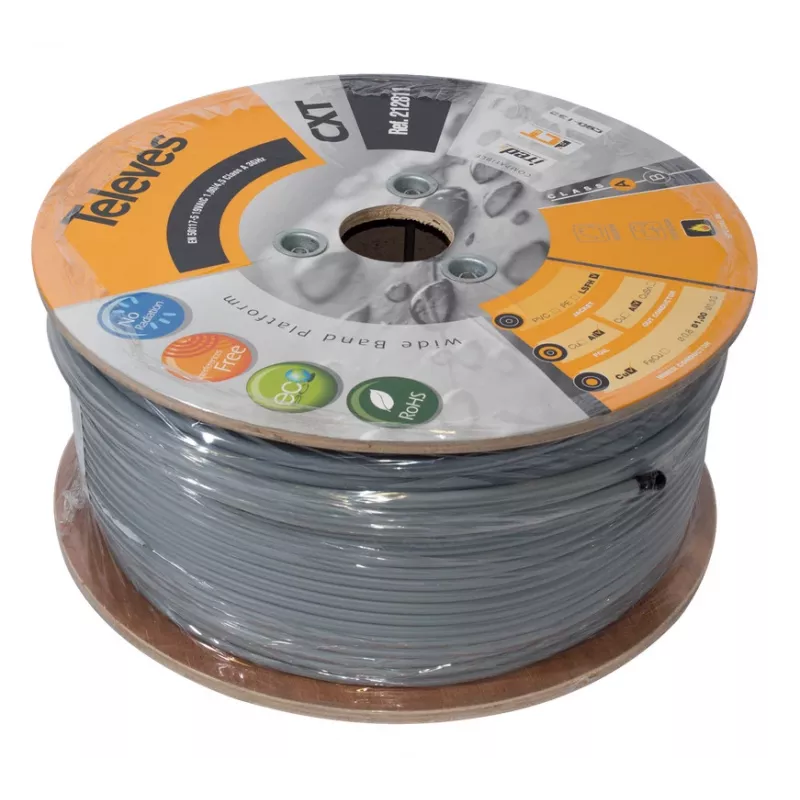

Televes CXT LSFH Dca Classe A Cabo coaxial 1m

For installations where fire safety and signal integrity cannot be compromised, the Televes CXT LSFH Dca Class A coaxial cable stands apart from standard coax. Its low-smoke, halogen-free jacket and Class A shielding make it a reliable backbone for modern RF distribution in residential and commercial buildings.

Highlights

• Class A shielding effectiveness (EN 50117-2-4) ensures excellent immunity to interference.
• LSFH outer jacket reduces smoke and toxic emissions in case of fire, meeting Euroclass Dca-s2,d2,a2.
• Solid copper inner conductor (1.00 mm) and foamed polyethylene dielectric deliver stable 75 Ohm performance up to 2150 MHz.

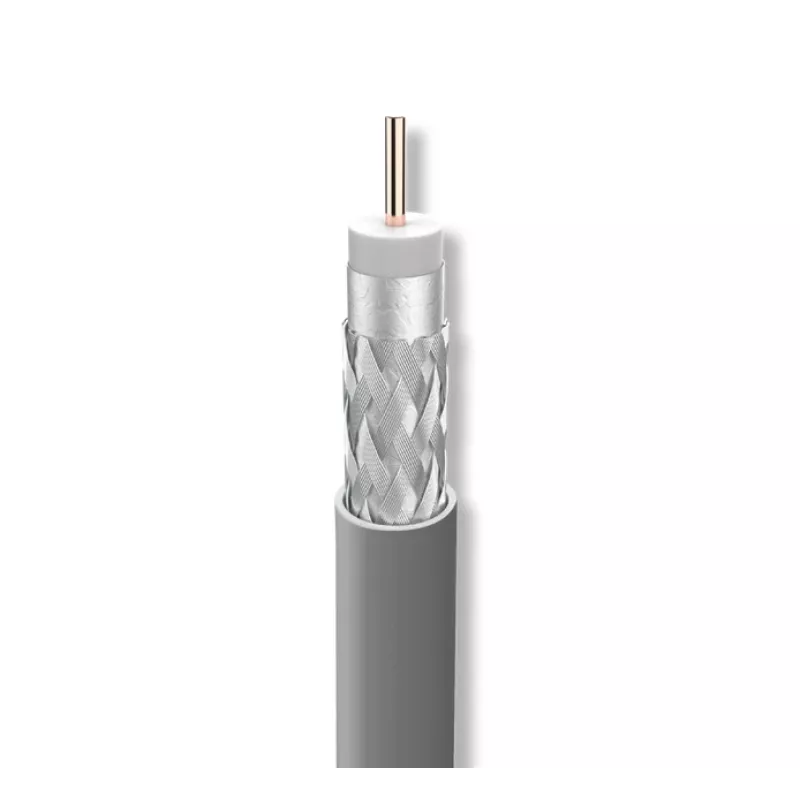

• Double shielding with bonded aluminium foil and 64x0.12 mm aluminium braid provides superior signal protection.
• Low attenuation: 18.5 dB/100m at 862 MHz, 30.5 dB/100m at 2150 MHz.

In daily use

This 1-metre cable is ideal for patch connections between wall outlets, splitters, amplifiers, and receivers. Its 6.9 mm outer diameter and 35 mm minimum bending radius allow neat routing in tight spaces. The cable maintains consistent impedance and return loss (>23 dB up to 470 MHz), ensuring reliable transmission for satellite, terrestrial, and cable TV signals.

Full specifications

• Brand: Televes
• Model: 212811
• MPN: 212811
• EAN: 8424450169834
• Cable type: Coaxial
• Impedance: 75 Ohm
• Cable length: 1 m
• Inner conductor material: Copper (Cu)
• Inner conductor diameter: 1.00 mm
• Dielectric material: Foamed Polyethylene (FPE)
• Dielectric diameter: 4.60 mm
• Shielding type: Double shielded (foil + braid)
• 1st shield material: Aluminium-PET-Aluminium bonded foil
• 2nd shield material: Aluminium braid (64x0.12 mm)
• Outer jacket material: LSFH (Low Smoke Free Halogen)
• Outer diameter: 6.90 mm
• Fire rating: Euroclass Dca-s2,d2,a2
• Shielding effectiveness: Class A (EN 50117-2-4)
• Attenuation @ 862 MHz: 18.5 dB/100m
• Attenuation @ 2150 MHz: 30.5 dB/100m
• Return loss (5-470 MHz): >23 dB
• Velocity of propagation: 85%
• Capacitance: 52 pF/m
• Operating temperature: -20°C to +70°C
• Minimum bending radius: 35 mm

Final note

Choose the Televes CXT LSFH Dca cable when your installation demands both high-frequency performance and compliance with strict fire safety regulations.
