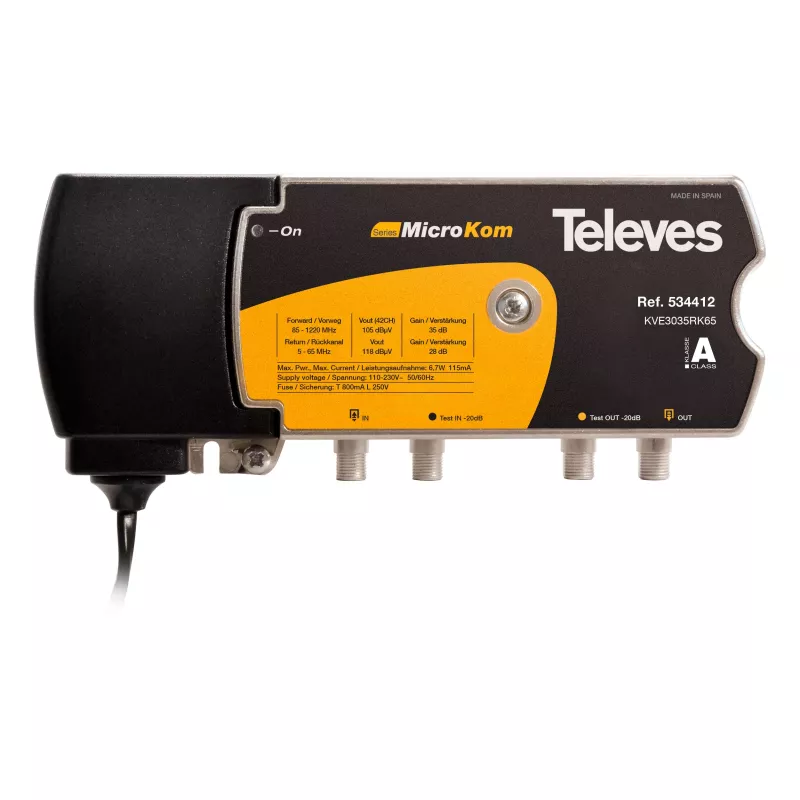

Televes KVE3035RK65 Amplificador de Banda Larga CATV 30/35dB com Canal de Retorno 5-65MHz 28dB (534412)

CATV broadband amplifier for house connection, delivering selectable 30dB or 35dB forward path gain and a 28dB return path gain for reliable signal distribution in cable TV networks.

Advantages

Adjustable forward path attenuation (0-20dB) and equalization (0-18dB) allow precise signal balancing. Return path attenuation is also adjustable (0-20dB), ensuring optimal upstream performance. Built-in test points (-20dB) facilitate easy installation and troubleshooting.

Suitable for

• House connection amplification in CATV networks
• Distribution of TV and data signals over coaxial cable
• Installations requiring return path for interactive services

Key specifications

• Forward path frequency range: 85-1006 MHz
• Return path frequency range: 5-65 MHz
• Forward path gain: 30dB or 35dB (selectable)
• Return path gain: 28dB (adjustable)
• Max output level: 105dBµV (35dB gain), 100dBµV (30dB gain) with CENELEC 42 channels
• Noise figure: <7dB
• Impedance: 75 Ohm
• Connectors: F-type
• Power supply: 230V AC, 50/60Hz, 7.5W consumption
• Housing: die-cast metal

Recommendations

Ideal for professional installers needing a robust, adjustable amplifier for residential CATV connections with return path support.
