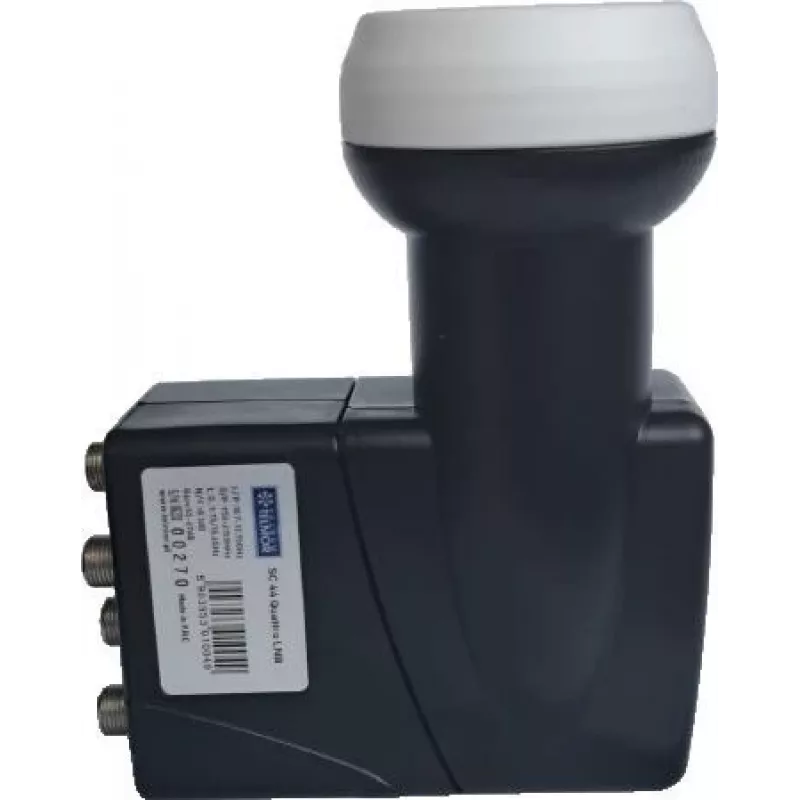

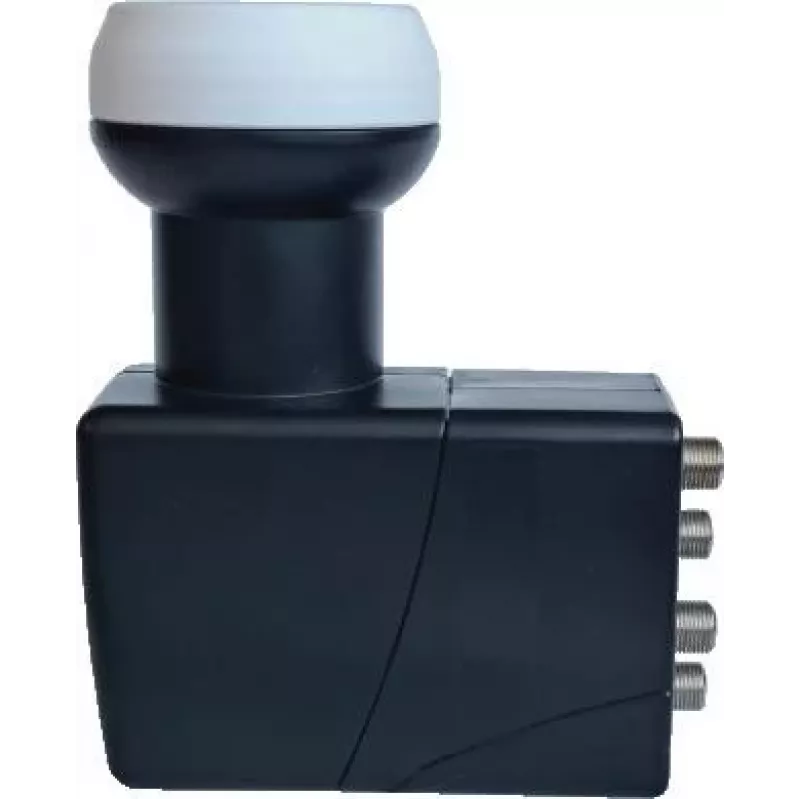

Telmor Quattro SC-44 Conversor LNB

The Telmor Quattro SC-44 LNB Converter is a high-performance satellite LNB designed for multi-switch systems. It converts satellite signals into four separate outputs for vertical high, vertical low, horizontal high, and horizontal low polarizations, enabling distribution to multiple receivers.

Advantages

Low noise figure of 0.1 dB ensures excellent signal quality. Weather-resistant design with sliding connector cover for reliable outdoor use. Voltage and 22 kHz tone controlled switching for precise polarization and band selection.

Suitable for

• Multi-switch satellite installations
• Single cable distribution to multiple receivers
• Professional and residential satellite TV systems

Key specifications

• LNB Type: Quattro
• Input Frequency Range: 10.7 - 11.7 GHz (Low Band), 11.7 - 12.75 GHz (High Band)
• Output Frequency Range: 950 - 1950 MHz (Low Band), 1100 - 2150 MHz (High Band)
• Local Oscillator Frequency: 9.75 GHz (Low Band), 10.6 GHz (High Band)
• Noise Figure: 0.1 dB (typical)
• Conversion Gain: 50 - 65 dB
• Cross Polarization Isolation: > 20 dB
• Output Connectors: 4 x F-type
• Feedhorn Diameter: 40 mm
• Operating Temperature: -30°C to +60°C
• Current Consumption: 120 mA (max)
• Supply Voltage: 11.5 - 14 V DC (Vertical), 16 - 19 V DC (Horizontal)

Recommendations

Ideal for expanding satellite TV systems with multiple receivers. Ensure compatibility with your multi-switch and dish setup.
