Tenda TFC300B Conversor de media Gigabit WDM, SM, Tx 1310nm, Rx 1550nm, 1x SC (UPC), 1x GLAN, 3 km

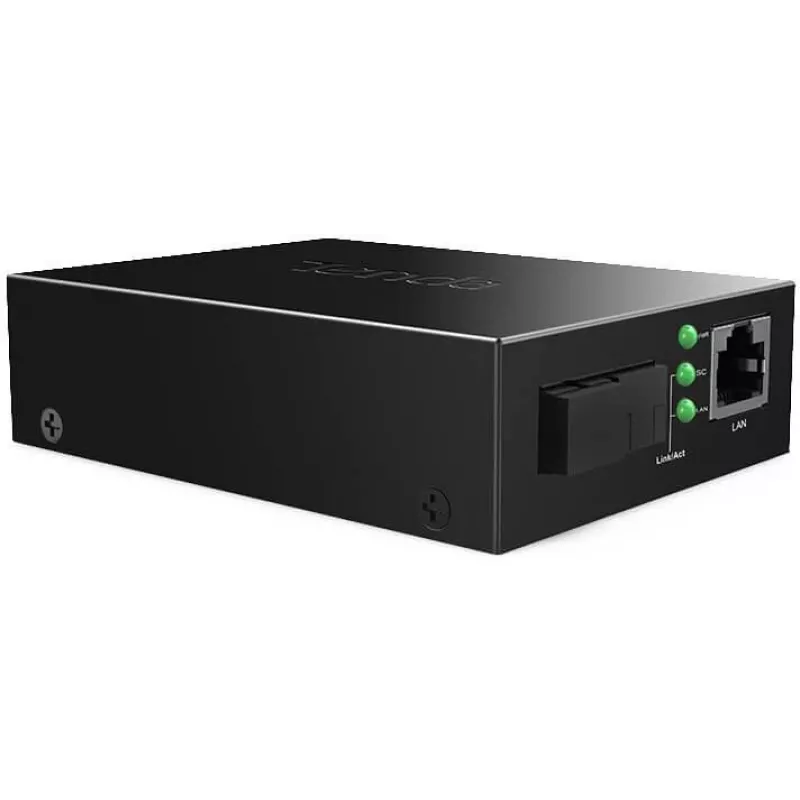

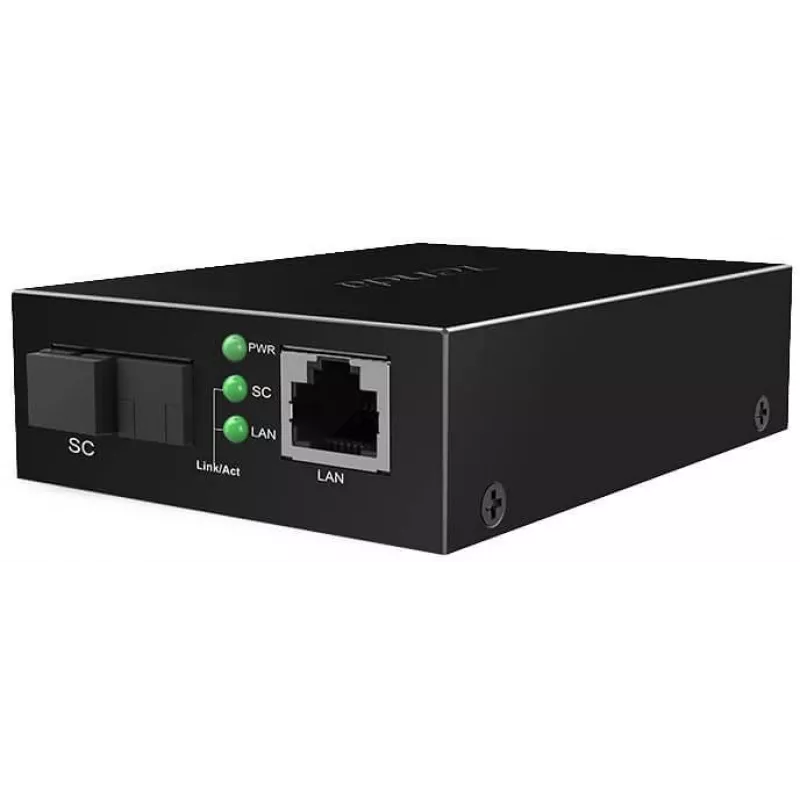

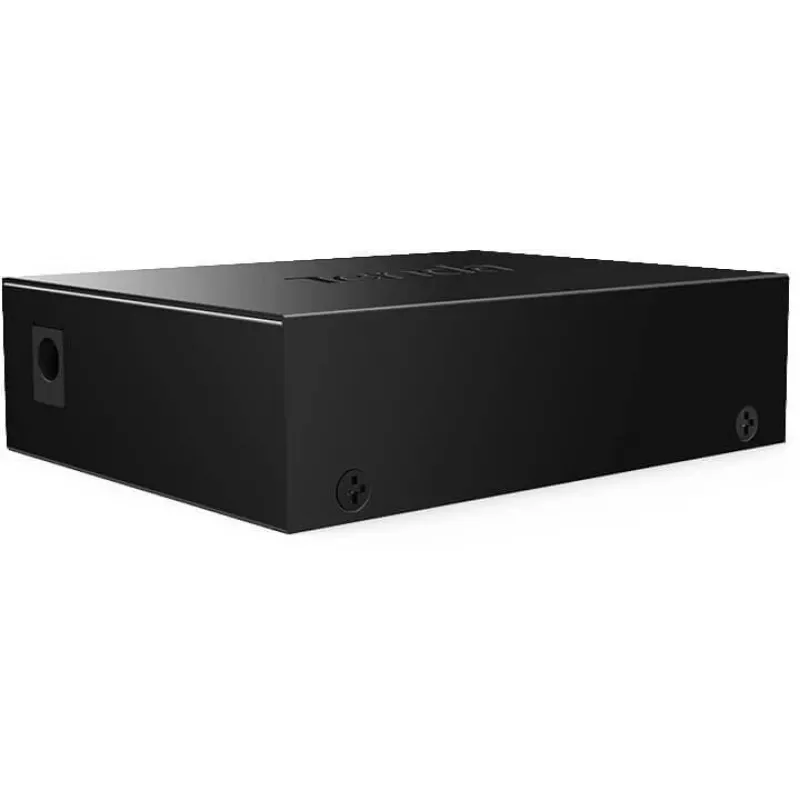

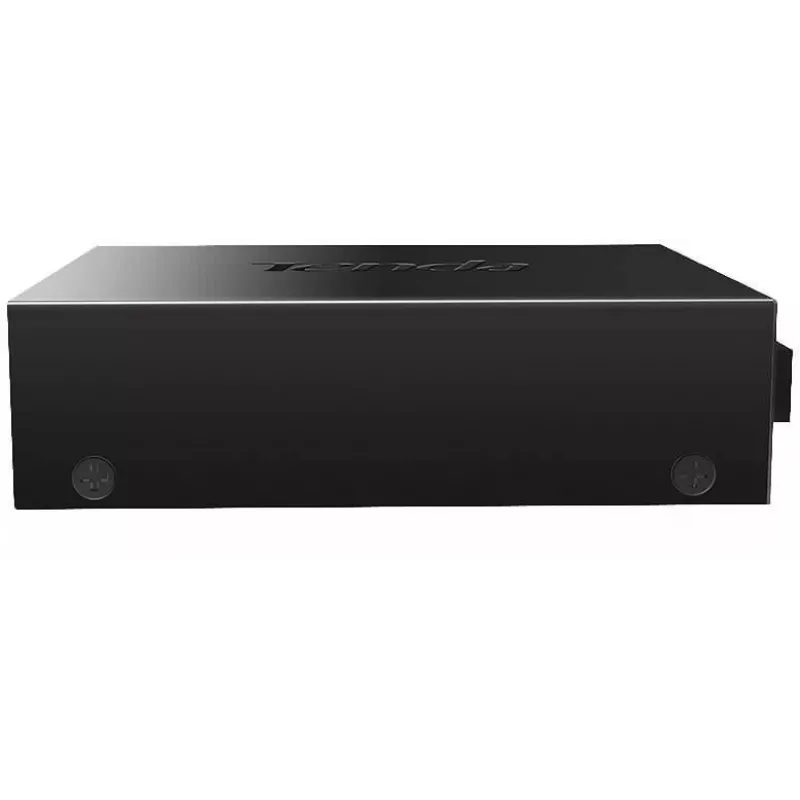

The Tenda TFC300B is a high-performance Gigabit Media Converter designed for long-distance fiber optic communication. It supports WDM (Wavelength Division Multiplexing) technology, enabling bi-directional data transmission over a single fiber strand. With single-mode fiber and a transmission distance of up to 3 km, this converter is ideal for extending network reach in enterprise, campus, or industrial environments.

Advantages

Reliable and cost-effective solution for converting between Gigabit Ethernet (RJ45) and fiber optic (SC) interfaces. The WDM technology reduces fiber usage by half, lowering infrastructure costs. Metal housing ensures durability and effective heat dissipation. Plug-and-play installation with no configuration required.

Suitable for

• Extending network connections between buildings or across campuses
• Connecting remote surveillance cameras or access points
• Integrating fiber optic backbone with copper Ethernet devices
• Industrial and enterprise networks requiring stable long-distance links

Key specifications

• Product Type: Media Converter
• Ethernet Port: 1x RJ45 (10/100/1000 Mbps)
• Fiber Port: 1x SC (UPC) Single-Mode
• Wavelength: Tx 1310nm / Rx 1550nm (WDM)
• Max Distance: 3 km
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z
• Jumbo Frame Support: Up to 9K bytes
• Power Supply: External DC 5V/1A
• LED Indicators: PWR, FX Link/Act, TX Link/Act, FDX/COL, 1000, 100
• Operating Temperature: 0°C to 40°C
• Housing: Metal

Recommendations

For optimal performance, use with single-mode fiber patch cables (9/125 µm) and ensure proper cleaning of SC connectors. The converter is compatible with any standard Gigabit Ethernet switch or router.
