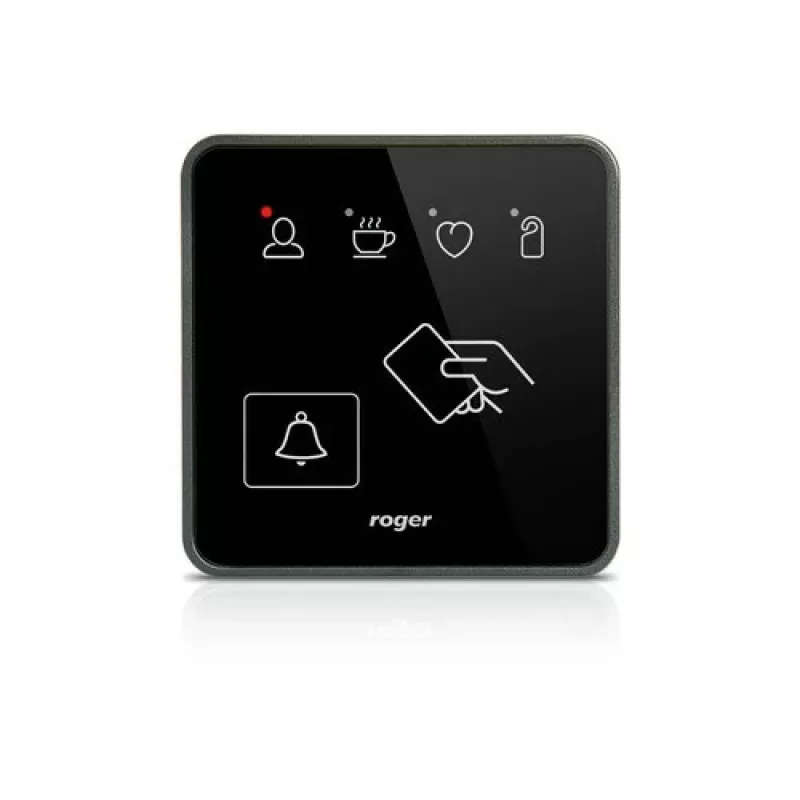

Terminal de acesso hoteleiro Roger MCT82M-IO-HR (montagem encastrada)

The Roger MCT82M-IO-HR is a flush-mounted hotel access terminal designed for modern hospitality environments. It integrates an RFID proximity reader, access controller, and I/O interfaces in a single unit, enabling secure and convenient room access, energy management, and staff signaling.

Advantages

Combines access control, door monitoring, and hotel-specific functions like 'Do Not Disturb' and 'Make Up Room' signaling. Flush-mounted design ensures a clean, professional look. Supports MIFARE and NFC credentials for broad compatibility.

Suitable for

• Hotel guest room access control
• Residential and commercial access points requiring flush-mount installation
• Integration with Roger RACS CLK/DTA bus systems

Key specifications

• Product Type: Hotel Access Terminal with Reader
• Mounting: Flush-mounted (in-wall)
• Reader Technology: RFID (13.56 MHz)
• Supported Cards: MIFARE Classic, DESFire, Plus, ISO/IEC 14443-4, NFC
• Communication: RS485 (Roger RACS CLK/DTA bus)
• Inputs: 2 (NO/NC)
• Outputs: 2 (Relay, 1.5A/30V DC)
• Power Supply: 10-15V DC
• Current Consumption: Max. 100 mA
• Operating Temperature: -25°C to +55°C
• IP Rating: IP20
• Event Buffer: 32,000 events
• User Capacity: Up to 4,000 (system dependent)
• Special Features: Hotel mode, door status monitoring, energy saving, DND/MUR signaling, tamper protection
• Indicators: Buzzer, multi-color LED

Recommendations

For optimal performance, use with Roger RACS system controllers and compatible MIFARE credentials. Ensure proper flush-mount installation for weather protection (IP20).
