Terminal de anel Cimco 180490 para cabo até 95 mm², diâmetro do furo 10,5 mm

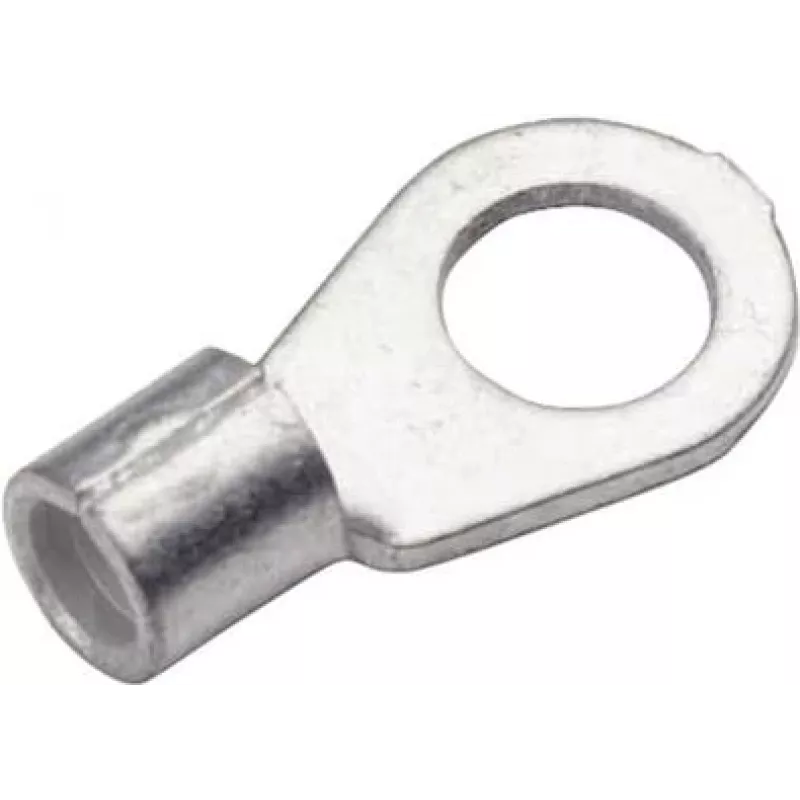

Ring terminal cimco 180490 for cable up to 95 mm², hole Ø 10.5 mm is a crimp-type electrical connector designed to join large cross-section conductors to a stud or bolt. Manufactured for heavy-duty electrical connections, this ring terminal ensures low-resistance contact and stable mechanical fixation for installations that require reliable current transfer, such as battery terminals, grounding points and power distribution blocks.

Advantages

The ring terminal is constructed from conductive metal with a plated finish to minimize corrosion and maintain electrical conductivity over time. Its barrel accepts cables up to 95 mm², providing ample cross-sectional area for high-current circuits. The 10.5 mm mounting hole fits standard studs and bolts used in many electrical panels and automotive battery connections. The crimp-style barrel is compatible with appropriate crimping tools to form a secure, vibration-resistant termination.

Suitable for

• Battery terminals in vehicles and stationary battery banks
• Grounding and earthing connections in electrical installations
• Power distribution buses and high-current terminal blocks
• Marine and industrial electrical systems requiring robust terminations

Key specifications

• Compatible conductor cross section: up to 95 mm²
• Mounting hole diameter: 10.5 mm (Ø)
• Termination style: crimp-type ring terminal
• Material: conductive metal with corrosion-resistant plating
• Suitable for high-current applications and heavy-duty connections

How to use

Strip the cable insulation to the appropriate length for the terminal barrel, ensuring no stray strands are present. Insert the conductor fully into the barrel and position the terminal on the intended stud or bolt. Use a suitable crimping tool rated for large cross-section terminals to compress the barrel uniformly until a firm mechanical and electrical connection is achieved. After crimping, verify the connection by gently tugging the conductor and confirming electrical continuity with a multimeter if required. Mount the ring over the stud or bolt and secure with the appropriate washer and nut tightened to the installation's specified torque.

Recommendations

For reliable long-term performance, use a correctly sized crimping tool and follow recommended crimp profiles for large conductors. Apply anti-corrosion compound on the connection in harsh environments and periodically inspect terminals for tightness and signs of corrosion or overheating.
