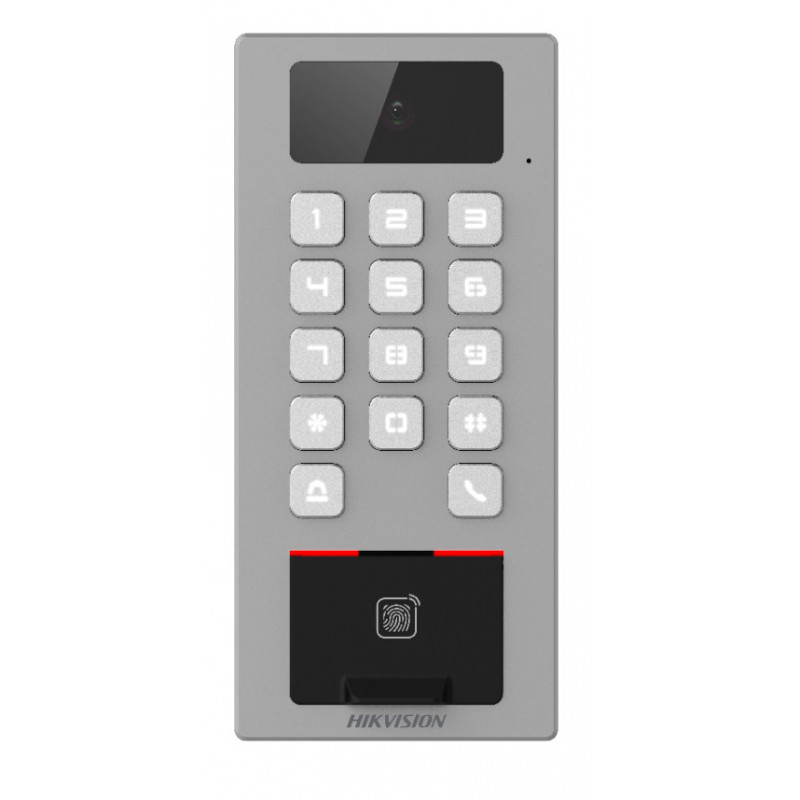

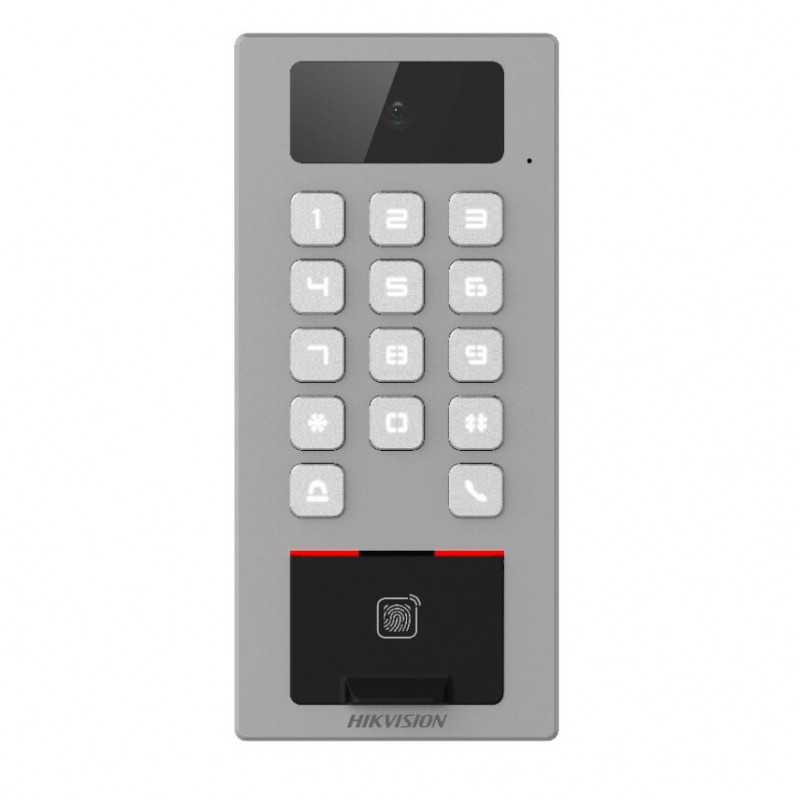

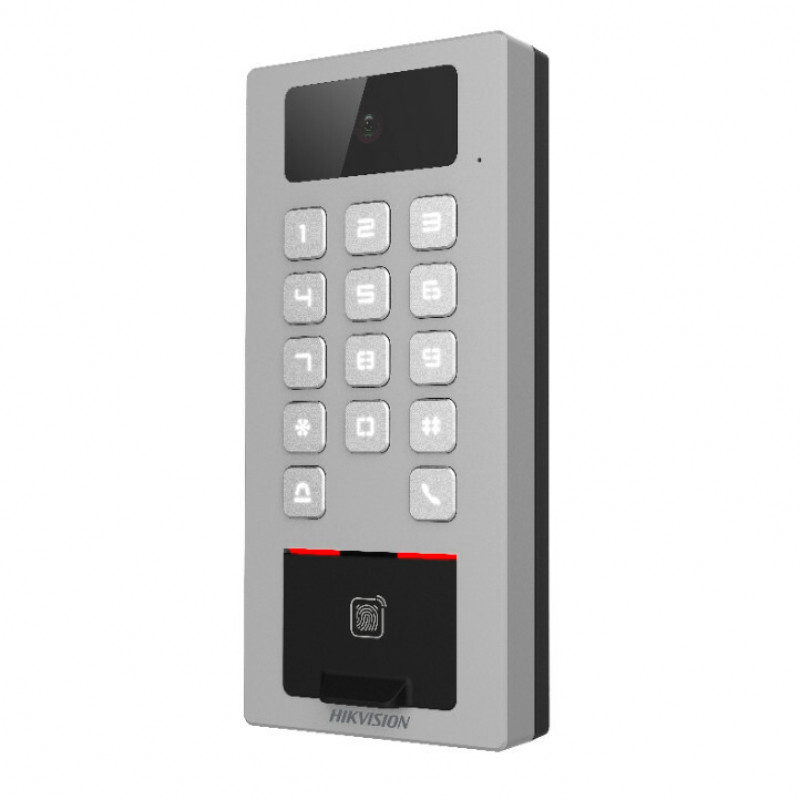

Terminal de controlo de acessos Hikvision DS-K1T502DBFWX-C

The Hikvision DS-K1T502DBFWX-C is a versatile access control terminal that combines fingerprint recognition, card reading, and keypad entry. It features a 2 MP camera and supports multiple communication methods including TCP/IP, Wi-Fi, and Bluetooth. With a robust metal and plastic housing, it is designed for reliable operation in various environments.

Key features

• Fingerprint scanner and 13.56 MHz card reader
• 2 MP camera with 110° horizontal and 81° vertical viewing angles
• 12-button keypad (0-9, *, #) plus 2 function buttons
• TCP/IP, Wi-Fi, and Bluetooth communication
• Wiegand output protocol
• Built-in microphone and speaker
• MicroSD card slot
• IP65 and IK09 protection ratings

Specifications

• Brand: HIKVISION
• MPN: DS-K1T502DBFWX-C(STD)
• Product type: Access Control Terminal
• Power supply: 12 ~ 24 VDC
• Power consumption: ≤ 12W
• Camera: 2 MP
• Viewing angle: 110° horizontal, 81° vertical
• Protection degree: IK09, IP65
• Capacity: 100,000 cards and 10,000 fingerprints
• Event history: 300,000 events
• Operating frequency: 13.56 MHz
• Keypad: 12 buttons (0 to 9, *, #) and 2 function buttons
• Communication: TCP/IP; Wi-Fi; Bluetooth
• Supported protocols: Wiegand (output only)
• Card reading distance: up to 30 mm
• Input interface: 1 x exit button, 1 x door contact, 1 x tamper alarm, 1 x alarm input
• Output interface: 1 x lock relay, 1 x alarm output
• RS-485: Yes
• Audio: built-in microphone and speaker
• SD card slot: Yes
• Operating temperature: -40°C to 70°C
• Operating humidity: 10% to 90%
• Material: metal + plastic
• Weight: 0.65 kg

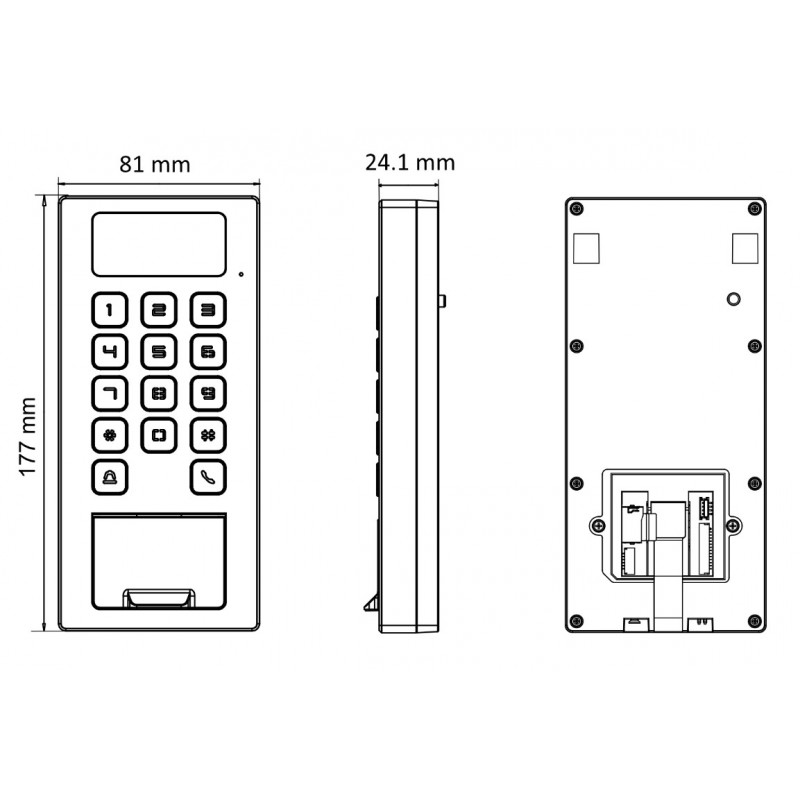

• Dimensions (H x W x D): 177 x 81 x 24.1 mm
