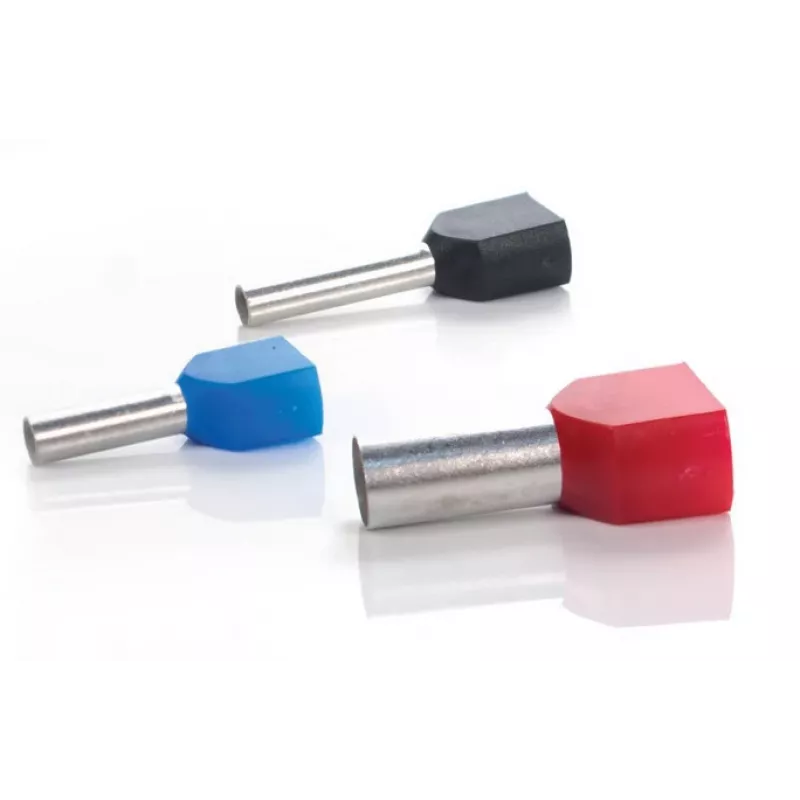

Terminal de extremidade duplo isolado TRYTYT DUID-2x1,5-8 vermelho 2 x 1,5 mm², 8 mm, 100 unid.

With a 600 V maximum voltage rating and a temperature range from -40°C to +105°C, this insulated twin ferrule is built for demanding electrical connections. The DUID-2x1,5-8 in red handles two 1.5 mm² stranded copper conductors in one reliable crimp, making it a go-to for control panels and terminal blocks.

Overview

The TRYTYT DUID-2x1,5-8 is a double insulated ferrule designed to terminate two stranded copper wires with a cross-section of 1.5 mm² each. The tin-plated electrolytic copper tube ensures low contact resistance and excellent corrosion protection, while the red polypropylene insulation provides clear identification and safe handling. With an 8 mm metal tube length and a total length of approximately 14.5 mm, it fits standard terminal blocks and offers a secure, vibration-resistant connection. Each pack contains 100 pieces, ideal for professional wiring projects.

What stands out

• Dual-wire design: accepts two 1.5 mm² stranded conductors in a single ferrule, saving space and simplifying wiring.
• High-quality materials: tin-plated electrolytic copper tube and halogen-free polypropylene insulation meet DIN 46228 Part 4 standards.
• Wide operating range: functions reliably from -40°C to +105°C, suitable for harsh environments.
• RoHS compliant and halogen-free: safe for use in sensitive applications and reduces toxic emissions in case of fire.
• Bulk packaging: 100 pieces per pack, economical for large installations.

Technical details

• Wire cross-section: 2 x 1.5 mm²
• Insulation colour: Red
• Metal tube length: 8 mm
• Total length: approx. 14.5 mm
• Insulation material: Polypropylene (PP), halogen-free
• Ferrule material: Electrolytic copper, tin-plated
• Max voltage rating: 600 V
• Operating temperature: -40°C to +105°C
• Standard: DIN 46228 Part 4
• Flammability rating: UL94 V-2
• RoHS compliant: Yes

Our verdict

Professional-grade twin ferrules that combine durability, safety, and convenience. The red insulation simplifies circuit identification, and the bulk pack keeps your workshop stocked. A solid choice for electricians and panel builders.
