Terminal de ponta isolado TRYTYT 2,5 mm² azul, pino 10 mm, 100 unid. | DUI-2,5-10NB

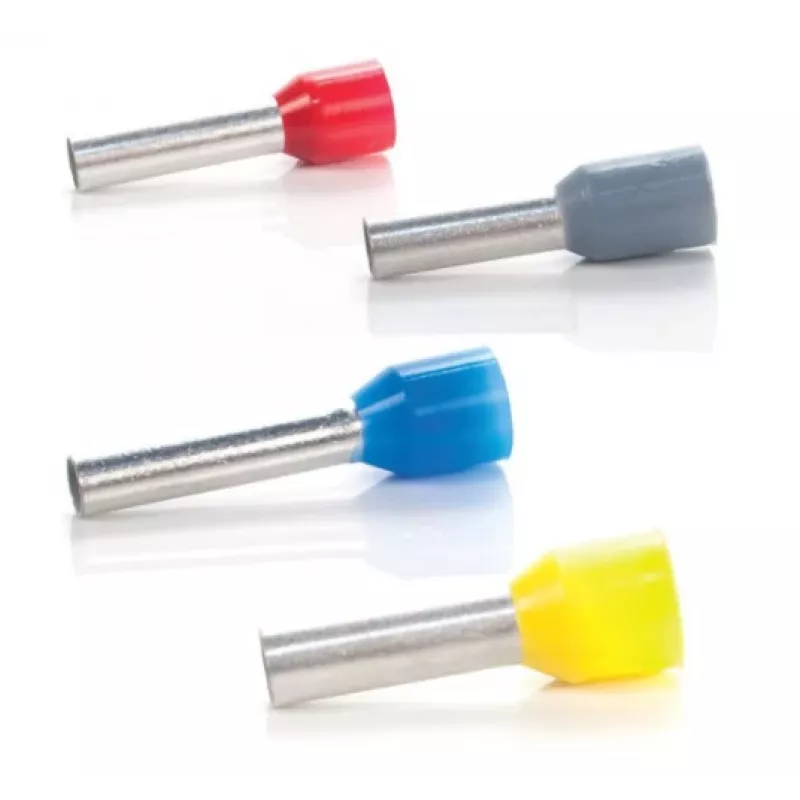

Electricians and panel builders terminating stranded copper conductors in industrial control cabinets rely on these insulated ferrules for secure, gas-tight connections. The TRYTYT DUI-2,5-10NB ferrule accepts a 2.5 mm² wire cross-section, with a 10 mm metal tube and a blue polypropylene insulation collar for easy identification and protection against contact with live parts. Each pack contains 100 pieces, ideal for production runs or maintenance kits.

Key specifications

• Wire cross-sectional area: 2.5 mm²
• Metal tube length: 10 mm
• Total length: approx. 15 mm
• Insulation colour: blue
• Ferrule material: electrolytic copper, tin-plated
• Insulation material: polypropylene (PP)
• Rated voltage: 600 V
• Temperature range: -40°C to +105°C
• Flammability rating: UL94 V-2
• Compliance: RoHS, CE
• Pack size: 100 pieces

Why choose it

These ferrules are manufactured from high-conductivity electrolytic copper with a tin plating that resists corrosion and ensures low contact resistance. The polypropylene collar provides reliable insulation and strain relief, while the blue colour coding follows DIN 46228 standards for 2.5 mm² conductors. They are compatible with square or hexagonal crimping tools, producing a uniform, compact connection that fits easily into terminal blocks.

Ideal use cases

• Terminating stranded wires in industrial control panels
• Building wiring in distribution boards and switchgear
• Automation systems and PLC connections
• Electrical installations in machinery and equipment

Good to know

For best results, use a crimping tool matched to the ferrule size. The insulation collar is designed to withstand the crimping process without splitting. Store in a dry environment to maintain plating integrity. These ferrules meet RoHS and CE requirements, making them suitable for use in the European market.
