Terminal tubular Cimco 187458 25 mm² não isolado estanhado 100 unid.

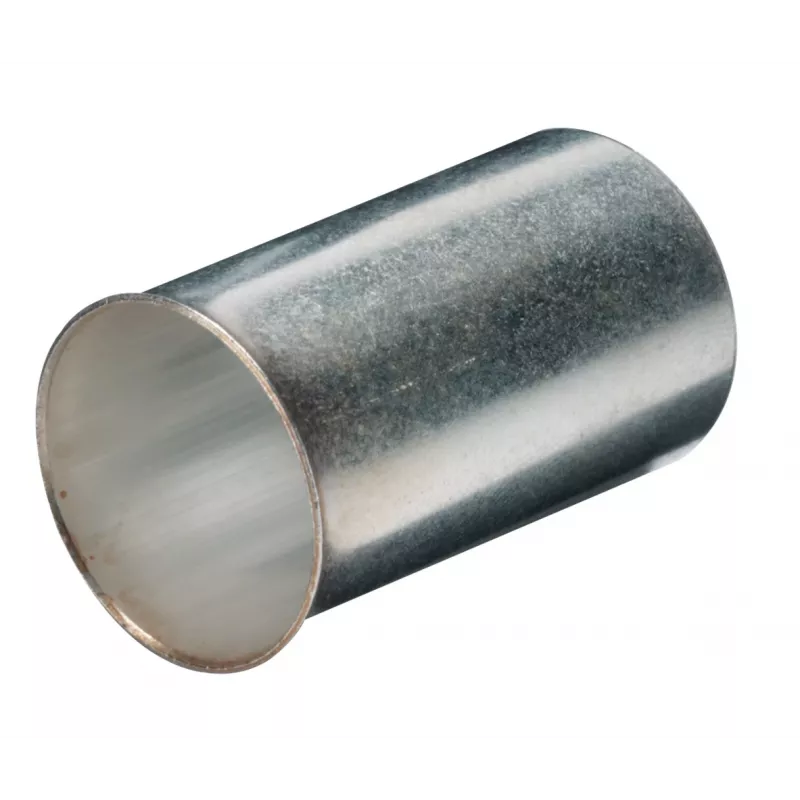

This Cimco wire end ferrule is uninsulated and tin-plated, designed for reliable crimp connections on fine-stranded copper conductors with a cross-section of 25 mm². Unlike standard ferrules, it offers a galvanic tin surface for enhanced corrosion resistance and low contact resistance.

Highlights

• Uninsulated sleeve for direct crimping
• Tin-plated electrolytic copper (E-Cu) for durability
• Conductor cross-section: 25 mm²
• Pack of 100 pieces
• Complies with DIN 46228 Part 1

In daily use

The ferrule is applied with standard crimping tools for ferrules. Its dimensions—20 mm overall length, 12 mm sleeve length, 7.3 mm inner diameter, 8.5 mm outer diameter—ensure a secure fit for 25 mm² conductors. Operating temperature range is -40 °C to +125 °C.

Full specifications

• Product type: Wire end ferrule
• Insulation: Uninsulated
• Conductor cross-section: 25 mm²
• Material: Electrolytic copper (E-Cu)
• Surface treatment: Tin-plated (galvanic)
• Colour: Metallic (tin)
• Pack quantity: 100 pieces
• Standard: DIN 46228 Part 1
• Connection method: Crimp
• Overall length (L): 20 mm
• Sleeve length (L2): 12 mm
• Inner diameter (d1): 7.3 mm
• Outer diameter (d2): 8.5 mm
• Max. operating temperature: +125 °C
• Min. operating temperature: -40 °C
• RoHS compliant: Yes
• Halogen-free: Yes
• Application: Termination of fine-stranded copper conductors
• Compatibility: Suitable for standard crimping tools for ferrules

Final note

A reliable choice for professional electrical installations requiring secure, corrosion-resistant terminations.
