Terminal tubular Cimco 187502 1 mm² parcialmente isolado vermelho 500 unid.

With a 1 mm² cross-section and a red polypropylene insulation collar, these Cimco wire end ferrules are built for fine-stranded copper conductors in control cabinets and switchgear. The tin-plated electrolytic copper body ensures reliable crimp connections, and the 500-piece pack keeps production running.

Overview

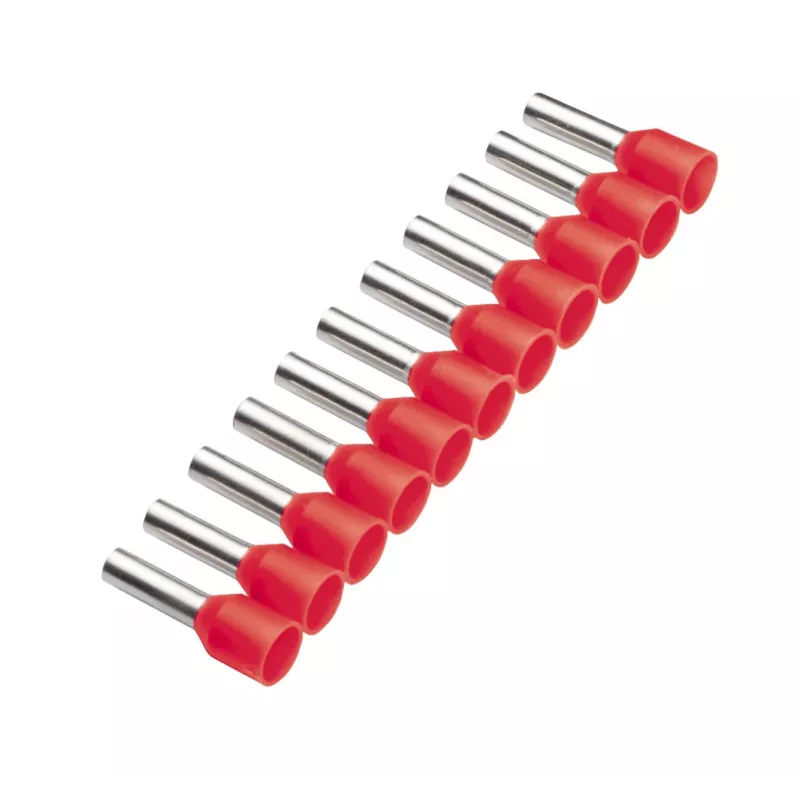

The Cimco 187502 is a partially insulated wire end ferrule with a 1 mm² conductor capacity. The ferrule barrel is made from electrolytic copper with a tin plating, while the insulation collar is red polypropylene. It complies with DIN 46228 Part 4 and is suitable for crimping fine-stranded copper conductors.

What stands out

• 500 pieces per pack for high-volume wiring tasks
• Red insulation collar for quick visual identification of 1 mm² size
• Tin-plated copper barrel for corrosion resistance and secure crimping
• Partially insulated design protects the conductor entry while allowing inspection

Technical details

• Ferrule length (L1): 8 mm
• Total length (L2): 14 mm
• Inner diameter (ferrule, D1): 1.5 mm
• Outer diameter (insulation, D2): 3.0 mm
• Insulation material: Polypropylene (PP)
• Temperature range: -40°C to +105°C
• Voltage rating: 600 V (UL) / 750 V (IEC)
• Flammability rating: UL 94 V-2

Our verdict

A dependable, standard-compliant ferrule for professional panel building and electrical wiring, offered in a practical bulk quantity.
