Termostato ambiente mecânico ALRE de montagem à superfície 5-30°C comutador aquecimento/arrefecimento RTBSB-001

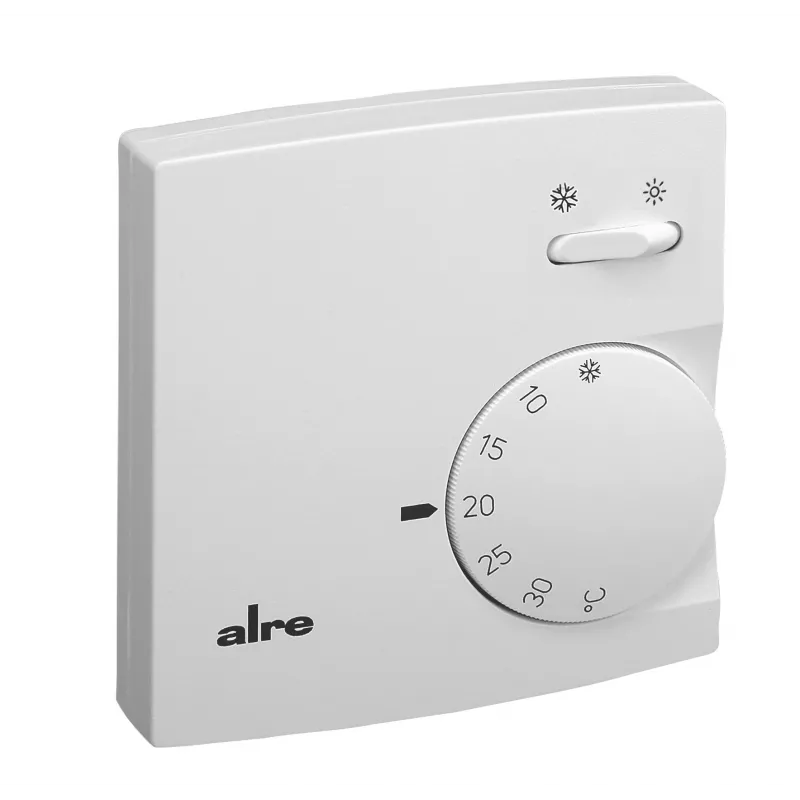

The ALRE RTBSB-001 is a mechanical room thermostat designed for surface-mounted installation, providing reliable temperature control for heating and cooling systems in residential and commercial environments. With a bimetal sensor and a clear temperature setting range from 5°C to 30°C, this thermostat offers simple and effective 2-point control.

Advantages

Robust mechanical design ensures long-lasting performance without the need for batteries or complex programming. The integrated heating/cooling selector switch and ON/OFF switch provide flexible operation. Easy to install with screw terminals and compatible with standard cables up to 2.5 mm².

Suitable for

• Residential heating and cooling systems
• Commercial HVAC control
• Surface-mounted installations (AP)
• Retrofit or new construction projects

Key specifications

• Operating Principle: Mechanical (Bimetal)
• Mounting Type: Surface-mounted (AP)
• Temperature Setting Range: 5°C to 30°C
• Switching Function: Heating/Cooling
• Contact Type: Changeover contact (SPDT)
• Switching Current: 10 A resistive, 4 A inductive
• Switching Voltage: 250 V AC
• Hysteresis: Approx. 0.5 K
• Protection Class: IP30
• Colour: Pure White (RAL 9010)
• Connection: Screw terminals
• Max. Cable Cross-Section: 2.5 mm²
• Conformity: CE

Recommendations

For optimal performance, ensure the thermostat is mounted away from direct sunlight, drafts, and heat sources. Suitable for use with standard heating/cooling systems. Professional installation recommended.
