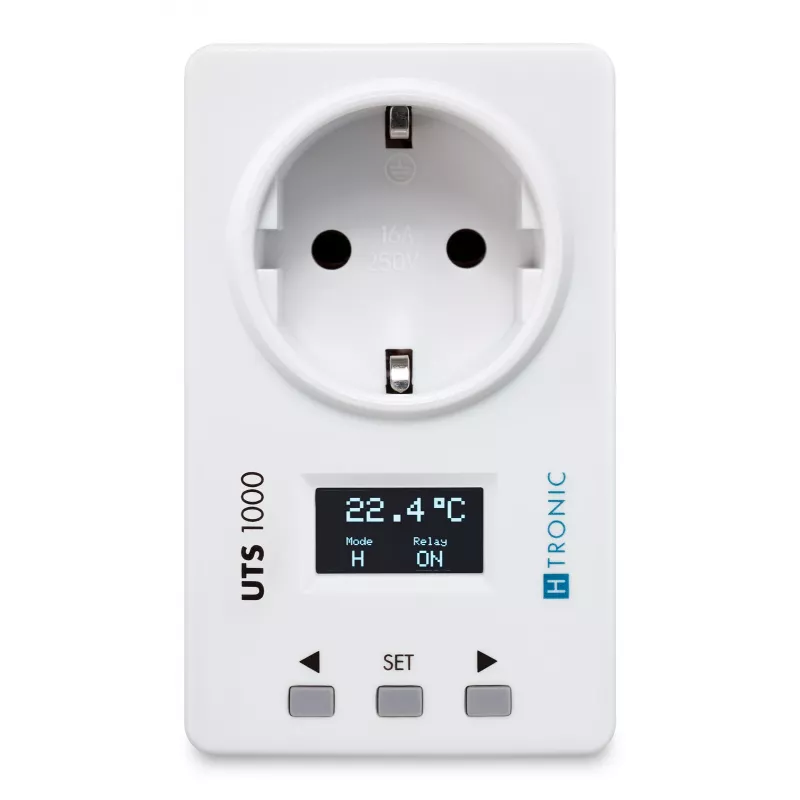

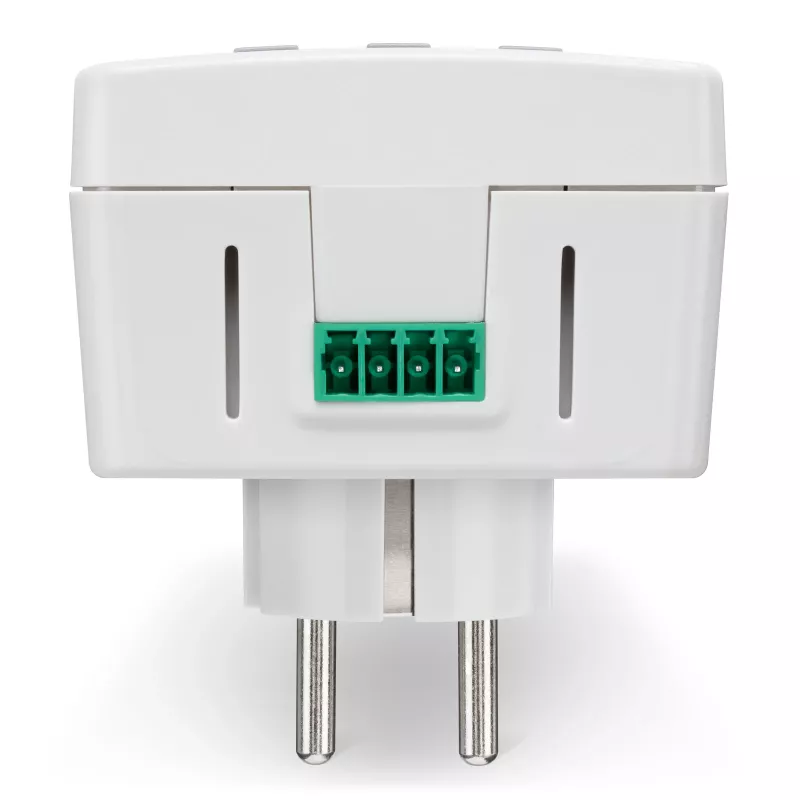

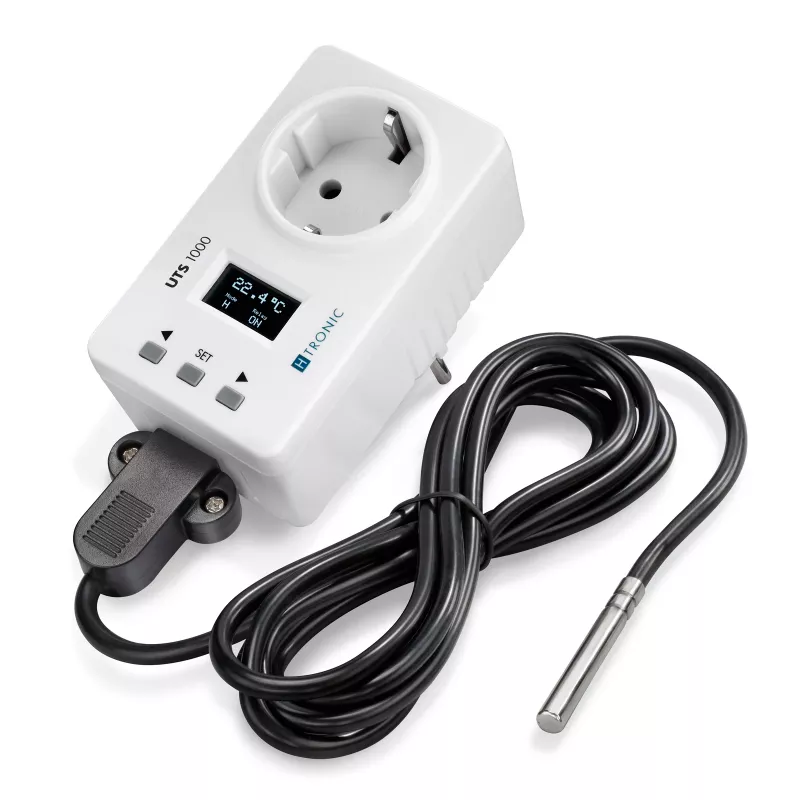

Termostato H-Tronic UTS1000 -99 a +850 °C 1114750

The H-Tronic UTS1000 is a precise temperature switch with a wide measurement range from -99 to +850 °C. It uses a K-type thermocouple sensor and offers a relay output for controlling heating or cooling systems, making it suitable for industrial monitoring, HVAC, and laboratory applications.

Advantages

Wide temperature range, selectable heating/cooling mode, adjustable hysteresis, and offset calibration ensure accurate and flexible control. The 3-digit LED display provides clear readings, and the panel-mount design integrates easily into control cabinets.

Suitable for

• Industrial temperature monitoring and control
• HVAC systems
• Laboratory equipment
• Process automation

Key specifications

• Temperature range: -99 to +850 °C
• Sensor: K-type thermocouple (NiCr-Ni)
• Operating voltage: 12 V/DC
• Relay output: 230 V/AC, 5 A (changeover)
• Display: 3-digit LED
• Resolution: 1 °C
• Accuracy: ±1% + 1 digit
• Control modes: heating or cooling
• Hysteresis: adjustable 1-99 °C
• Offset adjustment for sensor calibration
• Panel cut-out: approx. 68 x 33 mm
• Power consumption: < 50 mA
• Operating temperature: -10 to +50 °C

Recommendations

Ideal for precise temperature control in demanding environments where reliability and flexibility are essential.
