Testador de cabo de par entrançado Equip, RJ-11, RJ-12, RJ-45, teste de curto-circuito, teste de transmissão, Branco, TX/RX, CE, RoHS

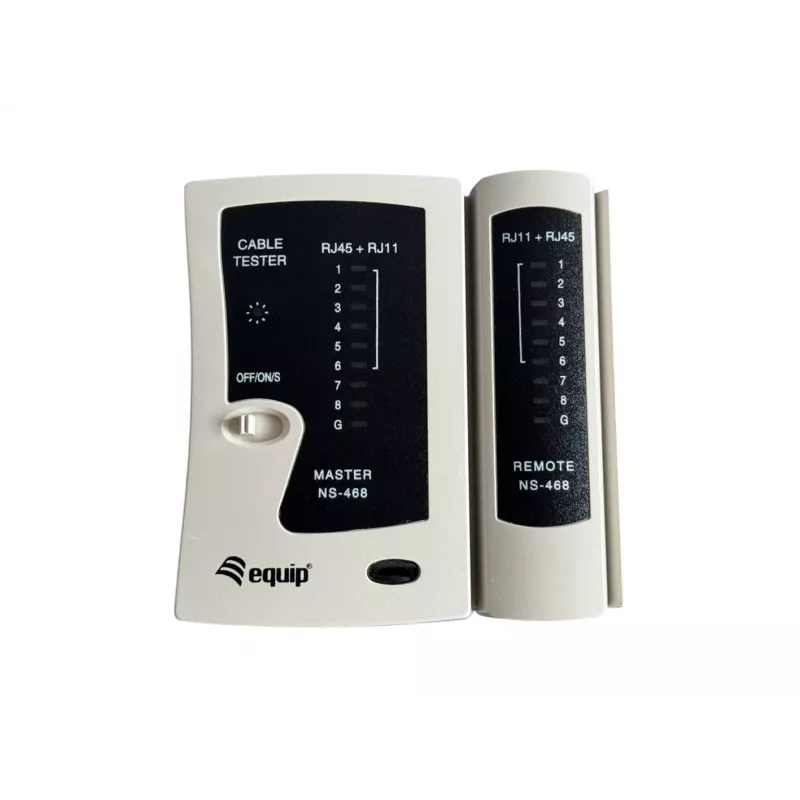

The Equip Twisted Pair Cable Tester is a professional handheld device designed for testing and diagnosing twisted pair cables (UTP/STP) with RJ-11, RJ-12, and RJ-45 connectors. It performs essential tests including open circuit, short circuit, mis-wire, cross-over, and ground checks, making it an indispensable tool for network installers and technicians. The tester features a detachable remote unit for one-person operation, LED indicators for clear pass/fail results, and supports cable lengths up to 300 meters. Powered by a 9V battery (not included), it is compact, lightweight, and built with durable ABS plastic in a white finish. Compliant with CE and RoHS standards.

Advantages

This cable tester offers reliable and quick verification of cable integrity, reducing troubleshooting time. Its auto-scan mode simplifies testing, while the low battery indicator ensures you are never caught off guard. The detachable remote unit allows efficient testing of installed cables without needing a second person.

Suitable for

• Network technicians and installers
• IT professionals maintaining structured cabling
• Home and office network setup
• Testing Ethernet, telephone, and other twisted pair cables

Key specifications

• Product Type: Cable Tester
• Supported Cable Types: Twisted Pair (UTP/STP)
• Supported Connectors: RJ-11, RJ-12, RJ-45
• Test Functions: Open Circuit, Short Circuit, Mis-wire, Cross-over, Ground
• Indicator Type: LED (9 LEDs)
• Power Source: 9V Battery (not included)
• Max Cable Length: Up to 300 meters
• Color: White
• Material: ABS Plastic
• Compliance: CE, RoHS
• Operating Temperature: 0 - 50 °C
• Storage Temperature: -10 - 60 °C
• Operating Humidity: 10 - 90% RH (non-condensing)
• Test Mode: Auto Scan
• Low Battery Indicator: Yes

Recommendations

For best results, use a fresh 9V alkaline battery. Always test cables before installation to ensure compliance with network standards. This tester is ideal for Cat5, Cat5e, Cat6, and telephone cables.
