Testador de cabos 5-em-1 Intellinet, testa 5 cabos de rede RJ45 e de computador comuns

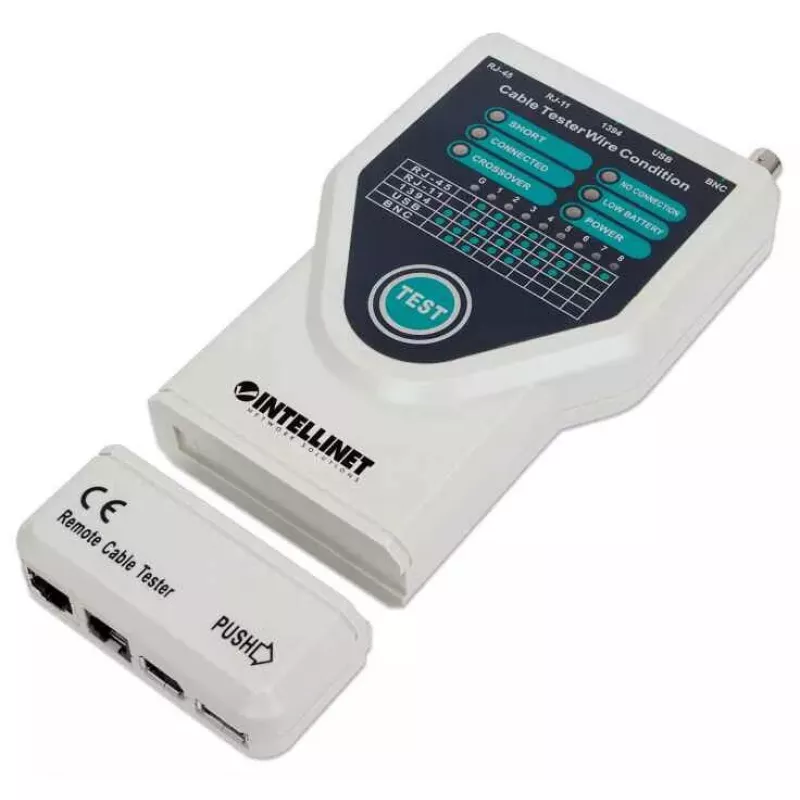

The Intellinet Network Solutions 5-in-1 Cable Tester (model 780094) is a compact handheld device for verifying common LAN and computer cable connections. It supports testing of Ethernet (RJ45), 10Base, RJ11, FireWire (1394) and USB cables up to 180 m (600 ft). The tester detects continuity, crossed pairs and short circuits, displaying results via LEDs for each wire and pin.

Advantages

This cable tester offers five cable type tests in a single affordable unit, is suitable for both shielded (STP) and unshielded (UTP) cables, and performs one-button testing with clear LED indicators. Its compact dimensions (31 × 185 × 100 mm) make it easy to carry and use in tight spaces.

Suitable for

• Network technicians checking Ethernet (RJ45) wiring
• Field engineers testing telephone (RJ11) or 10Base connections
• IT professionals verifying FireWire (1394) and USB cabling
• DIY users diagnosing continuity, crossover and shorts in cables

Key specifications

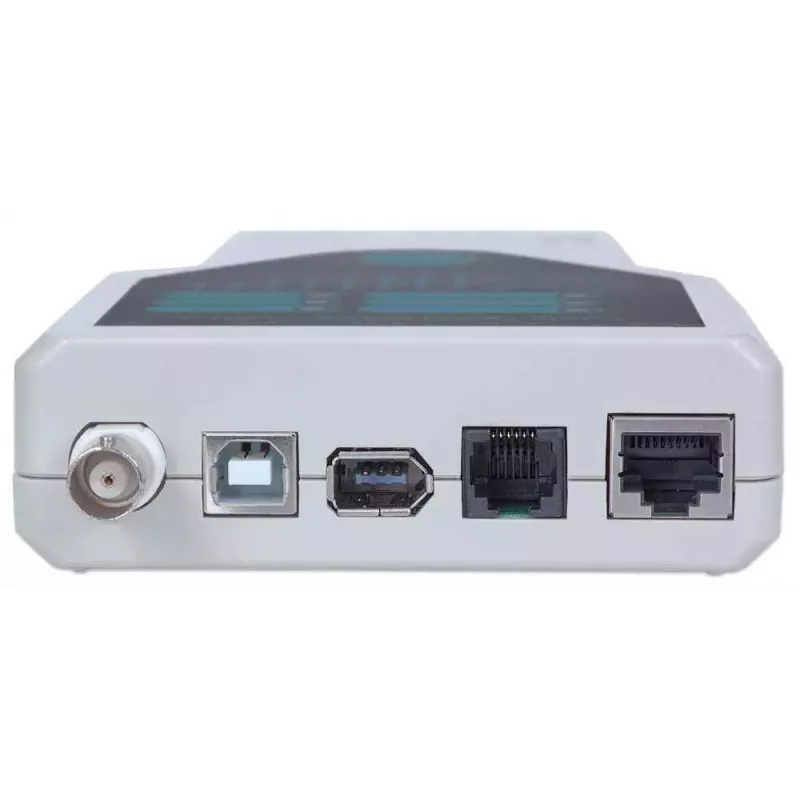

• Supported cable types: Ethernet (RJ45), 10Base, RJ11, FireWire (1394), USB
• Maximum test length: 180 m (600 ft)
• Supported cable shielding: STP and UTP
• Testing functions: continuity, crossover detection, short detection
• Dimensions: 31 mm (W) × 185 mm (D) × 100 mm (H)
• Model / MPN: 780094

How to use

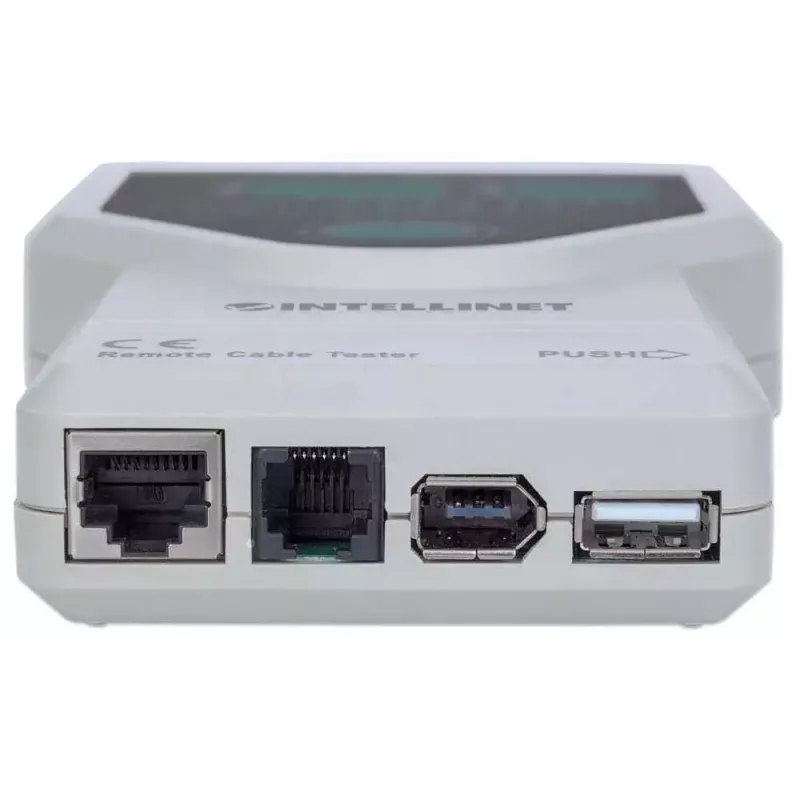

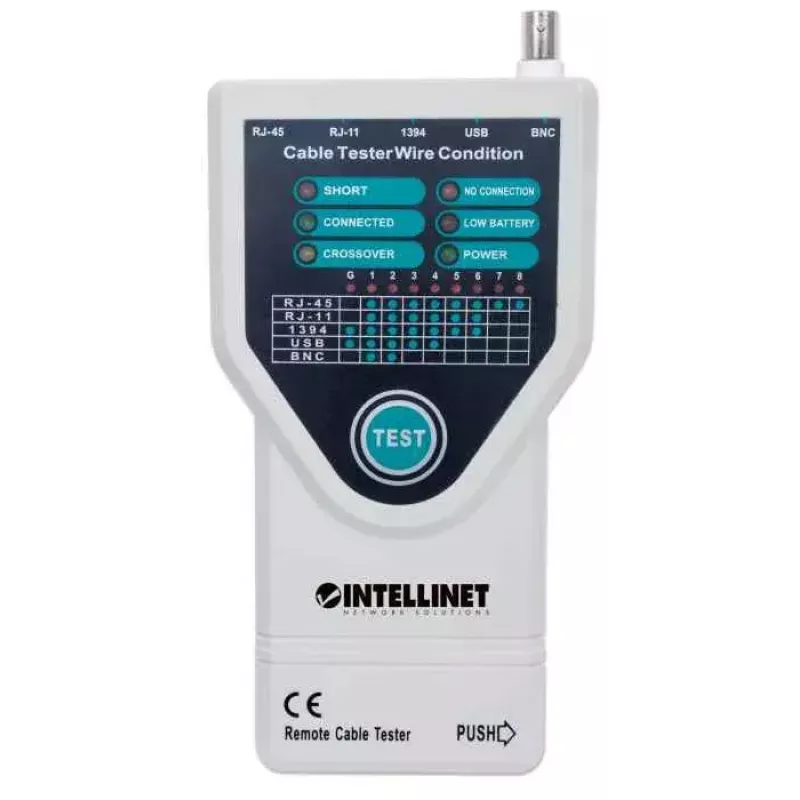

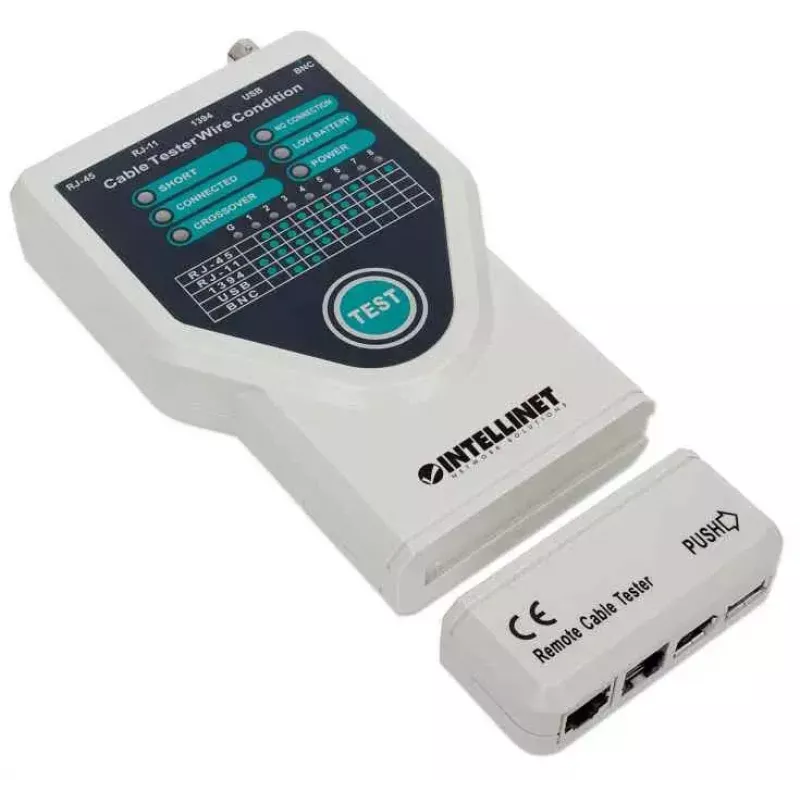

Connect one end of the cable to the main unit and the other end to the remote or appropriate port for the cable type being tested. Press the test button to start the automatic test sequence. Observe the LED indicators to determine continuity, crossed pairs or shorted wires; each LED corresponds to a wire or pin and lights according to the detected condition.

Recommendations

Use the tester on de-energized cables only. For longest cables (near 180 m / 600 ft), ensure connectors are fully seated and free of corrosion for reliable readings. Store the unit in a dry environment and replace batteries according to the manufacturer’s instructions to maintain consistent performance.
