Testador de cabos de rede Fluke MT-8200-60-KIT

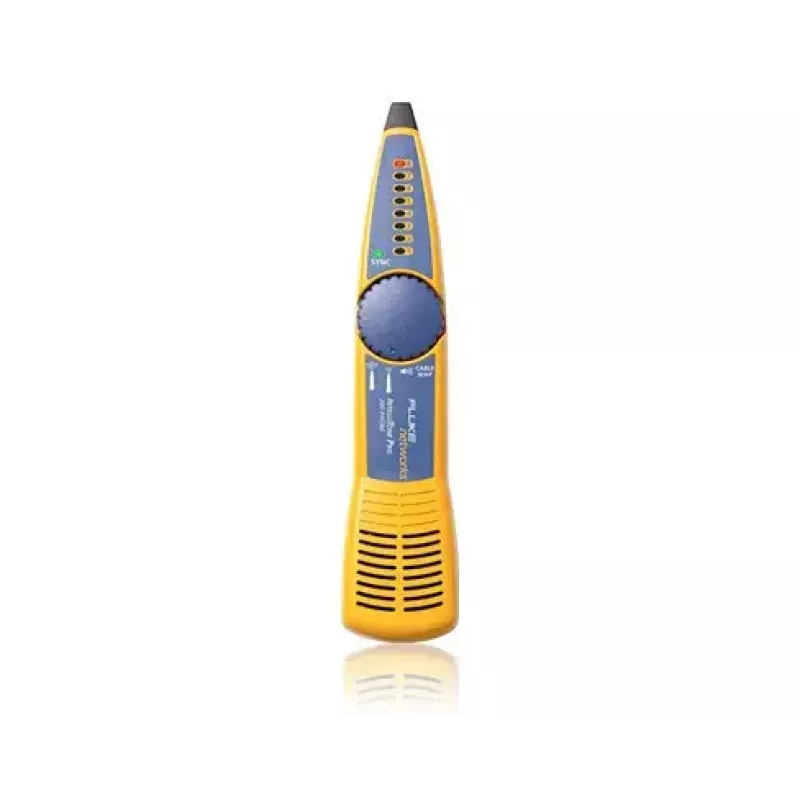

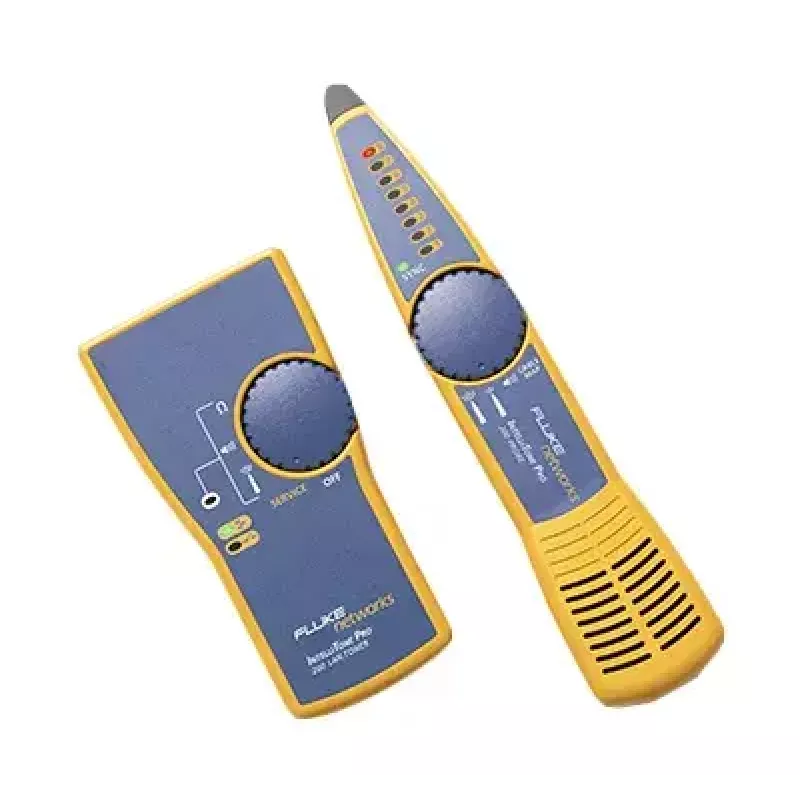

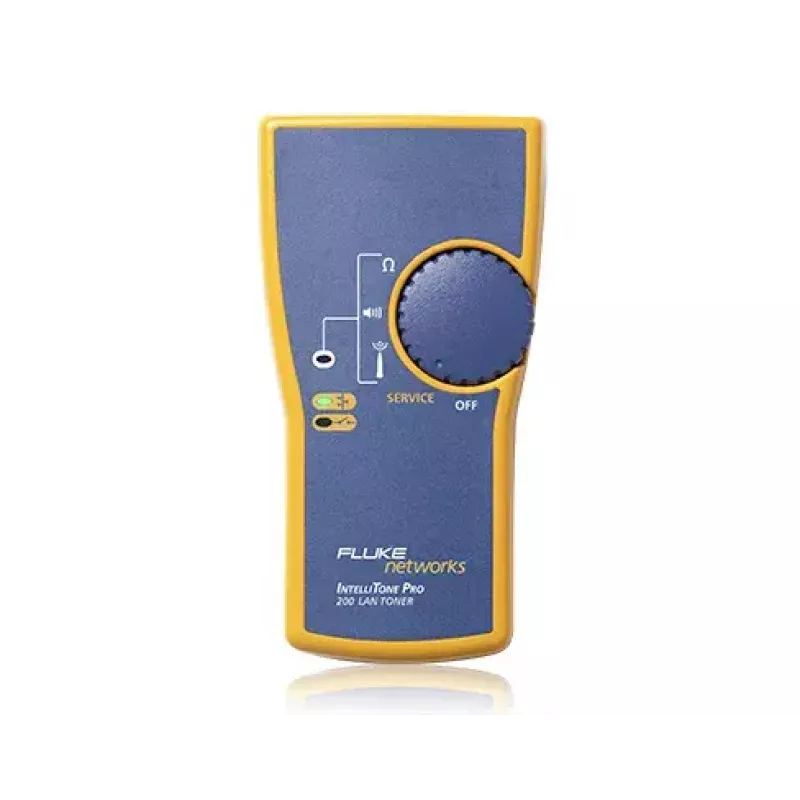

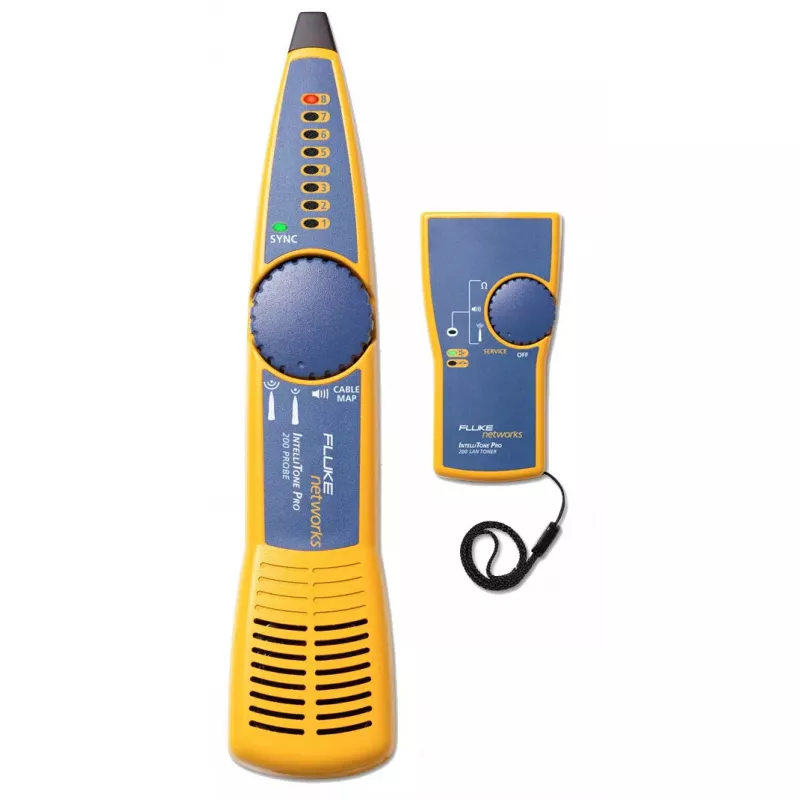

The Fluke MT-8200-60-KIT Network Cable Tester combines digital and analog toning technologies to trace and locate copper cabling in active and inactive networks. It uses IntelliTone digital toning to locate cables even when connected to switches and to verify continuity and wiring faults, and SmartTone analog toning to isolate individual wire pairs and trace voice, audio, and video cables.

Advantages

The tester provides dual-mode toning (digital and analog) in a single kit, enabling accurate cable identification on patch panels, switches, termination blocks, and within cable bundles. Digital mode rejects noise and false signals on active networks and offers a built-in CableMap function to confirm continuity and detect opens, shorts, and reversed pairs. Analog SmartTone reliably isolates individual pairs by changing tone cadence when a pair is shorted, useful for voice-grade and low-frequency cabling.

Suitable for

• Installing and identifying Ethernet (Cat5e/Cat6/Cat6a) cabling on active networks
• Tracing and isolating voice, audio, coax, and alarm/security wiring
• Locating terminated cables at patch panels, switches, or hidden in bundles
• Verifying per-pin wiring (TIA-568) and diagnosing opens, shorts, and reversed pairs

Key specifications

• Brand: FLUKE
• Model / MPN: MT-8200-60-KIT
• EAN: 0754082127444
• Toning modes: IntelliTone digital and SmartTone analog
• Cable types supported: Twisted-pair data (Cat3–Cat6a), coax, voice, security/alarm, speaker wiring
• CableMap feature: per-pin verification and fault detection (opens, shorts, reversed pairs)
• Operates on active networks and on disconnected cabling

How to use

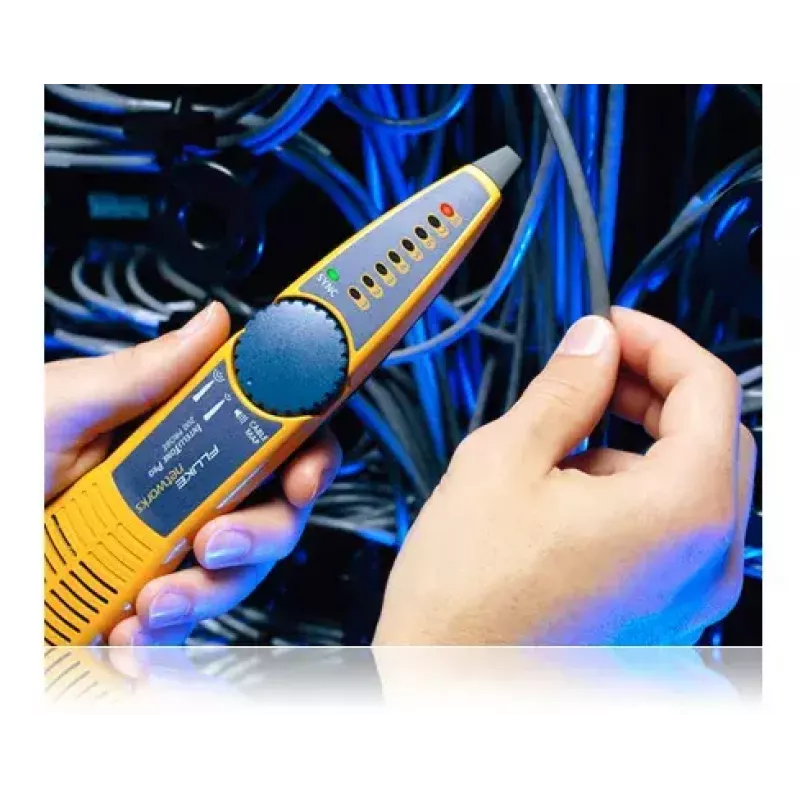

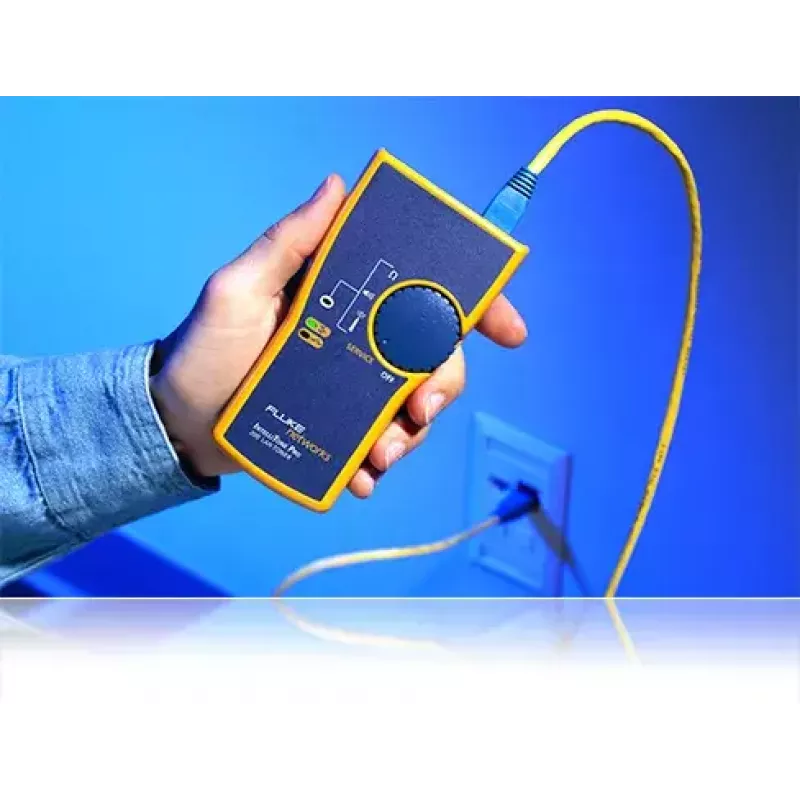

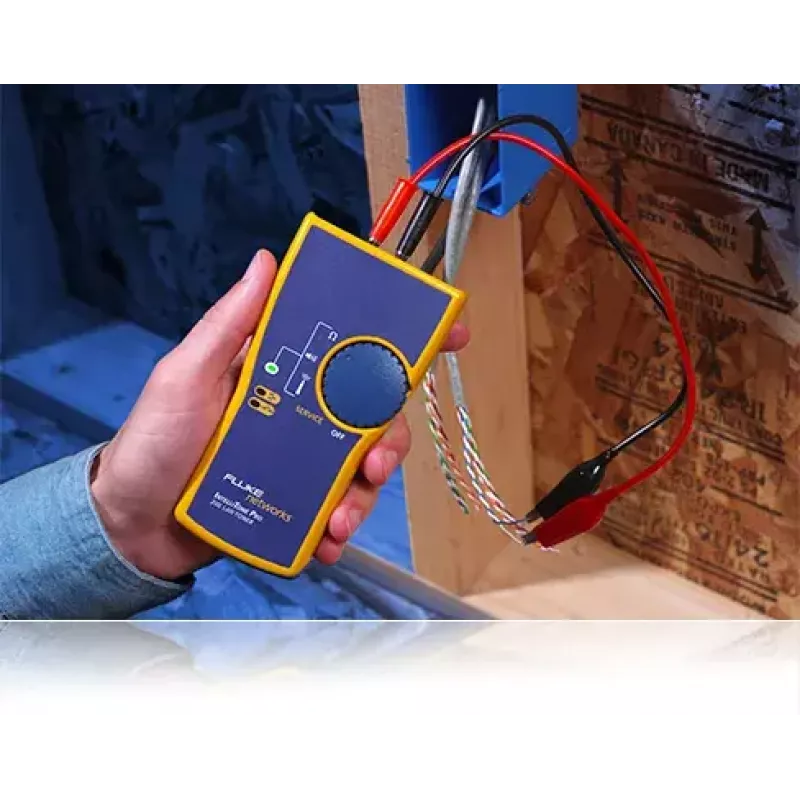

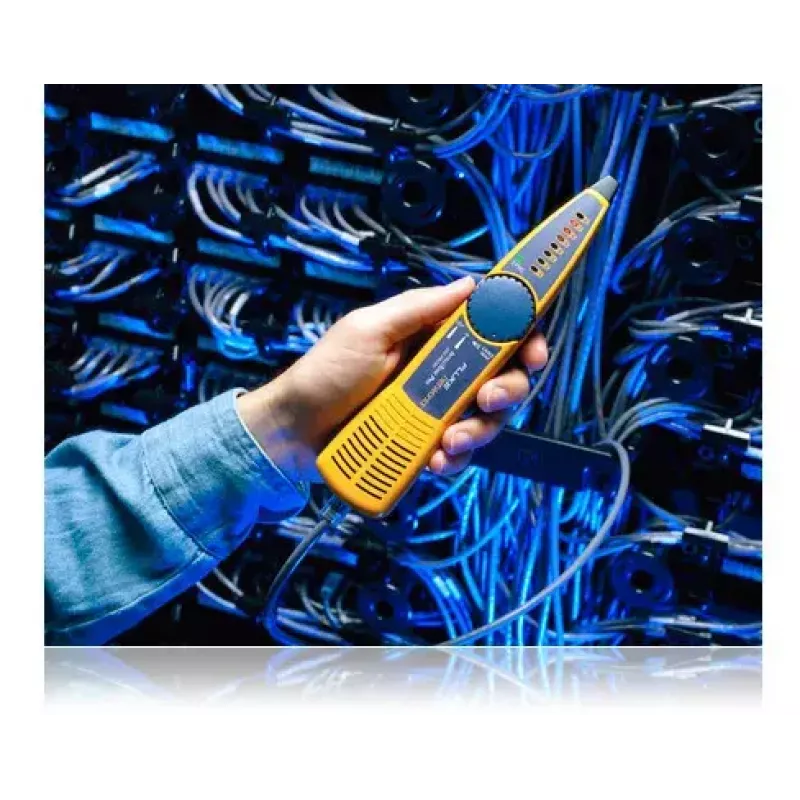

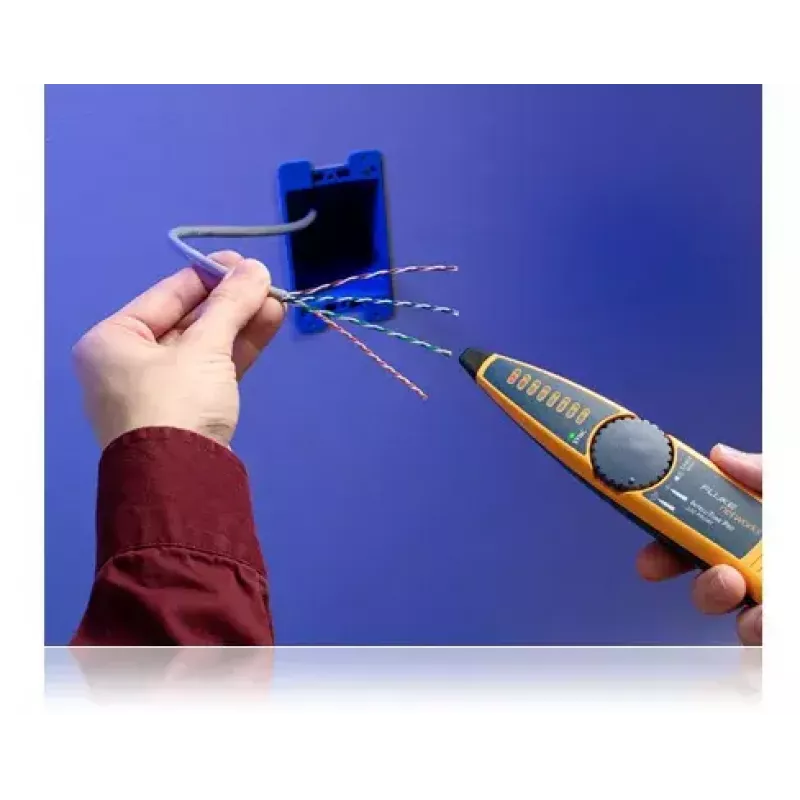

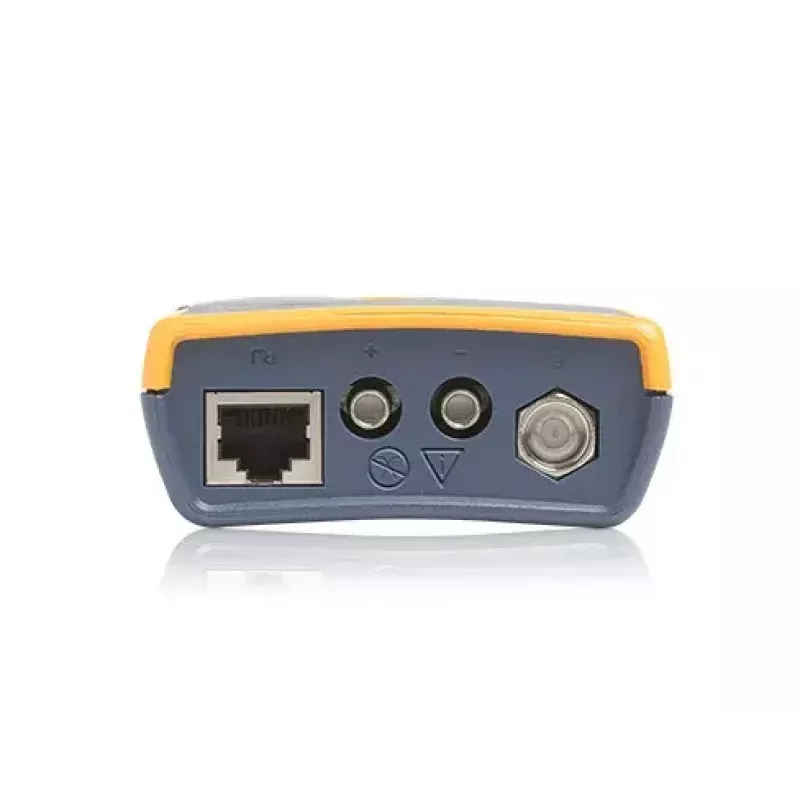

Connect the toner to the cable or jack under test and select digital or analog mode depending on cable type and environment. Use IntelliTone digital mode for high-grade Ethernet cabling and active network ports; the probe will audibly and visually identify the correct cable and can be plugged into patch panels or wall ports to run the CableMap test. Use SmartTone analog mode for voice-grade, coax, and low-frequency wiring, shorting the pair under test to confirm identification by a tone change. Interpret LED indications and audible tones to locate cables and detect faults.

Recommendations

Prefer digital (IntelliTone) mode when tracing Cat5e/Cat6/Cat6a on active networks or in high-interference areas. Use SmartTone analog for low-frequency cabling (Cat3, coax, speaker, alarm) and when individual pair isolation is required. Always verify connections with the CableMap feature before final termination and follow local safety procedures when testing live equipment.
