Testador de cabos, LogiLink WZ0010, aparelho de teste de cabos de rede

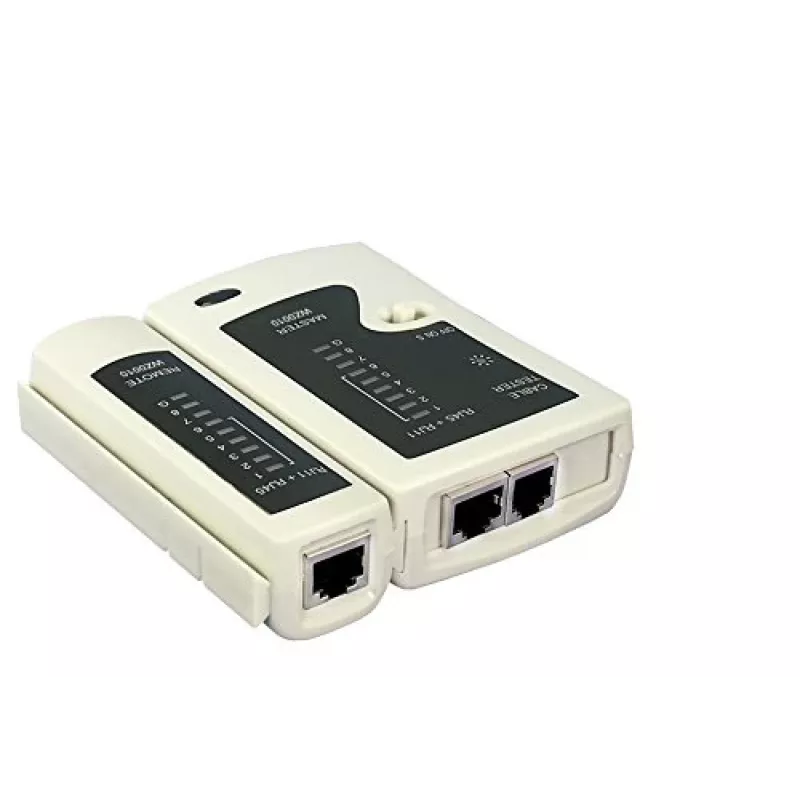

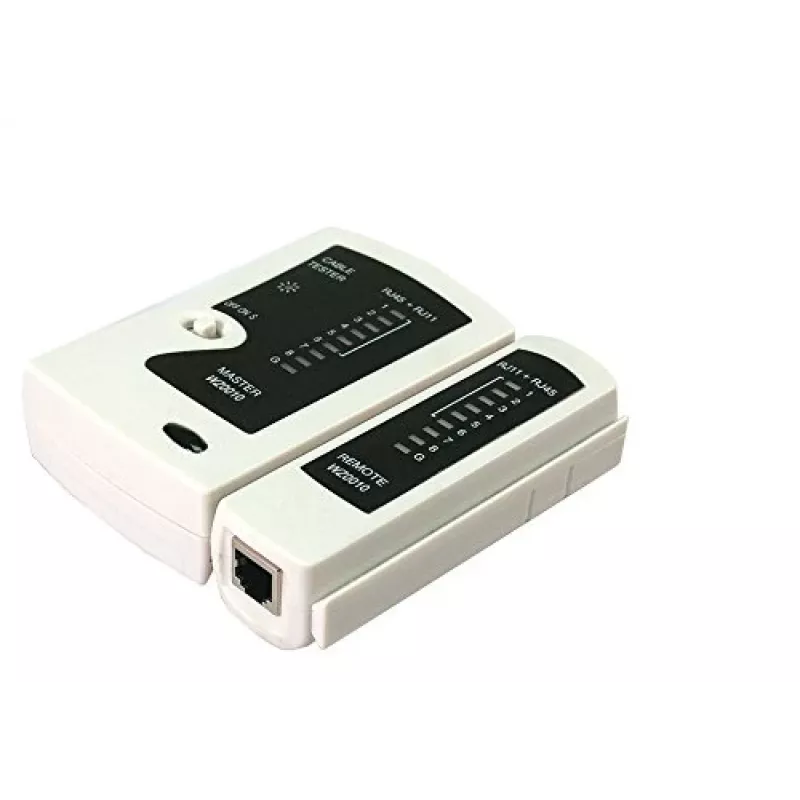

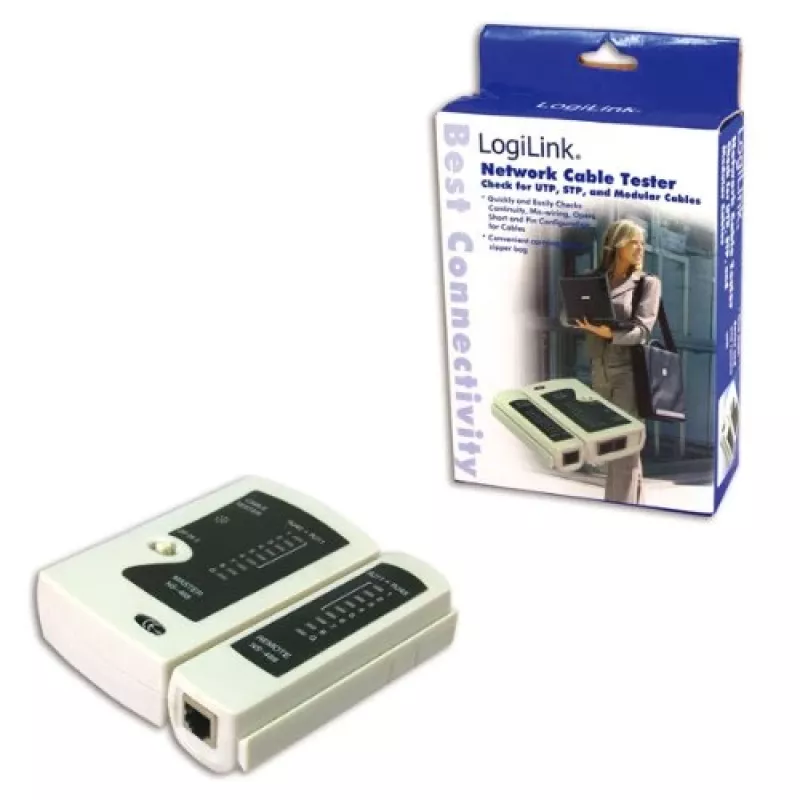

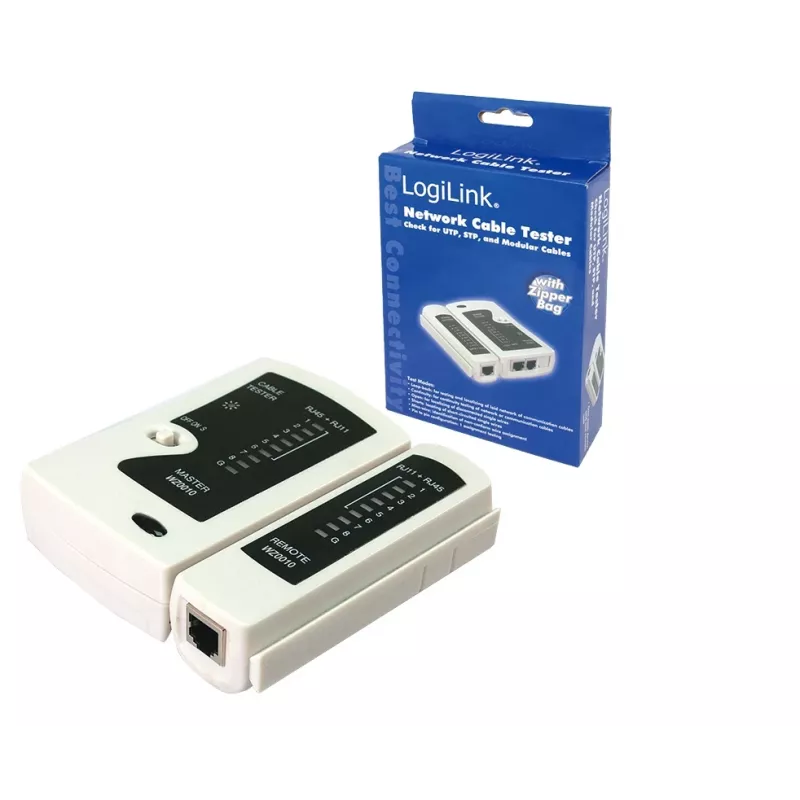

The LogiLink WZ0010 Cable Tester is a handheld network cable testing tool designed to verify continuity and wiring of RJ45 and RJ11 connections. The kit includes a main unit with two RJ45 female sockets and a remote unit with one RJ45 female socket, plus a black zipper bag for storage. The tester is battery-powered (requires one 9 V block battery, not included) and provides LED indicators to show test results for various cable conditions such as continuity, open wires, shorts, miswires and pin-to-pin assignments.

Advantages

The tester offers both autoscan and step-by-step testing modes to quickly identify cable faults. It supports loop-back testing for cable localization and provides clear LED status indicators for straightforward interpretation. Its compact design and included remote unit make it suitable for testing installed cables over distances, and the zipper bag improves portability and storage.

Suitable for

• Testing RJ45 network cables (Ethernet)
• Testing RJ11/RJ12 telephone cables
• Verifying cable continuity and locating breaks
• Detecting short circuits, open wires and miswires
• On-site network installation and maintenance tasks

Key specifications

• Supported connectors: RJ45, RJ11/RJ12
• Main unit: 2 x RJ45 female sockets
• Remote unit: 1 x RJ45 female socket
• Power: 1 x 9 V block battery (not included)
• Indication: multiple LEDs for status and wiring sequence
• Includes: black zipper bag

How to use

Connect one end of the cable to the main unit and the other end to the remote unit. Power the main unit with a 9 V battery, select autoscan or step-by-step mode and start the test. Observe the LED sequence to determine continuity, open or shorted wires, miswires, or correct pin-to-pin assignments. For installed cables, use the loop-back feature to localize the cable run and identify faults along the line.

Recommendations

Use a fresh 9 V battery for reliable results. Test cables with both ends accessible when possible, and avoid testing live telecommunication lines. Store the units in the included zipper bag to protect connectors and LEDs during transport.
