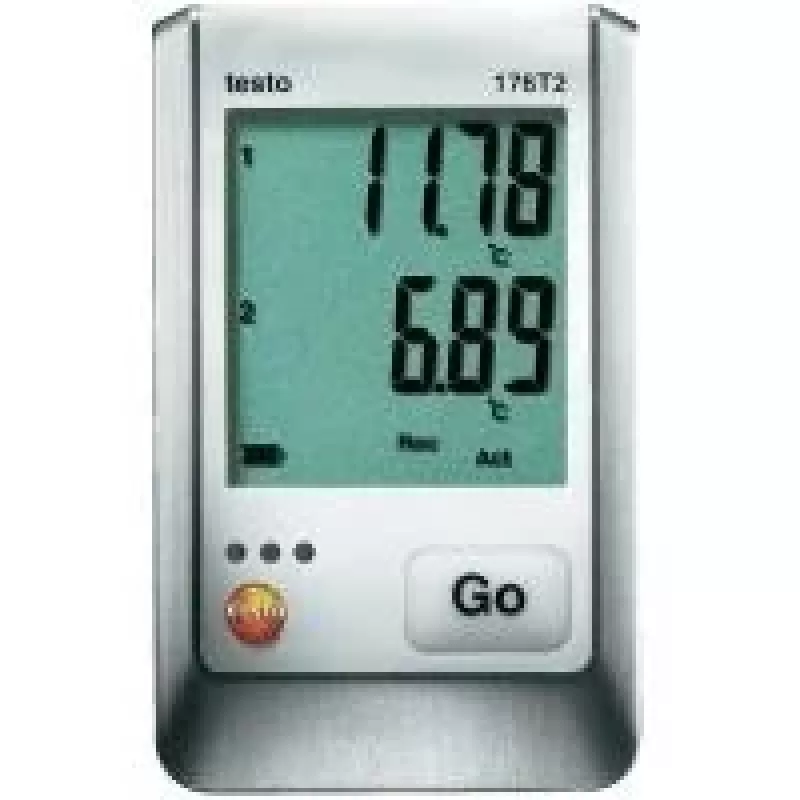

TESTO registador de dados de temperatura 176 T2 (0572 1762)

The TESTO 176 T2 stands out with its dual-channel capability for external Pt100 probes, allowing simultaneous measurement at two points with high precision. Unlike single-channel loggers, it offers a wide temperature range from -100 to +400 °C (probe-dependent) and a massive 2,000,000-value memory, making it suitable for long-term monitoring in demanding environments.

Highlights

• 2 channels for external Pt100 sensors (probes not included)
• Measurement range: -100 to +400 °C (depending on probe)
• High accuracy: ±0.2 °C (-100 to +200 °C), ±0.3 °C (+200.1 to +400 °C)
• Resolution: 0.01 °C
• Memory capacity: 2,000,000 measurement values
• Adjustable logging interval: 1 second to 24 hours
• Long battery life: up to 8 years (15 min cycle, +25 °C)
• Rugged metal housing with IP65 protection
• Large LCD display and visual alarm via LED
• Data transfer via Mini-USB or SD card

In daily use

Configure the logger with the free ComSoft Basic software, set your logging interval and alarm thresholds, then deploy it in the field. The clear display shows current readings and status, while the LED alerts you to any threshold breaches. When it's time to retrieve data, connect via USB or remove the SD card for quick transfer to a PC.

Full specifications

• Number of channels: 2
• Sensor type: External Pt100 (probes not included)
• Measurement range: -100 to +400 °C (depending on probe)
• Accuracy: ±0.2 °C (-100 to +200 °C), ±0.3 °C (+200.1 to +400 °C)
• Resolution: 0.01 °C
• Memory capacity: 2,000,000 measurement values
• Logging interval: 1 second to 24 hours (adjustable)
• Battery type: 1 x Lithium (TLH-5903), user replaceable
• Battery life: 8 years (at 15 min measurement cycle, +25 °C)
• Operating temperature: -35 to +70 °C
• Storage temperature: -40 to +85 °C
• Protection class: IP65
• Interface: Mini-USB, SD card slot
• Display: Large LCD
• Alarm function: Visual alarm via LED, configurable thresholds
• Housing material: Metal
• Software compatibility: ComSoft Basic (free), ComSoft Professional (optional)

Final note

The TESTO 176 T2 is a professional-grade temperature logger for applications requiring high accuracy, large memory, and dual-channel flexibility.
