TFA Dostmann TempLOG Registador de dados de temperatura descartável -30 a +60 °C, USB, IP67, 16.000 valores de medição 31.1062.02

Monitoring temperature-sensitive goods during transport or storage often requires a reliable, tamper-proof record that meets regulatory standards. The TFA Dostmann TempLOG single-use data logger provides a simple, cost-effective solution for cold chain verification without the need for software or configuration.

Who is it for

This logger is ideal for logistics providers, pharmaceutical distributors, food processors, and laboratory personnel who need to document temperature conditions during shipment or storage. It is particularly suited for one-way shipments where a receiver must quickly access a compliance report.

Main features

• Measures temperature from -30 to +60 °C with ±0.5 °C accuracy (-20 to +40 °C)
• Stores up to 16,000 readings with programmable logging intervals from 10 seconds to 24 hours
• Generates an automatic PDF report when connected via USB 2.0 – no software required
• Dust and waterproof (IP67) for harsh environments
• LED status indicators show run, alarm, and stop states
• Programmable high/low temperature alarm limits

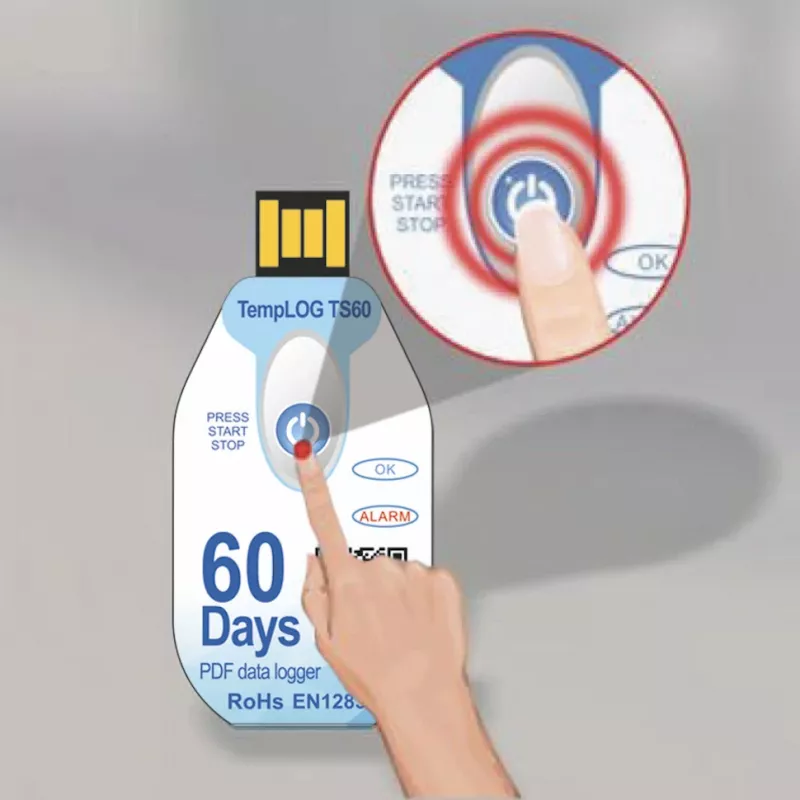

• Manual start button or programmable delay start
• Internal lithium battery lasts up to 1 year depending on logging interval
• Compliant with EN 12830 and HACCP requirements

Specifications

• Measurement parameter: Temperature
• Measurement range: -30 to +60 °C
• Accuracy: ±0.5 °C (-20 to +40 °C), ±1 °C elsewhere
• Resolution: 0.1 °C
• Logger type: Single-use (disposable)
• Memory capacity: 16,000 measurement values
• Logging interval: Programmable, 10 seconds to 24 hours
• Data output: Automatic PDF report
• Interface: USB 2.0
• Protection class: IP67
• Certifications: EN 12830, HACCP compliant
• Start function: Manual button press or programmable delay
• Alarm function: Programmable high/low temperature limits
• Battery type: Internal lithium (non-replaceable)
• Battery life: Up to 1 year (depending on logging interval)
• Display: LED status indicators (Run, Alarm, Stop)
• Software requirement: None for report generation
• Operating temperature (device): -30 to +60 °C

Tips

Place the logger in a representative location within the shipment, away from direct contact with cooling elements or heat sources. After the trip, simply plug it into any USB port to generate a PDF report for your records or to share with the receiver.
