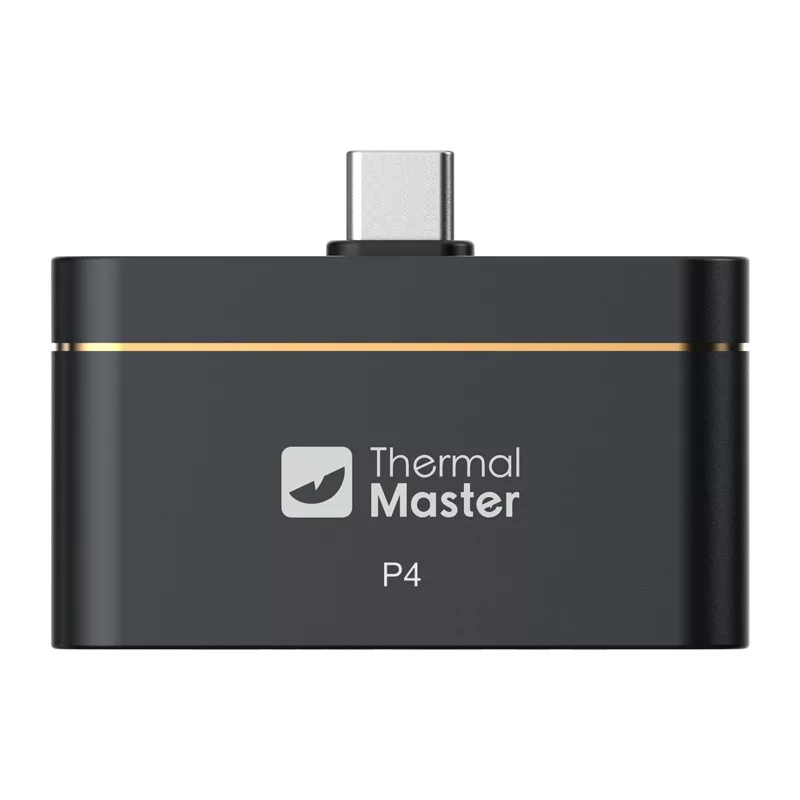

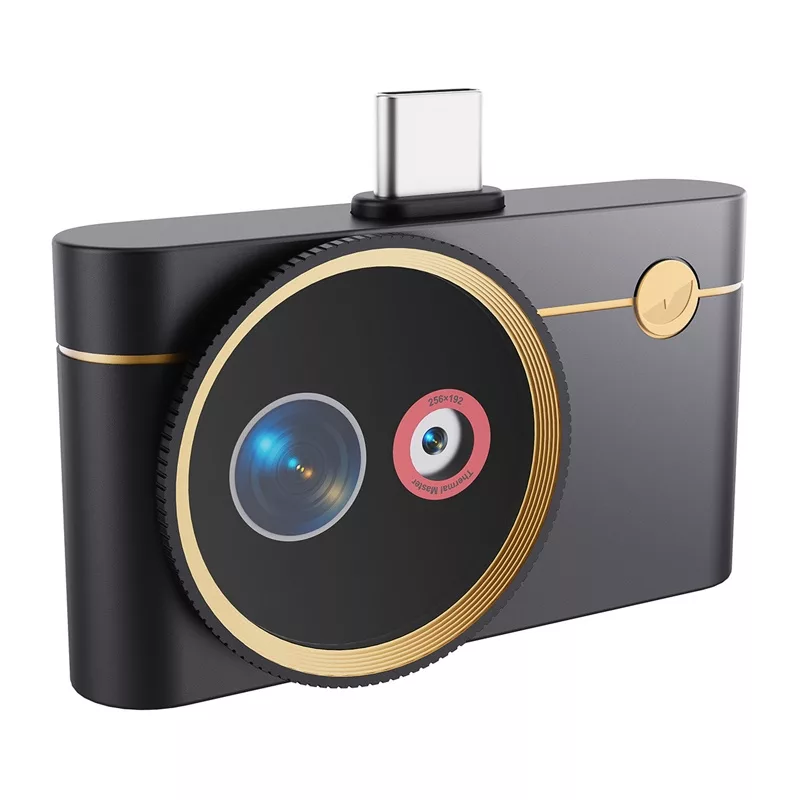

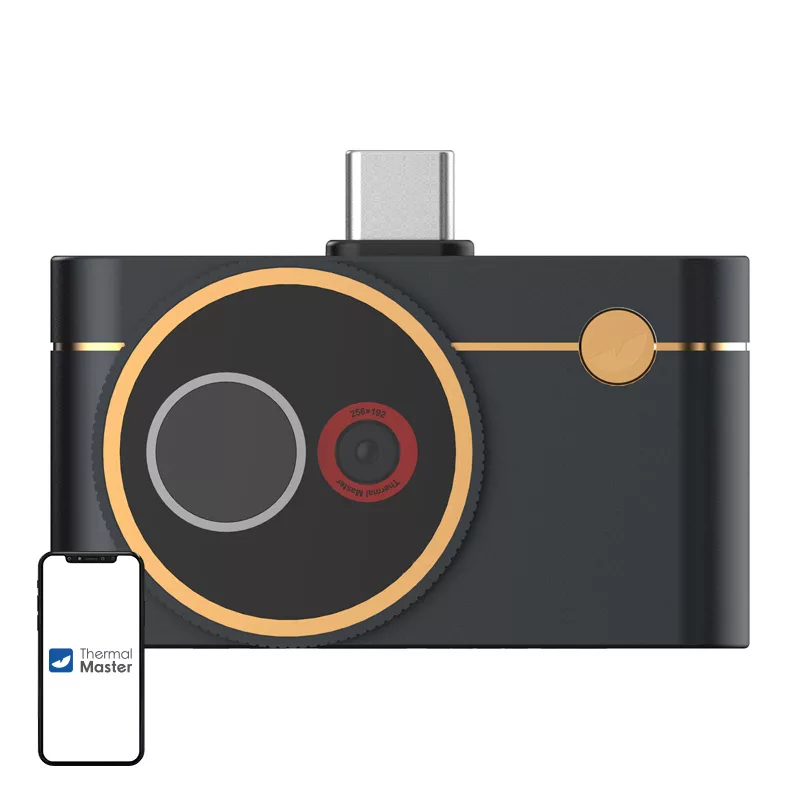

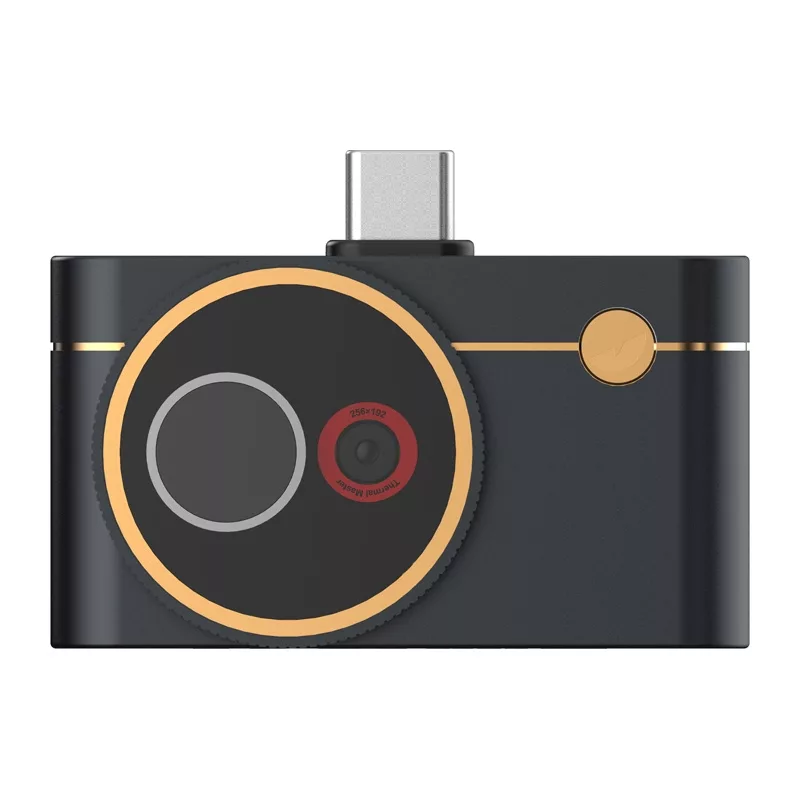

THERMAL MASTER P4 Câmara Térmica Mini USB-C

The THERMAL MASTER P4 is a compact USB-C mini thermal camera designed for professional temperature measurement and thermal imaging. With a high-resolution 256x192 infrared sensor and 12 μm pixel pitch, it delivers clear thermal images for a wide range of applications. The camera connects directly to Android devices with OTG support and PCs via USB-C, making it a versatile tool for building diagnostics, electrical inspections, and preventive maintenance.

Advantages

High thermal sensitivity (<40 mK) ensures accurate detection of minute temperature differences. The wide temperature range (-20°C to 550°C) covers both low and high-temperature targets. Multiple color palettes and measurement modes (spot, line, area) provide flexibility for different scenarios. The aluminum alloy housing is durable and lightweight.

Suitable for

• Building inspection and energy auditing
• Electrical panel and circuit troubleshooting
• HVAC system diagnostics
• Industrial equipment monitoring
• Research and development

Key specifications

• Infrared Resolution: 256 x 192 pixels
• Pixel Pitch: 12 μm
• NETD: <40 mK (@25°C, F#1.0)
• Frame Rate: 25 Hz
• Temperature Range: -20°C to 120°C, 100°C to 550°C
• Accuracy: ±2°C or ±2%
• Field of View: 56° x 42°
• Interface: USB Type-C
• Compatibility: Android (OTG), PC
• Power Consumption: <350 mW
• Emissivity Adjustment: 0.01 to 1.00
• Measurement Modes: Spot, Line, Area (Max/Min/Avg)
• Color Palettes: White Hot, Black Hot, Iron Red, Rainbow, etc.
• Image/Video Capture: Yes (via app)
• Digital Zoom: 1x-4x
• Housing Material: Aluminum Alloy

Recommendations

For optimal performance, use the companion app for image analysis and data logging. Ensure your Android device supports USB OTG. The camera is not waterproof; avoid exposure to moisture.
