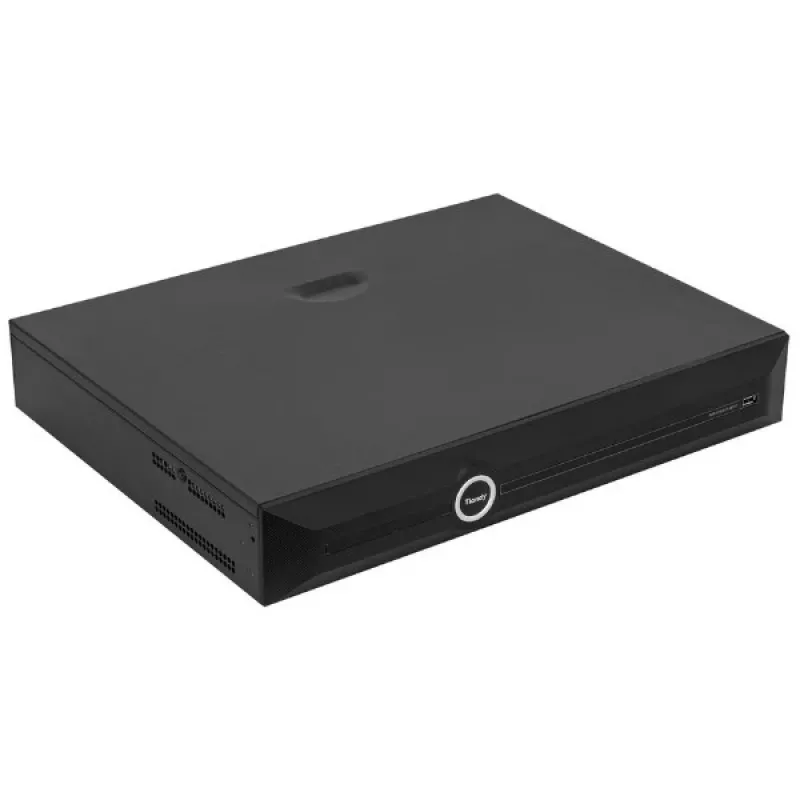

Tiandy TC-R3440 416HB Gravador NVR IP AI 40 canais 16-PoE, 4K, 4 SATA, H.265+

The Tiandy TC-R3440 416HB is a high-performance 40-channel IP NVR recorder with 16 integrated PoE ports, designed for professional surveillance systems. Supporting up to 12MP resolution and advanced AI analytics, this 1.5U rackmount recorder delivers reliable, intelligent video management for medium to large installations.

Advantages

With 40 IP channels and 16 PoE ports (IEEE 802.3af/at, 200W budget), the TC-R3440 416HB simplifies cabling and reduces installation costs. Its AI capabilities include perimeter protection, face detection, vehicle detection, smart search, and target counting, enhancing security efficiency. The unit supports H.265+ compression to save storage space while maintaining high-quality video.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Parking lots and public spaces

Key specifications

• Video Input: 40 IP channels
• PoE Ports: 16 (IEEE 802.3af/at, max 200W)
• Max Recording Resolution: 12MP (4K)
• Decoding Capability: 4-ch@12MP / 8-ch@8MP / 16-ch@4MP / 32-ch@1080P
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080P)
• Audio: 1x RCA In, 1x RCA Out, two-way audio
• Hard Drive Bays: 4 SATA (up to 10TB each, max 40TB)
• Network: 1x Gigabit Ethernet RJ45
• USB: 1x USB 2.0, 1x USB 3.0
• Alarm: 4 inputs, 1 output
• Video Compression: H.265+/H.265/H.264+/H.264
• AI Features: Perimeter protection, face detection, vehicle detection, smart search, target counting
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: -10°C to +55°C
• Form Factor: 1.5U rackmount
• Mobile App: Tiandy View Pro (TVP)

Recommendations

For optimal performance, pair with Tiandy IP cameras and use enterprise-grade hard drives (e.g., WD Purple or Seagate SkyHawk). Ensure proper ventilation in the rack cabinet to maintain operating temperature.
