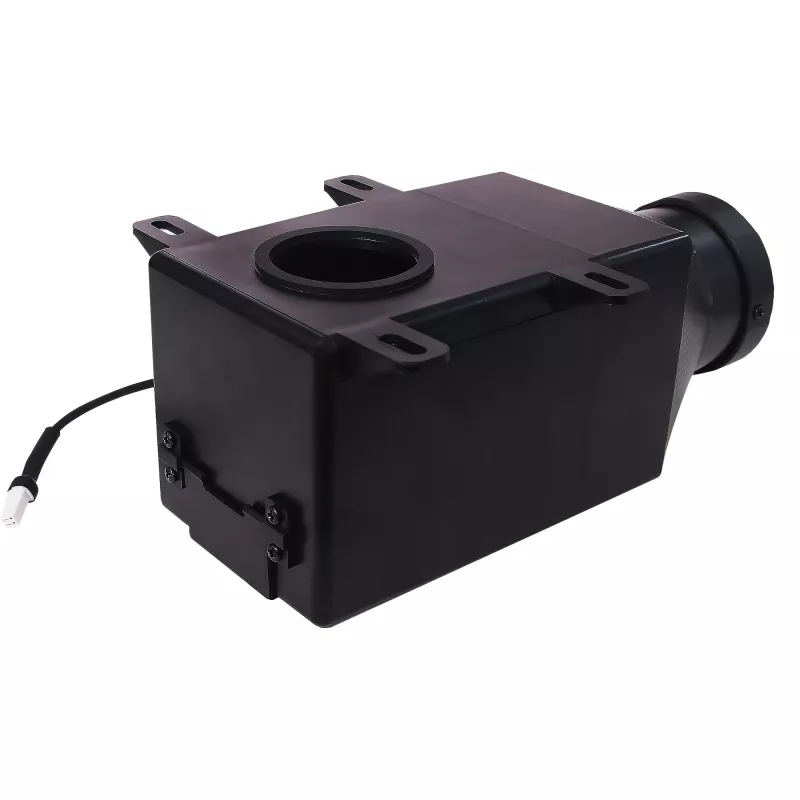

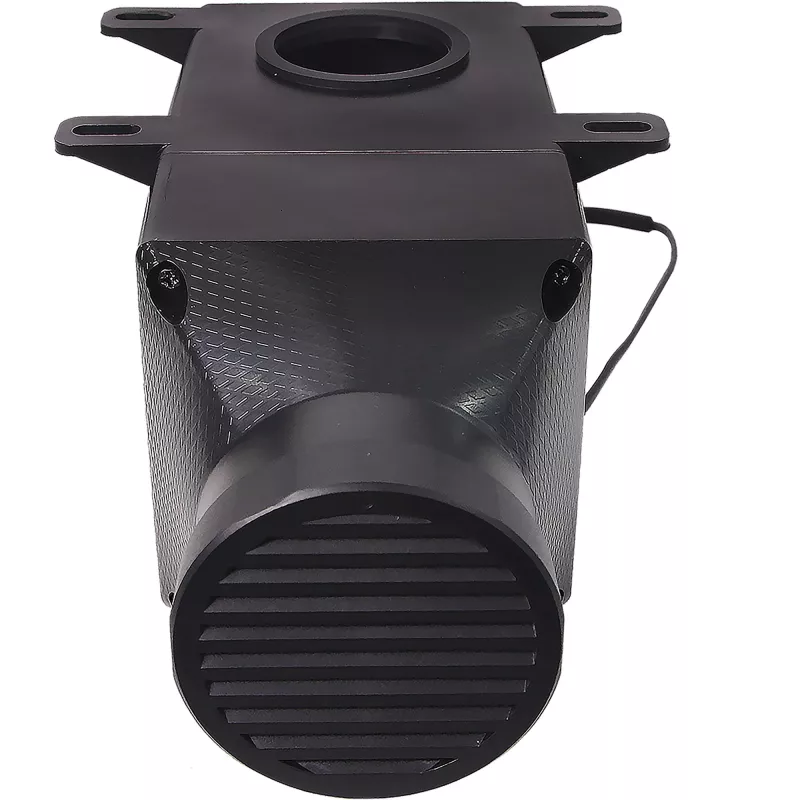

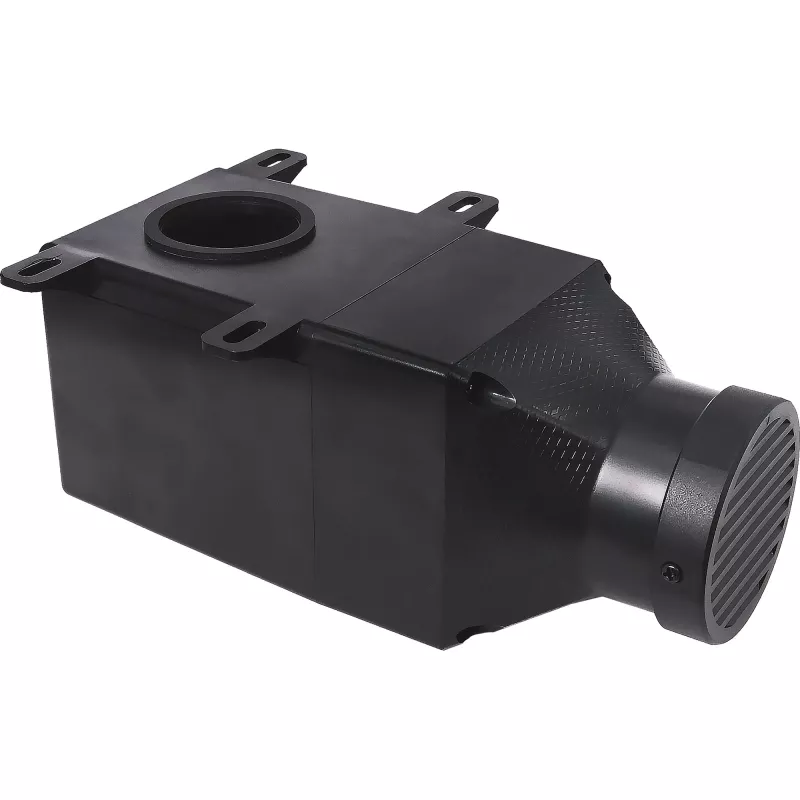

Titan TTC-SC38+ ventoinha para sanita 92 mm 12 V DC 20 m³/h 20 dBA preto

Toilet fan engineered for quiet, continuous odor extraction with a low 20 dBA noise level and efficient 20 m³/h airflow. Its compact 92 mm frame and 12 V DC operation make it ideal for discreet installation in WC ventilation systems.

Advantages

Whisper-quiet operation at just 20 dBA ensures comfort without disturbance. The Z-AXIS bearing extends lifespan to 60,000 hours, while 1.0 W power consumption keeps energy costs minimal. A 2-pin connector simplifies wiring, and the black plastic housing blends with any interior.

Suitable for

• Toilet and WC ventilation systems
• Odor extraction in bathrooms and restrooms
• Compact spaces requiring low-profile fans
• 12 V DC low-voltage installations

Key specifications

• Airflow: 20 m³/h
• Noise level: 20 dBA
• Power consumption: 1.0 W
• Rated voltage: 12 V DC
• Fan speed: 2000 RPM
• Bearing type: Z-AXIS
• Dimensions: 92 x 92 x 25 mm
• Operating temperature: -10 to 60 °C

Recommendations

For reliable, low-noise ventilation in toilets, the Titan TTC-SC38+ offers an excellent balance of performance and longevity. Its low power draw and durable bearing make it a smart choice for continuous operation.
