TMSS GERMANY Telemechanique Sensors Conector fêmea M12 reto cabo PUR 5m 4 polos XZCP1141L5

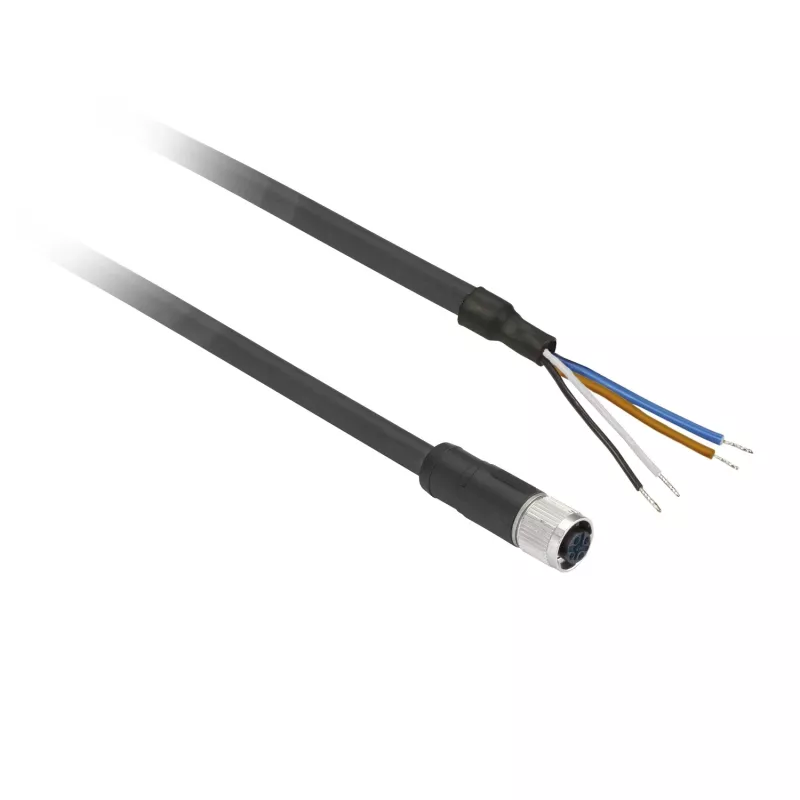

The XZCP1141L5 connection cable from TMSS GERMANY's Telemechanique Sensors line stands out with its robust PUR jacket and M12 female connector, engineered for reliable sensor wiring in demanding industrial environments. Its 5-meter length provides flexibility for installations where sensors are positioned away from control cabinets.

Highlights

• M12 female straight connector with 4 pins
• 5 m PUR cable, grey, unshielded
• Rated for 250 V AC/DC and 4 A
• IP65, IP67, IP69K protection

In daily use

This cable simplifies connecting sensors and actuators in automation systems. The nickel-plated brass coupling nut ensures secure mating, while the PUR jacket resists oils, chemicals, and mechanical wear. The 4 conductors with 0.34 mm² cross-section handle typical sensor signals and power.

Full specifications

• Connector type: M12
• Number of pins: 4
• Connector gender: Female
• Connector orientation: Straight
• Cable length: 5 m
• Cable material: PUR (Polyurethane)
• Number of conductors: 4
• Conductor cross-section: 0.34 mm²
• Rated voltage: 250 V AC/DC
• Rated current: 4 A
• IP rating: IP65, IP67, IP69K
• Operating temperature (cable): -25 to 80 °C
• Operating temperature (connector): -25 to 90 °C
• Cable colour: Grey
• Shielding: Unshielded
• Product range: OsiSense XZ
• Connector body material: PUR
• Coupling nut material: Nickel plated brass

Final note

Choose the XZCP1141L5 for dependable sensor connectivity in harsh industrial settings.
