Tomada de antena Televes ADO 4N 4 portas TWIN — saída de parede para TV/FM/SAT, modelo 516110

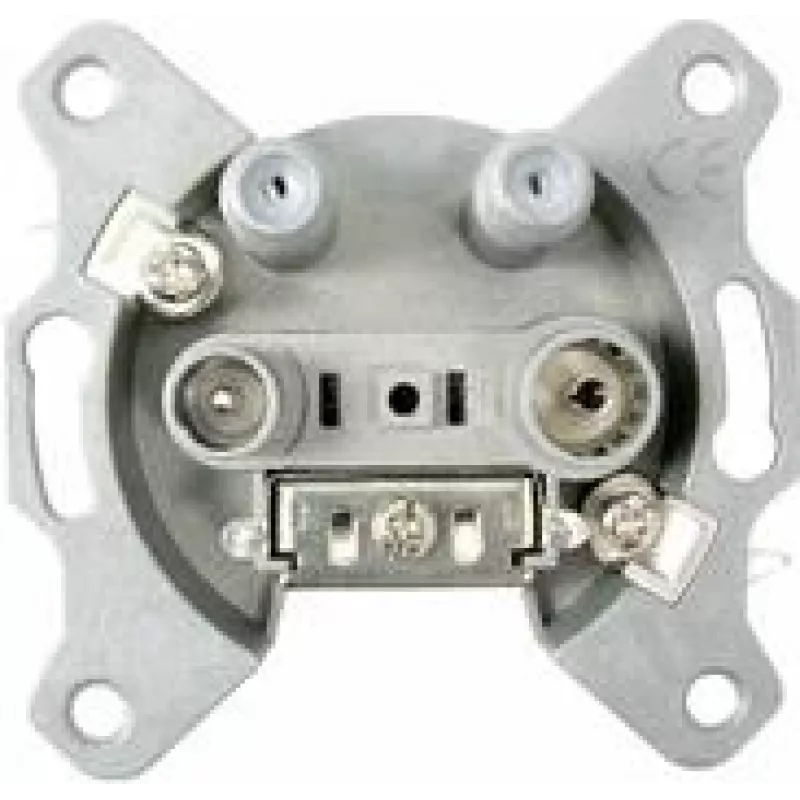

The Televes ADO 4N 4-Port TWIN wall outlet (model 516110) provides a compact in-wall solution for distributing terrestrial TV, FM and satellite signals to multiple receivers. The unit integrates four output ports in a single faceplate designed for standard wall-box mounting. It is intended for residential and small commercial installations where reliable signal splitting and easy connection of several TVs or set-top boxes from a single feed are required.

Advantages

The Televes ADO 4N offers a space-saving design with four clearly labelled outputs to simplify installation and maintenance. Its construction is focused on signal integrity and stable mechanical connections, enabling consistent reception for TV, FM and SAT services. The faceplate is compatible with common wall boxes and finishes, allowing discreet integration into existing interior layouts.

Suitable for

• Distributing terrestrial TV and FM signals to multiple TVs in a home
• Connecting two satellite receivers or a combination of SAT and TV/FM equipment
• Small apartments, multi-room living spaces and compact commercial areas
• Upgrades or replacements of existing wall outlets in retrofit projects

Key specifications

• Output ports: 4 separate coaxial outputs
• Signal types supported: terrestrial TV (VHF/UHF), FM radio, satellite (sat)
• Mounting style: wall/flush-mounted faceplate compatible with standard wall boxes
• Connector type: coaxial F-type compatible connections for receiver cables
• Form factor: single gang faceplate with integrated splitter layout

How to use

Mount the faceplate into a compatible flush wall box and connect the incoming coaxial feed to the designated input terminal according to installation practice for combined TV/FM/SAT outlets. Run coaxial cables from the four output ports to the respective receivers or TVs, ensuring proper tightening of the F-type connectors to maintain electrical contact and reduce signal loss. Check that connected devices are set to the appropriate input and perform channel scans if necessary to confirm signal reception.

Recommendations

For optimal performance, use high-quality coaxial cables and ensure all connectors are free of corrosion and firmly attached. Locate the outlet in a dry, accessible place and avoid excessive bending of cables near the connector. When integrating with amplifiers, multiswitches or distribution amplifiers, follow the wider system design recommendations to preserve satellite and terrestrial signal levels.
