Tomada de ligação de mesa tipo F Kindermann 7492000081 Prateado Branco

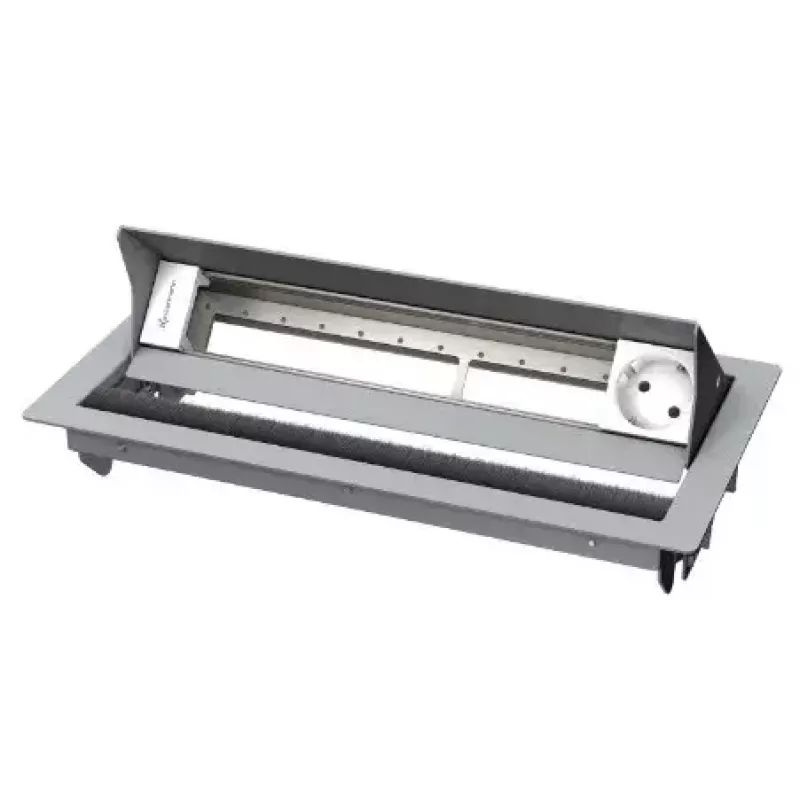

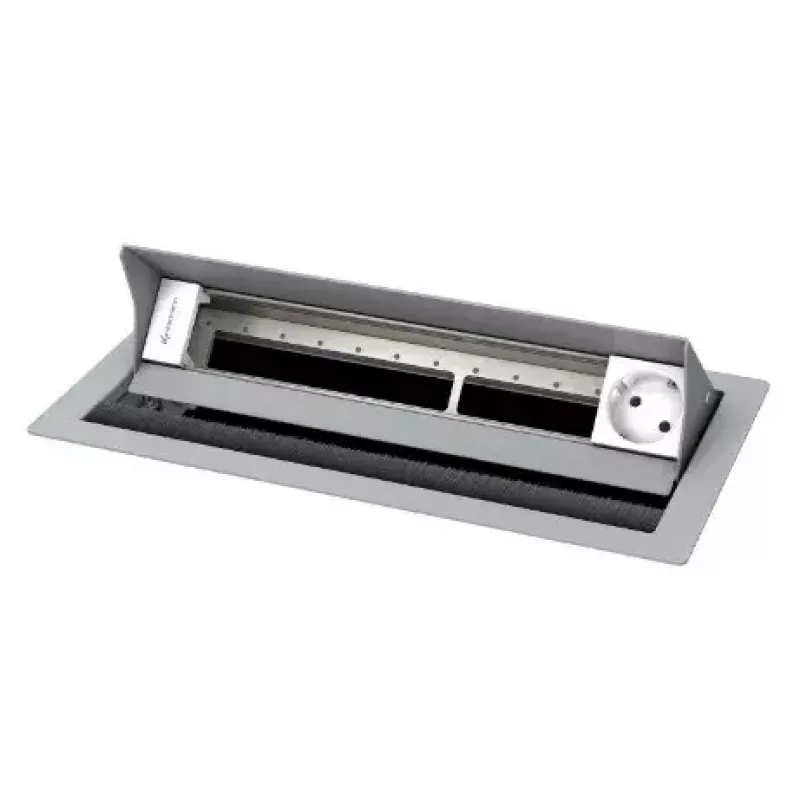

The Kindermann 7492000081 outlet box is a desktop casing for six insets, finished in powder-coated steel RAL 9006 (silver). It is premounted with one mains socket and five empty modules and is compatible with Konnect flex 45 adapter plates for individual configuration. The unit measures 340 mm in width and 190 mm in depth and is designed for integration into desks up to 40 mm thick with an installation depth of 65 mm.

Advantages

Quick mounting is enabled by a click mechanism and interfaces are level-mounted for a homogeneous appearance. The casing supports media control modules, USB chargers and similar inserts. It allows easier mounting from above and offers the option of level-mounted desktop integration. The mains connection uses a 3-pin GST 18 plug.

Suitable for

Key specifications

How to use

Cut an opening in the desktop sized to the product dimensions and installation depth, ensuring the desk thickness does not exceed 40 mm. Insert the outlet box from above and secure it using the click mechanism according to the installer instructions. Fit Konnect flex 45 adapter plates and modules as required, connect the mains lead using the 3-pin GST 18 plug, and test all installed outlets and modules for correct operation.

Recommendations

For reliable operation, use Konnect flex 45-compatible modules and ensure the installation complies with local electrical regulations. Verify that the desktop cutout and installation depth allow sufficient clearance for cables and connected devices.
