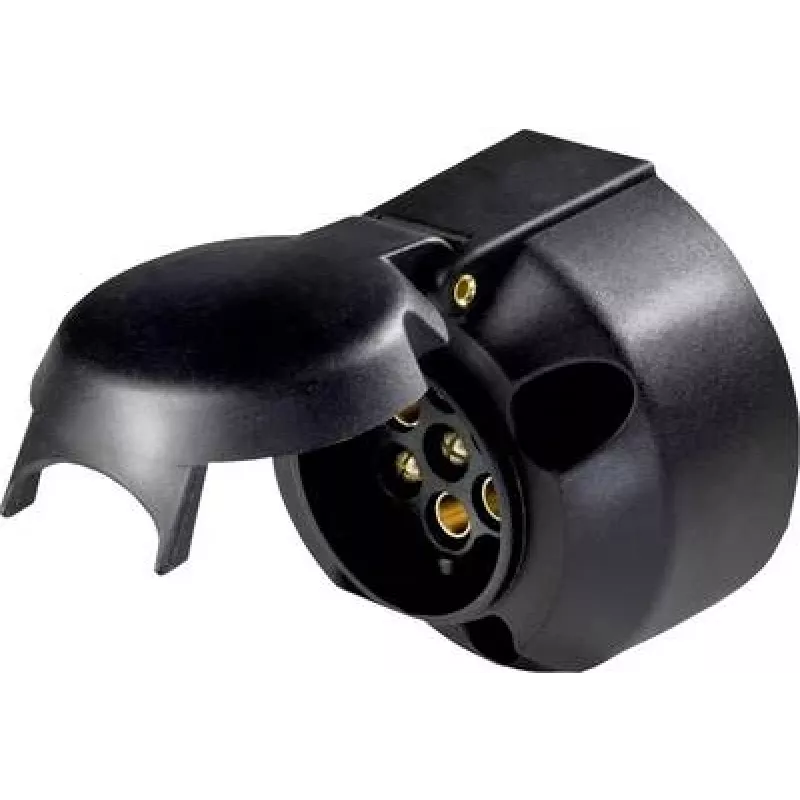

Tomada de reboque 7 pólos AS Schwabe 61473 — ligação de reboque de 7 pólos para instalação elétrica de reboque

The Trailer Socket 7‑Pole AS Schwabe 61473 is a 7‑pin trailer connector designed to provide standard electrical connections between a towing vehicle and a trailer. It supports lighting circuits, turn indicators and a power supply line to ensure compliant and secure electrical interfacing for towing applications. The socket is suitable for installation on passenger cars, vans and trailers where a 7‑pole interface is required and is built for reliable contact and stable plug engagement during road use.

Advantages

This 7‑pin trailer socket offers a standardized pin layout for common towing electrical functions and robust mechanical construction for repeated use. The connector provides secure contact retention to prevent accidental disconnection and is designed to allow straightforward wiring and integration into existing vehicle electrical systems. Its form factor and mounting arrangement accommodate typical installation points on vehicles and trailers, supporting reliable signal transmission under regular operating conditions.

Suitable for

Key specifications

How to use

Install the socket in a suitable location on the vehicle or trailer body where wiring access and plug clearance are available. Secure the housing to the mounting surface according to the vehicle’s repair or installation guidelines, then connect the corresponding vehicle wiring to the socket terminals following the standard 7‑pole wiring scheme. Verify each circuit (tail lights, brake lights, indicators and auxiliary power) with a tester or by connecting a trailer before driving. Ensure cable routing and connections are protected from chafing and moisture to maintain reliable operation.

Recommendations

Use corrosion‑resistant connectors, maintain clean contact surfaces and periodically inspect wiring and seals. When installing or servicing the socket, disconnect the vehicle battery and follow vehicle manufacturer wiring diagrams to ensure proper electrical connections and safe operation while towing.
