Tomada elétrica Vision TC3 BACKBOX1G branco

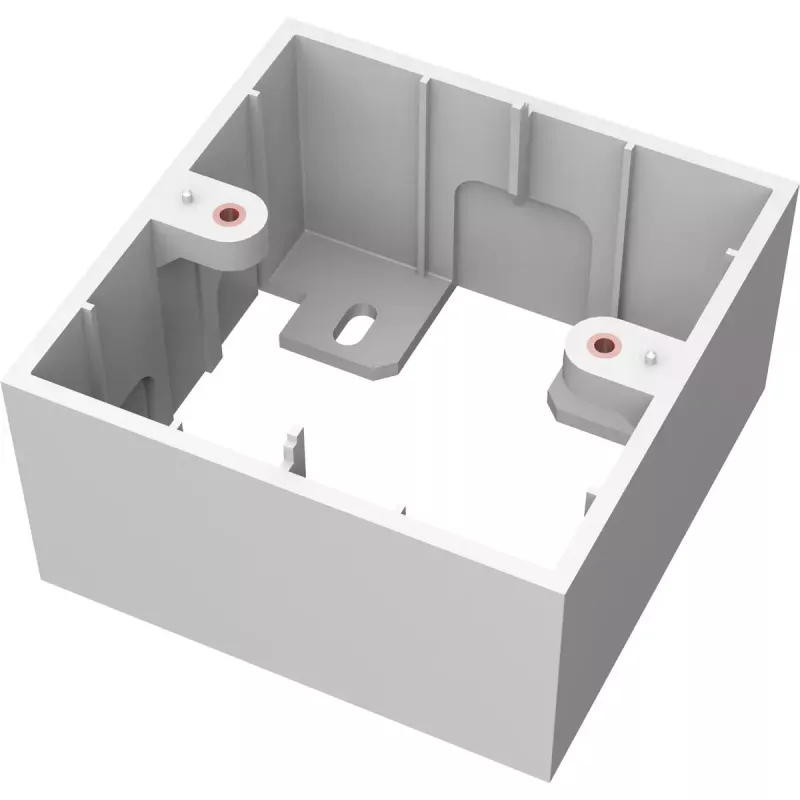

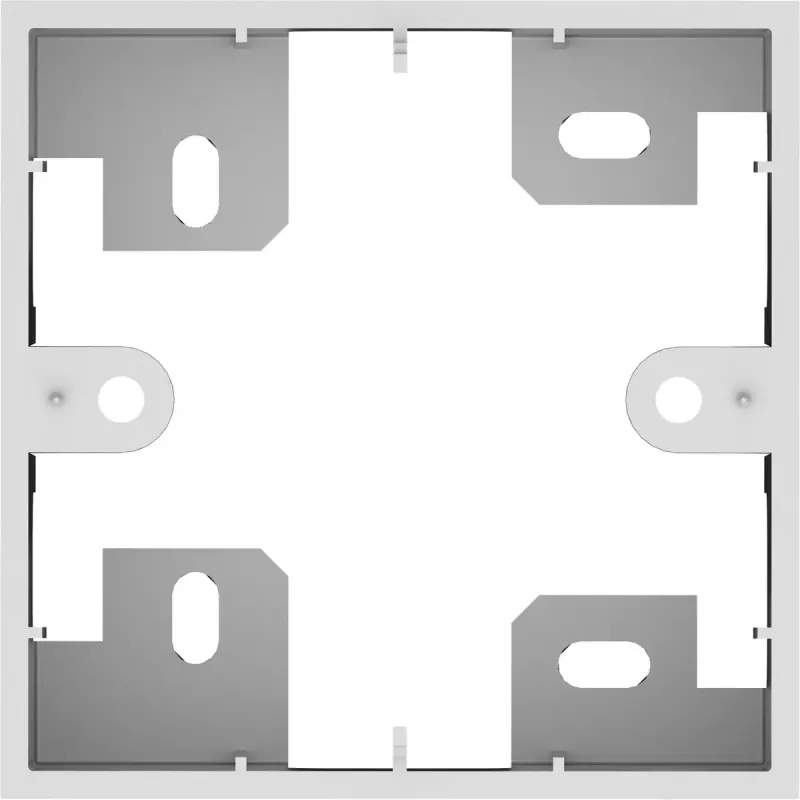

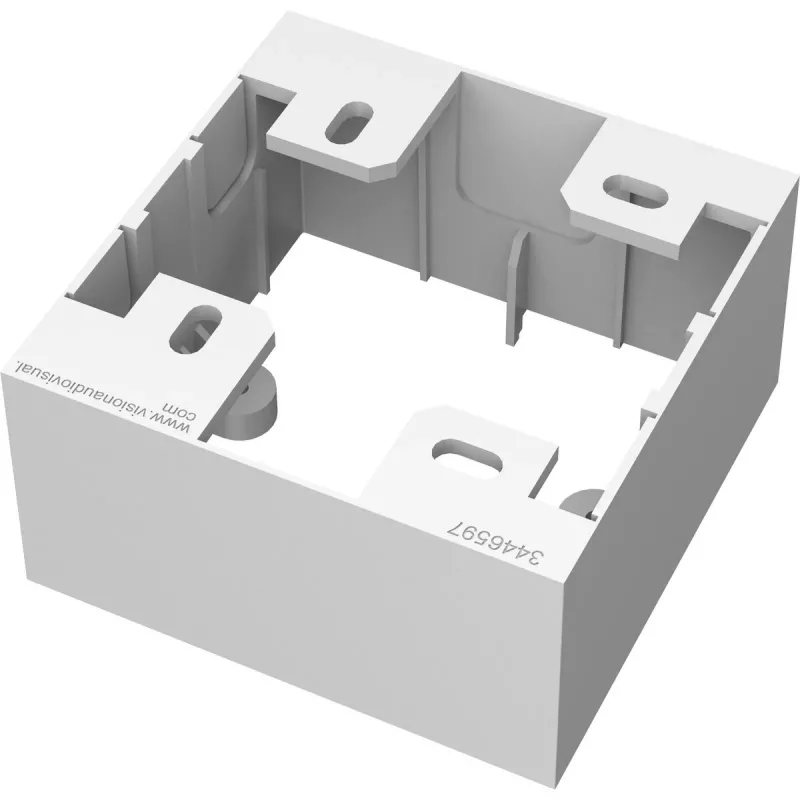

The Vision TC3 BACKBOX1G is a white 1-gang UK backbox with external dimensions of 86 x 86 x 45 mm (W x H x D). Designed to house and protect electrical connections, this compact backbox is suitable for standard UK wall fittings and provides a stable mounting point for switches or sockets.

Advantages

The product offers a compact footprint and standard 1-gang sizing for compatibility with common UK faceplates. Its white finish allows discreet integration into interiors. Constructed for straightforward installation, the backbox secures electrical wiring and connections while maintaining a consistent mounting depth.

Suitable for (tasks / use cases)

• Mounting single light switches
• Installing single power sockets or fused spurs
• Housing wiring junctions in domestic or commercial walls
• Retrofit and new-build electrical installations that use UK 1-gang faceplates

Key specifications

• Brand: VISION
• Model / MPN: TC3 BACKBOX1G
• EAN: 3446597000004
• Type: 1-gang UK backbox
• Dimensions (W x H x D): 86 x 86 x 45 mm (3.39" x 3.39" x 1.77")
• Colour: White

How to use

Cut an appropriately sized aperture in the wall or mounting surface to accommodate the backbox depth and footprint. Insert the backbox into the wall cavity or fix it to the surface using suitable screws or fixings through the provided mounting points. Route cables into the box through the knockouts or entry points, complete the electrical connections according to local wiring regulations, and secure the chosen switch or socket faceplate to the backbox.

Recommendations

Follow local electrical codes and safety standards when installing the backbox. Ensure power is isolated before beginning work and, when in doubt, consult a qualified electrician. Use appropriate fixings for the wall material and check that the selected faceplate is compatible with 1-gang UK backboxes.
