Tomada HDMI Vision TC3

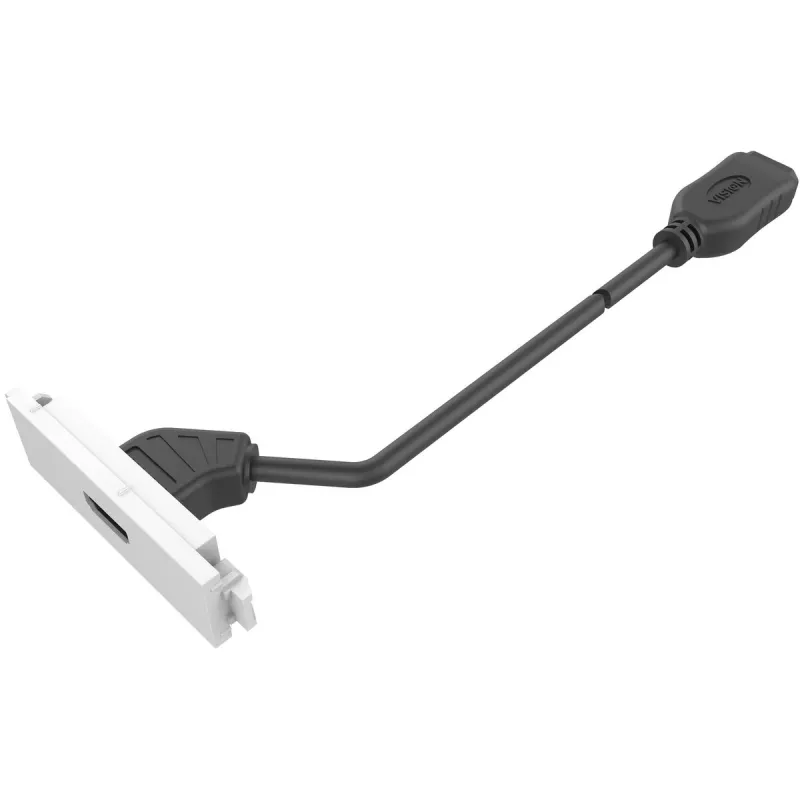

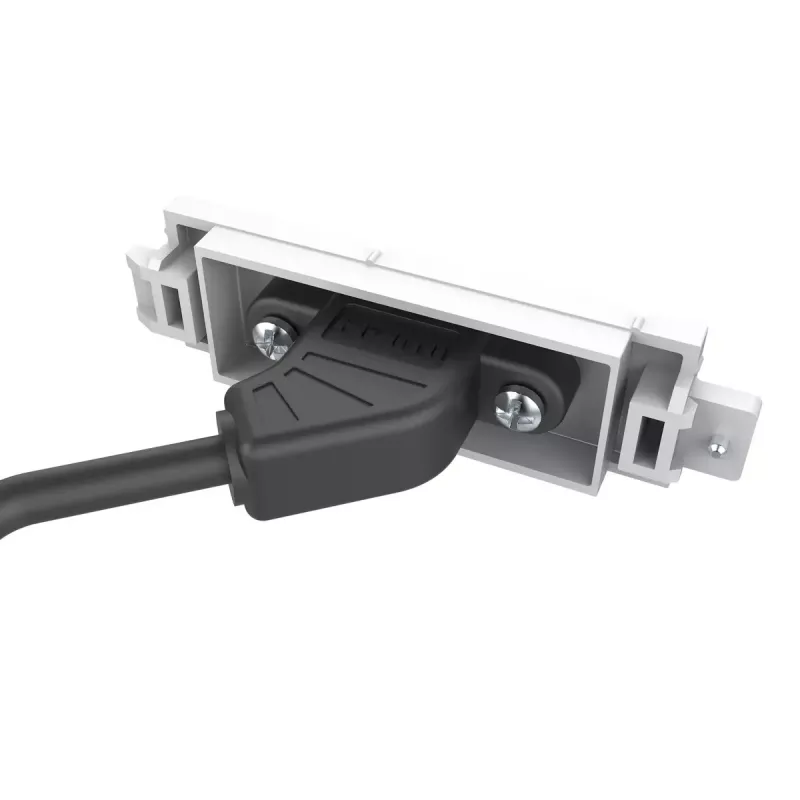

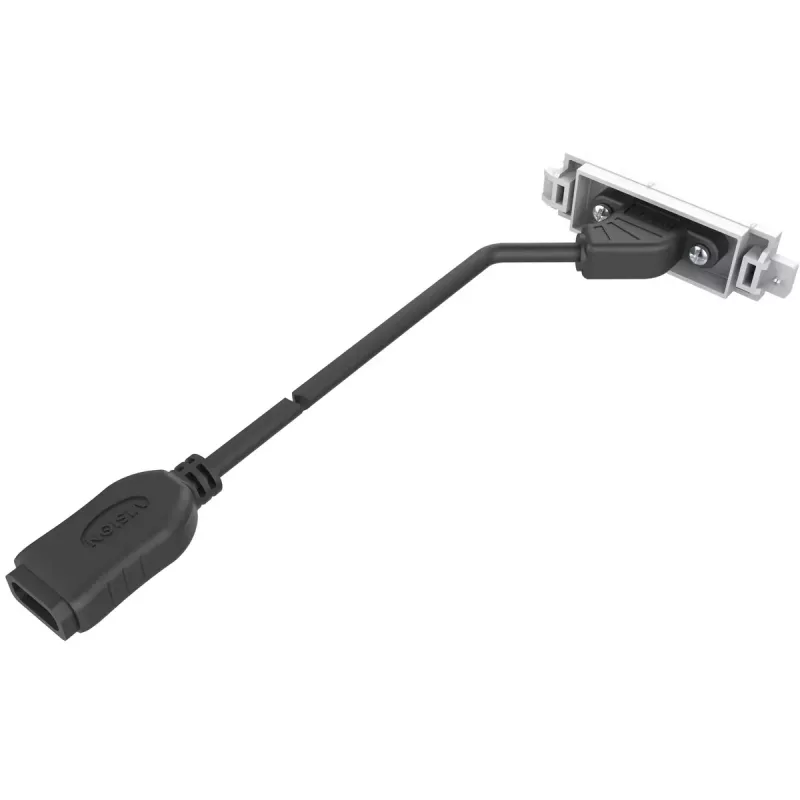

The VISION TC3 HDMI socket-outlet is a compact module that provides a fixed HDMI connection point for AV equipment. With overall dimensions of 64 mm wide, 250 mm deep and 21 mm high and an AWG 28 cable tail of 200 mm (7.87") length, this HDMI 1.4 module is designed for integration into furniture panels, wall plates or AV racks to deliver stable audio and video transmission between sources and displays.

Advantages

The HDMI module supports the HDMI 1.4 standard and uses AWG 28 cabling to maintain signal integrity over the 200 mm tail. Its slim 64 × 250 × 21 mm profile allows installation in limited spaces while the socket-outlet format offers a fixed, secure connection point for HDMI cables. The module is suitable for repeated plug cycles and intended for both residential and professional AV installations.

Suitable for

• Home theater systems
• Conference rooms and meeting spaces
• AV furniture and custom installation panels
• Professional audio-video racks

Key specifications

• Brand: VISION
• Model/MPN: TC3 HDMI
• Standard: HDMI 1.4
• Cable: AWG 28 tail, 200 mm (7.87") length

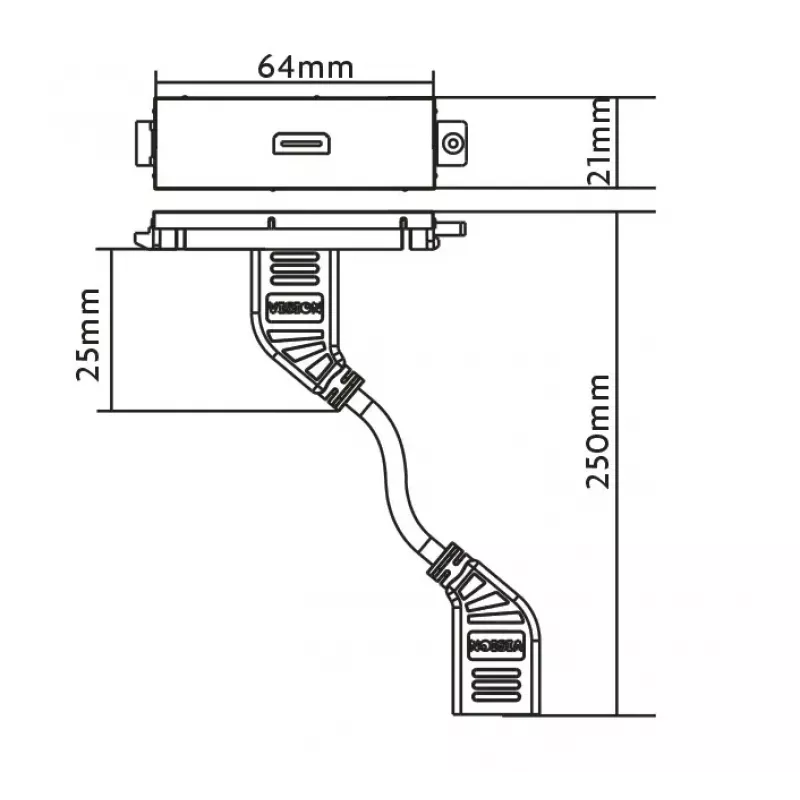

• Dimensions: 64 mm (W) × 250 mm (D) × 21 mm (H)
• Category: Outlets / HDMI socket-outlet
• EAN: 3446573000004

How to use

Install the HDMI socket-outlet into the prepared opening of a panel, wall plate or rack according to the mounting requirements of your installation. Route the AWG 28 cable tail to the AV equipment and connect it to the corresponding input or output. Plug a standard HDMI cable into the front socket to connect source and display devices. Verify audio and video signal integrity after installation and secure the module in place with appropriate fasteners.

Recommendations

For best results, use high-quality HDMI cables and ensure the tail length and routing do not impose sharp bends or tension on the AWG 28 cable. Confirm compatibility of connected devices with HDMI 1.4 features and keep firmware of AV equipment updated.
