Tomada inteligente Shelly Wave Plug S Z-Wave 800 preto — tomada inteligente Z-Wave 800, 230 V/12 A, 2500 W, medição de potência

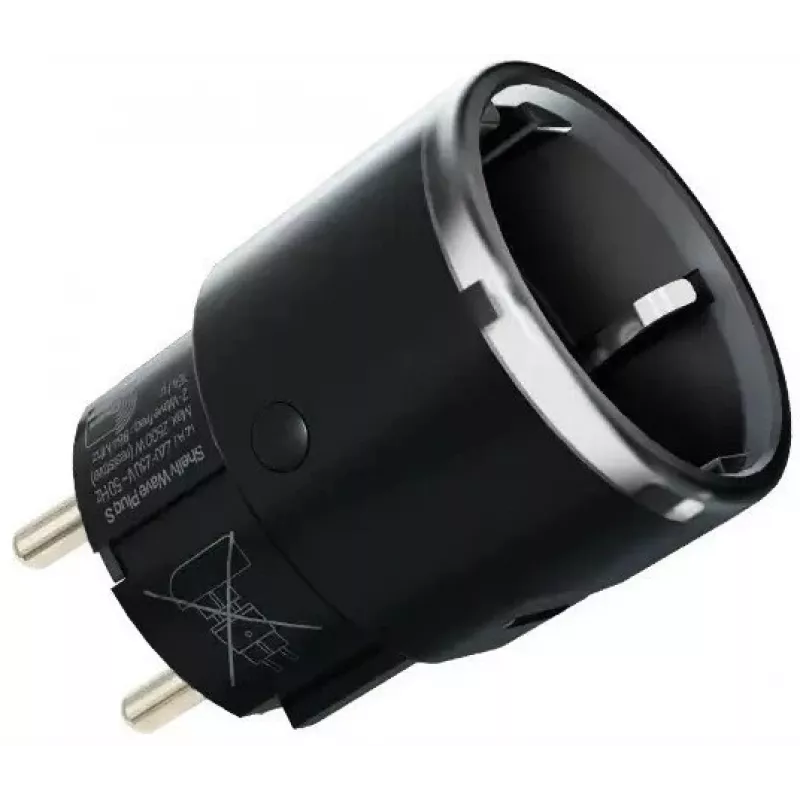

Shelly Wave Plug S Z-Wave 800 (Black) is a compact indoor smart plug designed to control and measure electrical appliances on a 230 V supply. The device supports up to 12 A and 2500 W, provides real-time power and energy measurement, and communicates over the Z-Wave 800 Series wireless protocol. It includes LED status indicators, AES-128 security, OTA firmware updates and built-in protection against overheating, overload and overvoltage.

Advantages

The Shelly Wave Plug S offers accurate power and energy metering in a compact enclosure (70 × 44 × 44 mm), wide compatibility with popular smart home platforms, and secure wireless communication via Z-Wave 800. Its design supports up to 10,000 switching cycles, has low standby power consumption and includes SmartStart for simplified inclusion into a Z-Wave network.

Suitable for

• Remote switching and scheduling of lamps and small household appliances
• Monitoring power consumption of individual devices
• Integration with Home Assistant, Fibaro, Homey, SmartThings and similar hubs
• Indoor installations where compact size and AES-128 security are required

Key specifications

• Rated voltage: 230 V AC
• Maximum current: 12 A
• Maximum power: 2500 W
• Power consumption (typical): 0.7 W
• Z-Wave 800 Series connectivity, frequency 868.4 MHz
• Maximum indoor range: 40 m
• Security: AES-128
• Overvoltage category: II
• Rated impulse-withstand voltage: 2500 V
• Number of switching cycles: 10,000
• Operating temperature: -20 to 40 °C
• Dimensions (W×H×D): 44 × 70 × 44 mm
• Weight: 60 g

How to use

Plug the Shelly Wave Plug S into a compatible wall socket and connect the appliance to the plug. Include the device into your Z-Wave network using the hub’s inclusion procedure or SmartStart. Monitor and control the connected load via the hub or compatible controller, use scheduling or automation rules for on/off control, and read power and energy measurements through the controller interface. Ensure the connected device does not exceed 12 A or 2500 W and that the installation complies with local electrical regulations.

Recommendations

For reliable operation, place the plug indoors within the specified maximum range from the Z-Wave hub, avoid exceeding the rated current and power, and keep the device away from heat sources and moisture. Update firmware via OTA when updates are available and use a compatible Z-Wave hub for full feature access.
