Tomada RS-232 Kindermann 7444000520

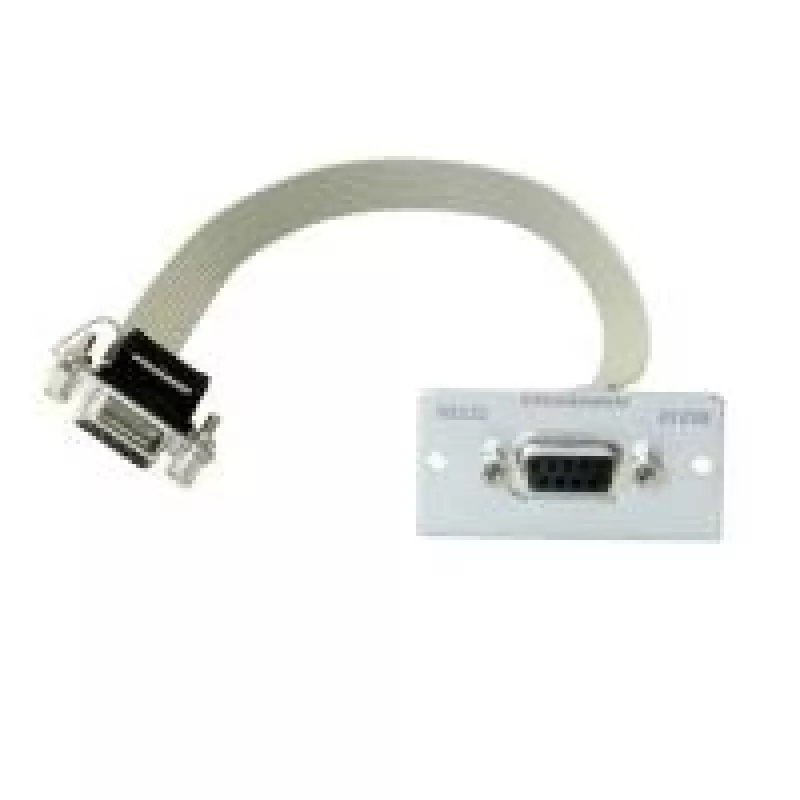

The Kindermann 7444000520 Socket outlet RS-232 is a half-size adapter plate with a 9-pin SubD (RS-232) socket, designed for reliable serial connectivity. Constructed from anodized aluminium, the plate combines a compact width of 50 mm and a minimum mounting depth of 20 mm, and it supports a single module for straightforward installation in furniture, racks or wall panels.

Advantages

The anodized aluminium housing provides corrosion resistance and a durable finish while maintaining a low profile. A standard 9-pin SubD socket ensures compatibility with common RS-232 serial cables and devices. The half-size form factor and single-module design allow flexible placement in constrained installation spaces.

Suitable for

Key specifications

How to use

Mount the half-size plate into the chosen furniture, rack or wall panel cutout, ensuring the available depth is at least 20 mm. Secure the plate with appropriate screws, connect an RS-232 cable to the 9-pin SubD socket and attach the other end to the serial device. Verify secure physical connections and test serial communication using the target equipment.

Recommendations

For reliable operation, use standard shielded RS-232 cables and avoid routing cables alongside high-current power lines. Inspect the connector for secure seating before installation and perform a communication test after wiring to confirm correct signal levels and pinout compatibility.
