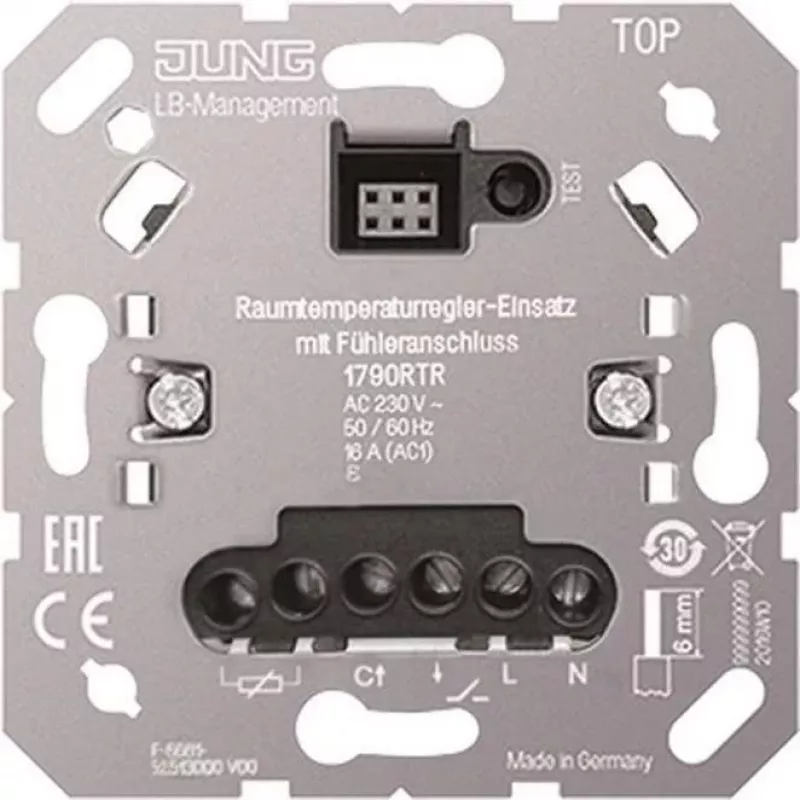

Jung 1790RTR Módulo de regulador de temperatura ambiente com ligação para sensor

The Jung 1790RTR is a room temperature controller insert with sensor connection, designed for switching electric underfloor heating systems and electrothermal actuators. It operates with a room temperature controller cover from the LB Management range and is mounted in a device box according to EN 60670-1.

Key features

• Pulse width modulation (PWM) or two-point control (on/off)
• Allows connection of a remote sensor (art. no.: FF 7.8)
• Input for switching to cooling operation
• Interrupts the heating process after 60 minutes (overheating protection of a heating device)
• With sensor connection for displays art. nos.: .. 1790 D ..

Specifications

• Brand: Jung
• MPN: 1790RTR
• Socket type: Type F
• Housing material: Plastic
• Rated frequency: 50/60 Hz
• Operating temperature: -5 - 45 °C
• Quantity per pack: 1 piece(s)
