Tomada XLR Kindermann 7444000578

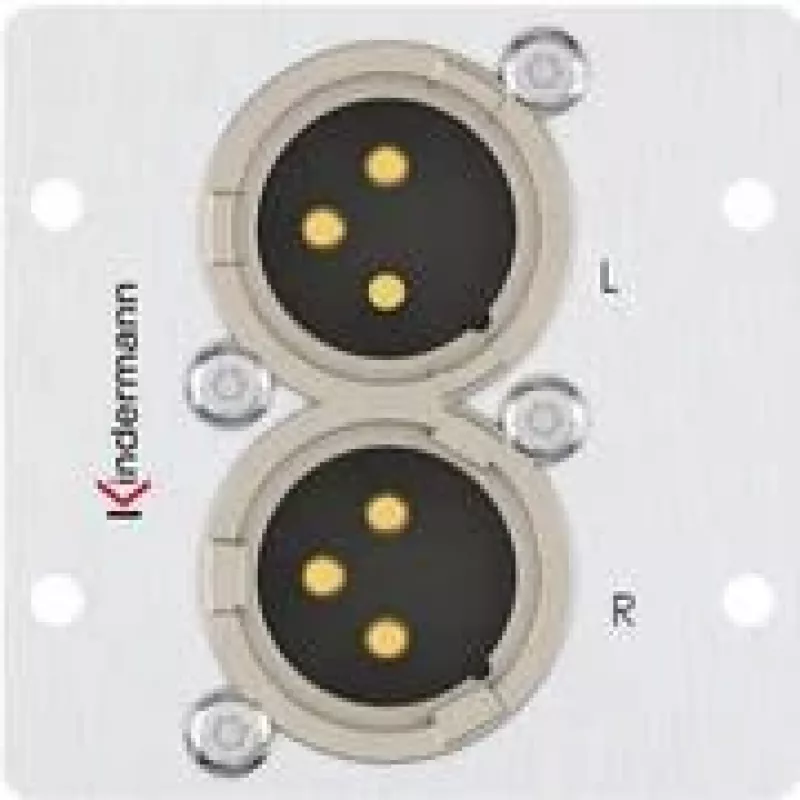

The Kindermann 7444000578 Socket outlet is an XLR 3-pin adapter plate designed for professional audio installations. It features a full-size anodized aluminium faceplate with a 2-fold clamp connection for secure wiring and a compact single-module footprint (50 × 50 mm, min. depth 5 cm). The aluminium finish provides a durable, corrosion-resistant surface and a neutral appearance suitable for fixed audio installations.

Advantages

The anodized aluminium construction ensures mechanical robustness and resistance to wear. The 2-fold clamp connection allows secure and tool-assisted termination of XLR wiring. Its single-module size and standard dimensions simplify installation in panels, wall plates, or equipment racks where a neat, flush-mounted XLR socket outlet is required.

Suitable for

Key specifications

How to use

Mount the plate into a compatible single-module cutout or frame and secure it with appropriate fasteners. Strip the cable conductors and terminate them into the two clamp points according to the XLR 3-pin wiring standard (pin 1 = ground, pin 2 = hot/positive, pin 3 = cold/negative). Verify secure clamping and continuity before final installation. Recess the assembly to the specified minimum depth so the faceplate sits flush.

Recommendations

For reliable long-term performance, use cables and connectors rated for professional audio and ensure correct grounding. Avoid installing in environments with excessive moisture unless additional sealing or protection is applied.
