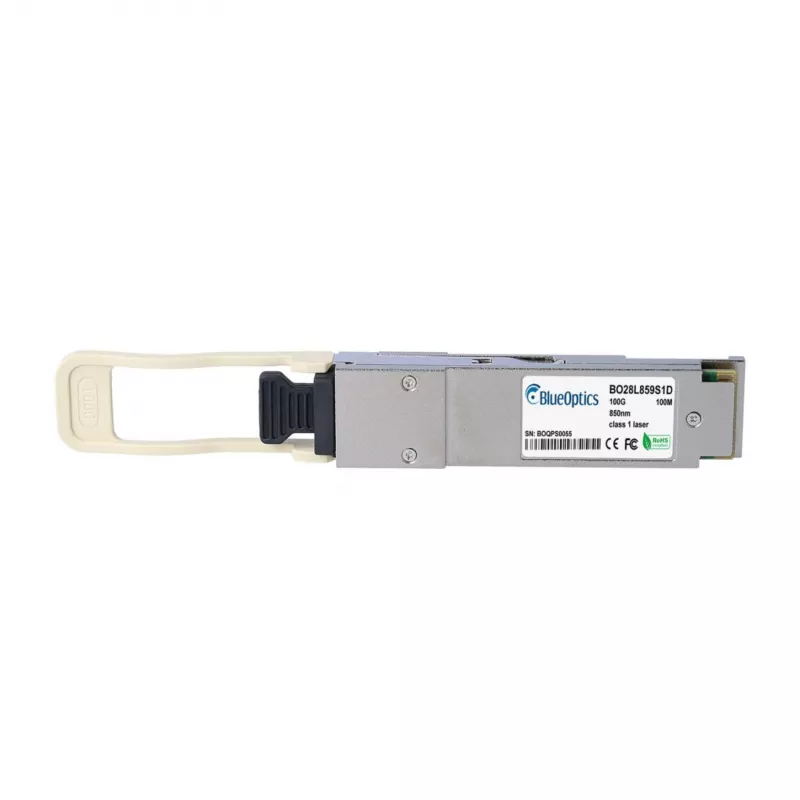

Transceptor BlueOptics BO28L859S1D compatível QSFP28 100GBASE-SR4, MPO, multimodo, 850nm, 100m

The BlueOptics BO28L859S1D is a high-performance, cost-effective QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with Finisar FTLC9554REPM and offers reliable connectivity for data centers and enterprise networks. This transceiver supports 100GBASE-SR4 over multimode fiber with an MPO-12 connector, delivering up to 100 meters reach on OM4 fiber.

Advantages

This BlueOptics transceiver provides a cost-effective alternative to OEM modules without compromising performance or reliability. It features hot-pluggable design, low power consumption (<3.5W), and digital diagnostics monitoring (DDM) for real-time performance tracking. The MPO-12 connector enables high-density cabling, saving space and simplifying cable management.

Suitable for

• Data center interconnects (DCI)
• High-performance computing (HPC) clusters
• Enterprise networking and campus backbones
• 100GBASE-SR4 compliant network upgrades

Key specifications

• Transceiver Type: QSFP28
• Data Rate: 100 Gbps (4 x 25 Gbps)
• Ethernet Standard: 100GBASE-SR4
• Connector: MPO-12 (MTP/MPO)
• Fiber Type: Multimode (MMF)
• Wavelength: 850 nm
• Max Reach: 70m (OM3), 100m (OM4), 150m (OM5)
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3bm, SFF-8665, RoHS, CE, FCC

Recommendations

For optimal performance, use with OM4 or OM5 multimode fiber and ensure proper MPO connector cleaning. This transceiver is ideal for high-bandwidth applications requiring reliable 100G connectivity.
