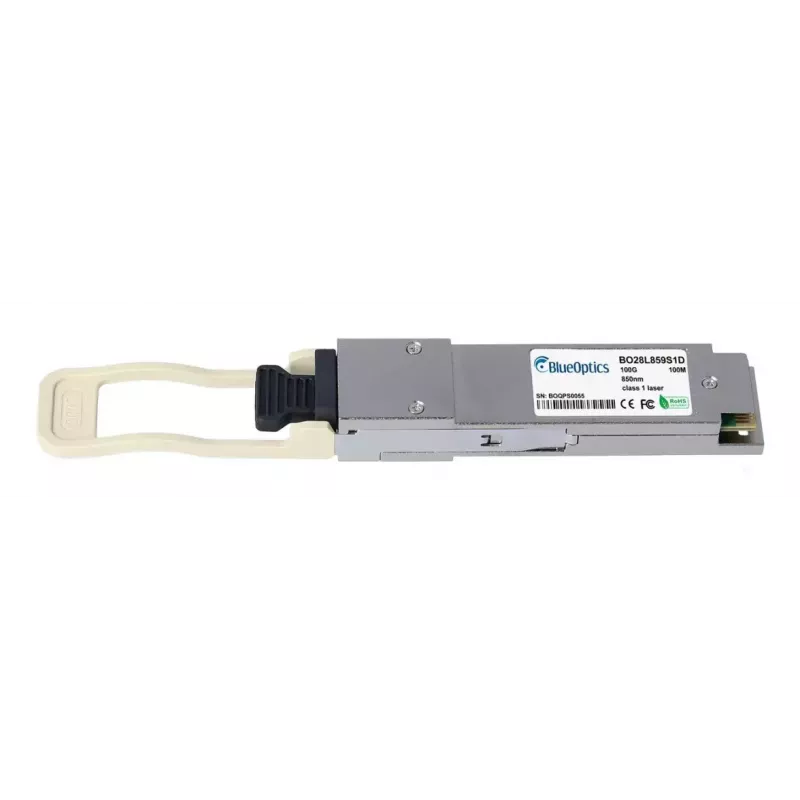

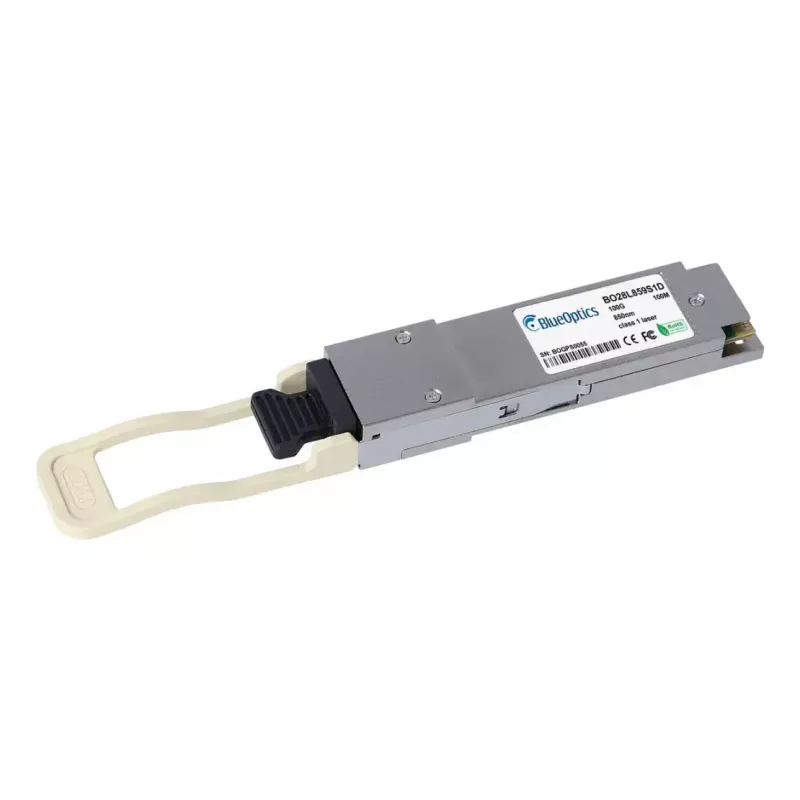

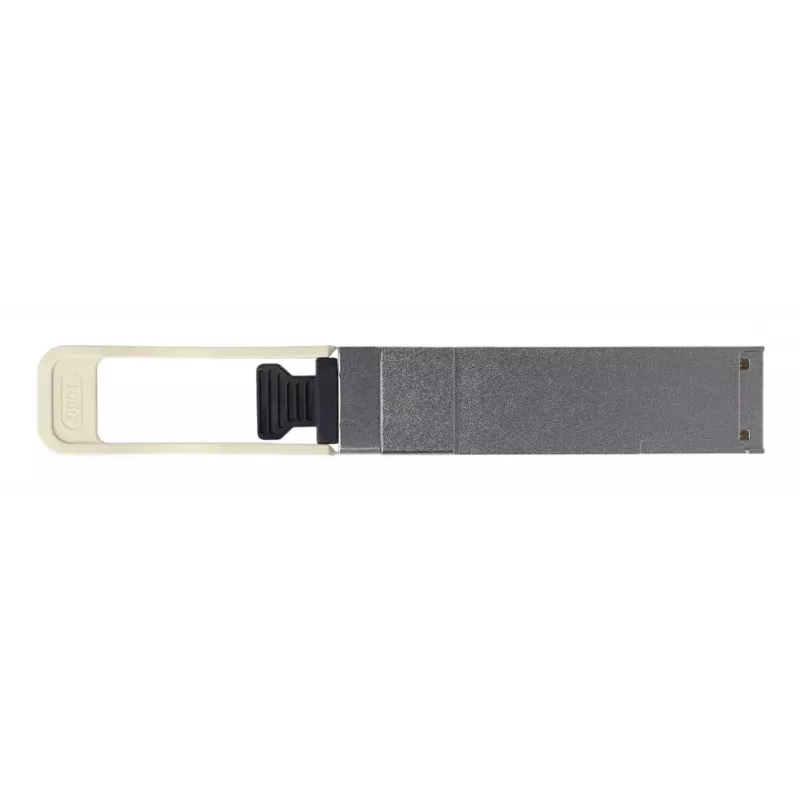

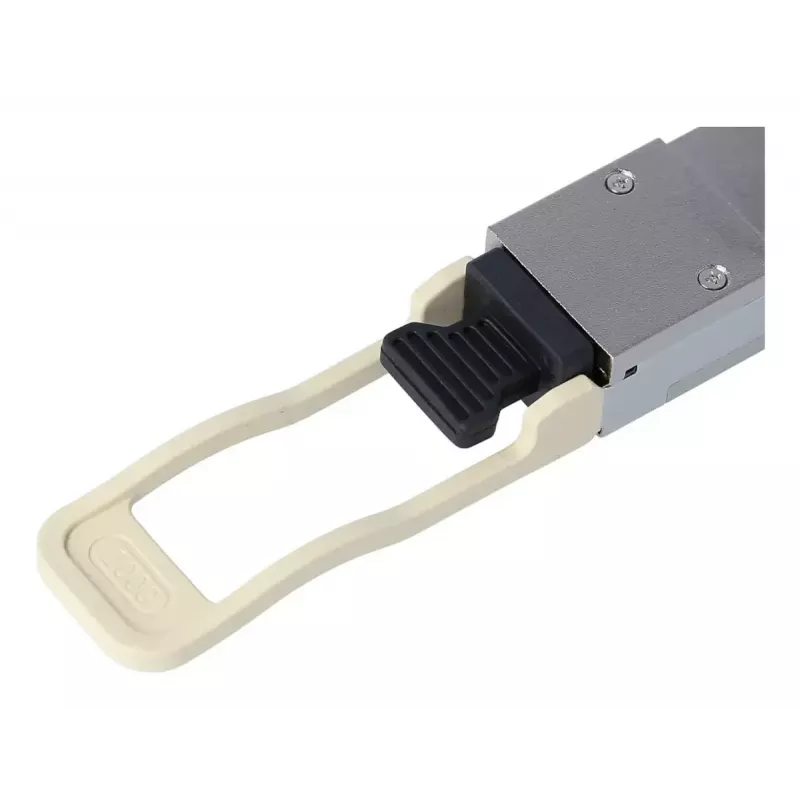

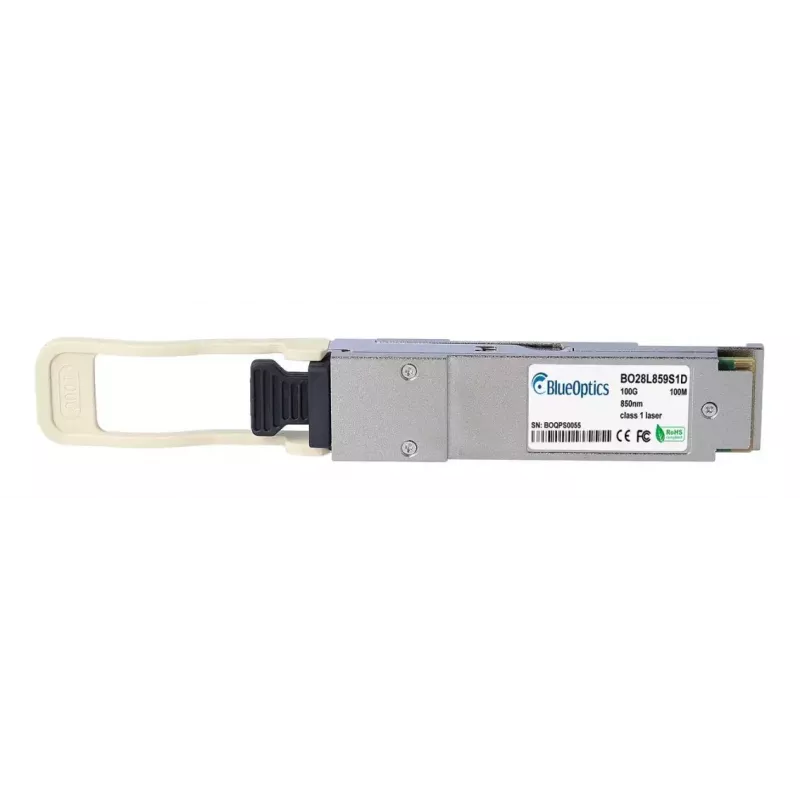

Transceptor BlueOptics Evertz Scorpion QSFP28 BO28L859S1D 100000 Mbit/s

The BlueOptics Evertz Scorpion QSFP28 BO28L859S1D is a QSFP28 fiber optic transceiver module designed for high-speed network environments. It supports a maximum data transfer rate of 100000 Mbit/s over multimode fiber and uses an MPO/MTP fiber connector. The module is housed in a metal enclosure with a silver finish and weighs approximately 40 g. It is suitable for short-reach 100GBASE-SR4 applications and complies with MSA-style QSFP28 form-factor expectations for use in compatible hardware platforms.

Advantages

The transceiver offers 100 Gbit/s optical data transmission with multimode 850 nm lasers for simultaneous transmit and receive channels, enabling low-latency, high-bandwidth links up to the specified distance. Its metal construction provides mechanical durability and thermal stability while the MPO/MTP connector facilitates parallel fiber connections commonly used in data centers. The design follows industry MSA conventions, and the module provides digital diagnostics monitoring (DDM/DOM) capabilities for real-time parameters such as optical power and temperature when supported by host hardware.

Suitable for

Key specifications

How to use

Install the QSFP28 module into a compatible QSFP28 slot in switches, routers or other network equipment that support 100GBASE-SR4 form-factor transceivers. Connect an MPO/MTP multimode fiber patch cable to the module ensuring correct polarity and fiber mapping for parallel transmit/receive lanes. Verify link status via the host device and, if available, read out DDM/DOM parameters from the management interface to monitor optical power, temperature and related diagnostics. Follow the host vendor’s hot-plug guidelines and electrostatic discharge (ESD) precautions during handling and installation.

Recommendations

For optimal performance, use certified multimode MPO/MTP patch cords and maintain clean fiber endfaces. Ensure the host device officially supports QSFP28 100GBASE-SR4 modules and enables DDM/DOM to benefit from real-time diagnostics. Keep link distances within the specified 100 m multimode limit and follow manufacturer guidelines for fiber mapping and polarity to prevent signal issues.
