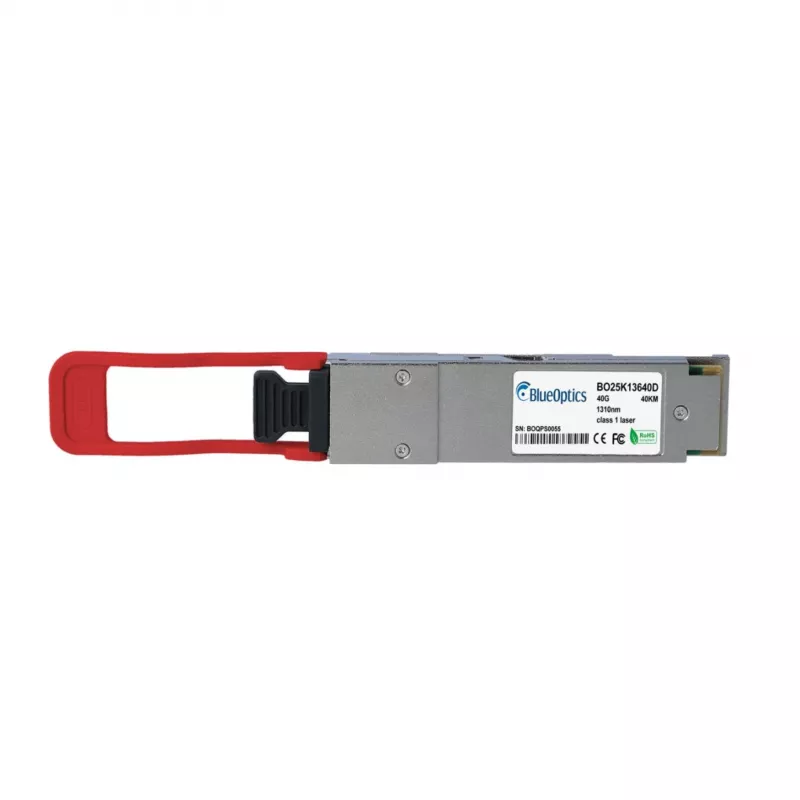

Transceptor BlueOptics QSFP+ 40GBASE-ER4 40km SMF BO25K13640D compatível com Ruckus E40G-QSFP-ER4

The BlueOptics BO25K13640D is a high-performance QSFP+ transceiver designed for 40GBASE-ER4 Ethernet applications. It is fully compatible with Ruckus E40G-QSFP-ER4 equipment and MSA compliant devices, delivering reliable connectivity over single-mode fiber at distances up to 40 km. This hot-swappable module supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking, making it ideal for enterprise and data center networks requiring long-reach 40 Gbps links.

Advantages

Cost-effective alternative to OEM modules with full compatibility and performance. Supports CWDM wavelengths (1271nm, 1291nm, 1311nm, 1331nm) for efficient wavelength division multiplexing. Low power consumption of 3.5 W reduces energy costs. Robust design with operating temperature range of 0°C to 70°C ensures stable operation in various environments.

Suitable for

• 40 Gbps Ethernet connections in data centers and enterprise networks
• Long-haul fiber optic links up to 40 km
• Ruckus E40G-QSFP-ER4 compatible switches and routers
• MSA compliant QSFP+ ports

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Standard: 40GBASE-ER4
• Max Distance: 40 km
• Fiber Type: Single-Mode (SMF)
• Connector: LC Duplex
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (CWDM)
• Power Consumption: 3.5 W max
• Operating Temperature: 0°C to 70°C
• Supply Voltage: 3.3 V
• Compliance: IEEE 802.3ba, SFF-8436, RoHS, CE, FCC
• Hot-Pluggable: Yes
• DDM: Supported

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This transceiver is a direct replacement for Ruckus E40G-QSFP-ER4 modules and is backed by BlueOptics quality and reliability.
