Transceptor BlueOptics QSFP28 100GBASE-SR4 compatível com Ruckus E100G-QSFP28-SR4

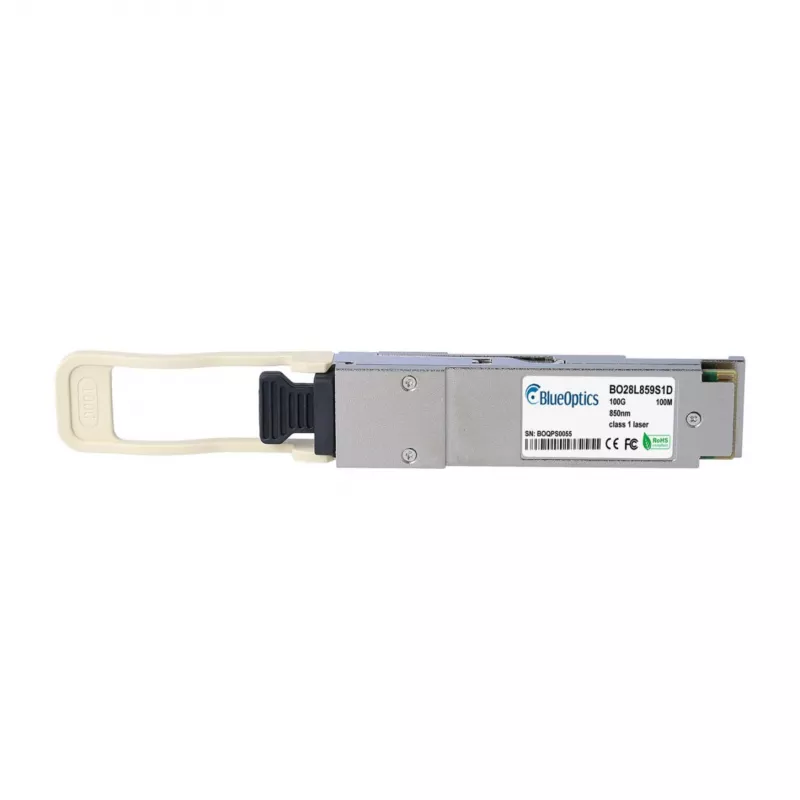

The BlueOptics BO28L859S1D is a high-performance QSFP28 transceiver module designed for 100 Gigabit Ethernet networks. It is fully compatible with Ruckus E100G-QSFP28-SR4 equipment, ensuring seamless integration and reliable data transmission. This hot-pluggable module supports 100GBASE-SR4 standard over multi-mode fiber, delivering up to 100 meters reach on OM4 fiber and 70 meters on OM3 fiber. With low power consumption under 3.5W and advanced digital diagnostic monitoring (DDM), it is an ideal solution for data centers and enterprise networks requiring high bandwidth and efficiency.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Fully compatible with Ruckus switches and routers, offering plug-and-play operation. Low power consumption reduces energy costs and heat dissipation. Built-in DDM enables real-time monitoring of optical parameters for proactive network management. RoHS, CE, and FCC compliant, ensuring environmental and regulatory standards.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-performance computing clusters
• Telecommunications infrastructure

Key specifications

• Transceiver Type: QSFP28
• Data Rate: 100 Gbps (100GBASE-SR4)
• Wavelength: 850 nm
• Connector: MPO/MTP (12-fiber)
• Fiber Type: Multi-mode (OM3/OM4)
• Max Reach: 100 m (OM4), 70 m (OM3)
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• DDM/DOM: Yes

Recommendations

For optimal performance, use with OM4 multi-mode fiber and ensure proper MPO connector cleaning. This module is recommended for 100G Ethernet applications requiring high density and low latency.
