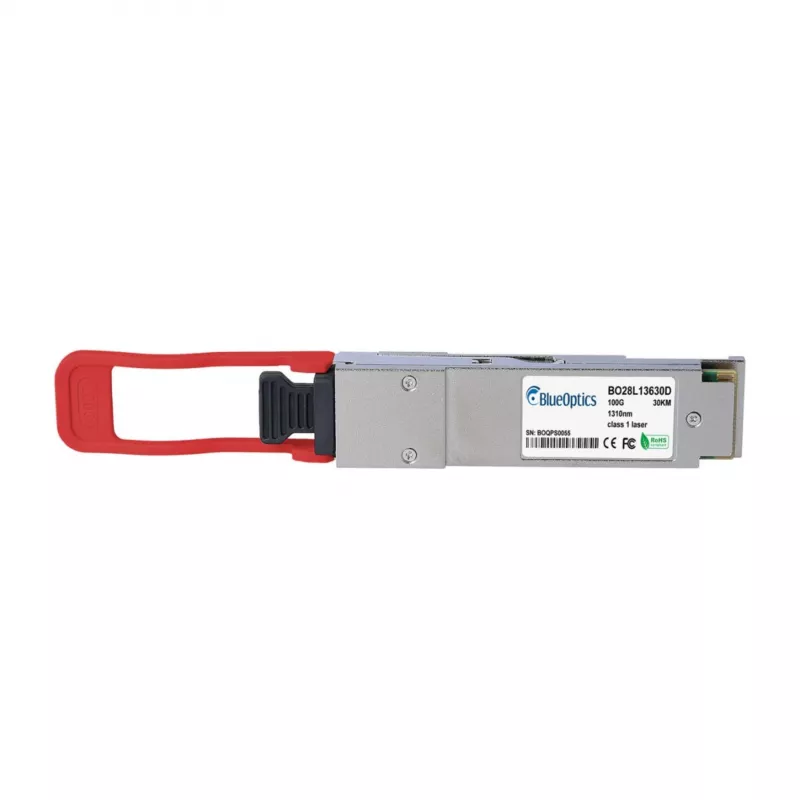

Transceptor BlueOptics Ruckus E100G-QSFP28-ER4L QSFP28 compatível, LC duplex, 100GBASE-ER4L, 30 km

The BlueOptics BO28L13630D is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with Ruckus E100G-QSFP28-ER4L equipment, delivering reliable connectivity over single-mode fiber at distances up to 30 km. This transceiver supports 100GBASE-ER4L standard and features LC duplex connector, making it ideal for long-reach data center and enterprise network deployments.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Hot-pluggable design ensures easy installation and minimal network downtime. Supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Low power consumption under 4.5 W helps reduce operational costs.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecommunications
• High-speed computing environments

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (4x 25 Gbps)
• Ethernet Standard: 100GBASE-ER4L
• Connector Type: LC Duplex
• Fiber Type: Single-Mode Fiber (SMF)
• Max Reach: 30 km
• Wavelengths: 1295.56 nm, 1300.00 nm, 1304.44 nm, 1308.88 nm
• Transmitter Type: EML
• Receiver Type: PIN
• Power Consumption: < 4.5 W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• Compliance: MSA Compliant, IEEE 802.3ba

Recommendations

For optimal performance, use with compatible Ruckus switches and routers. Ensure proper fiber cleaning before installation. This module is a direct replacement for Ruckus E100G-QSFP28-ER4L.
