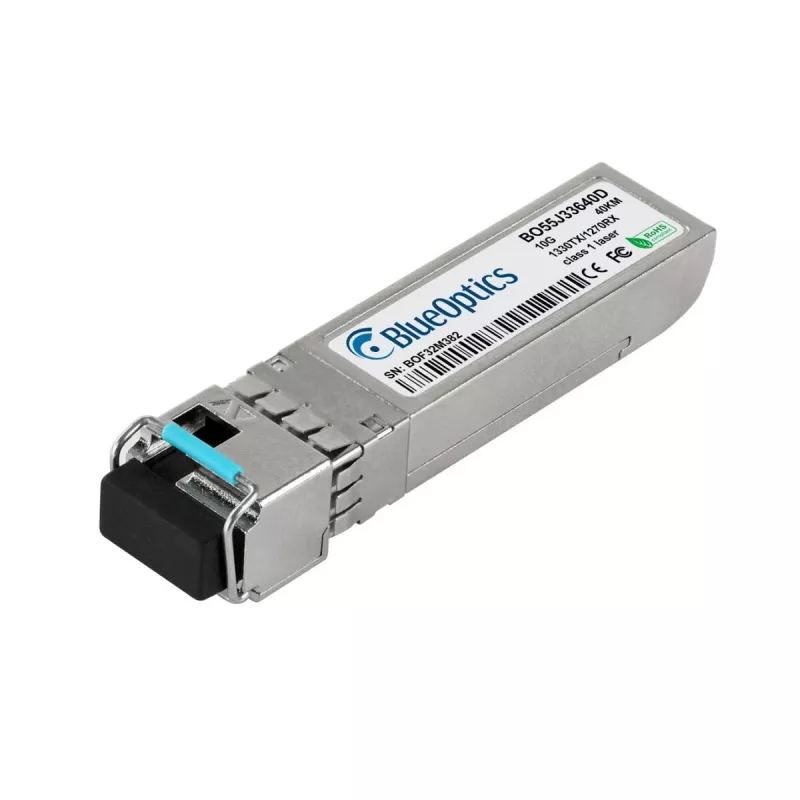

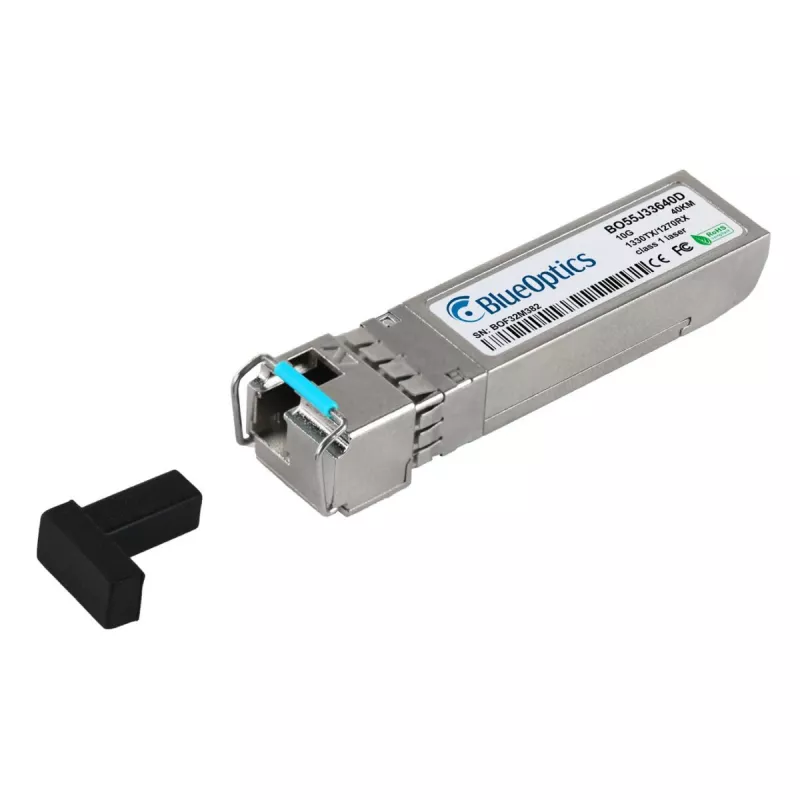

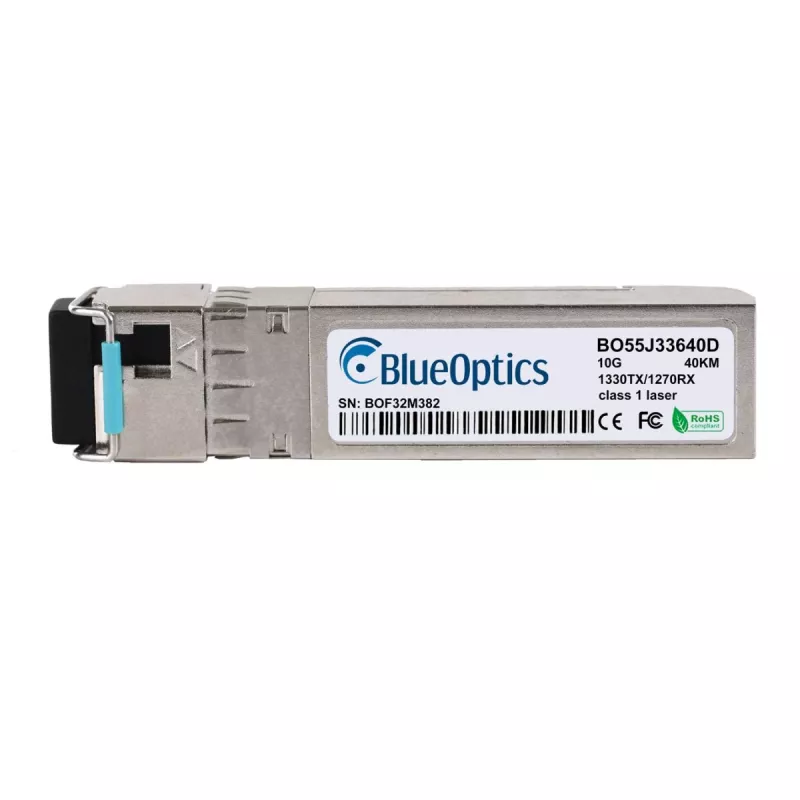

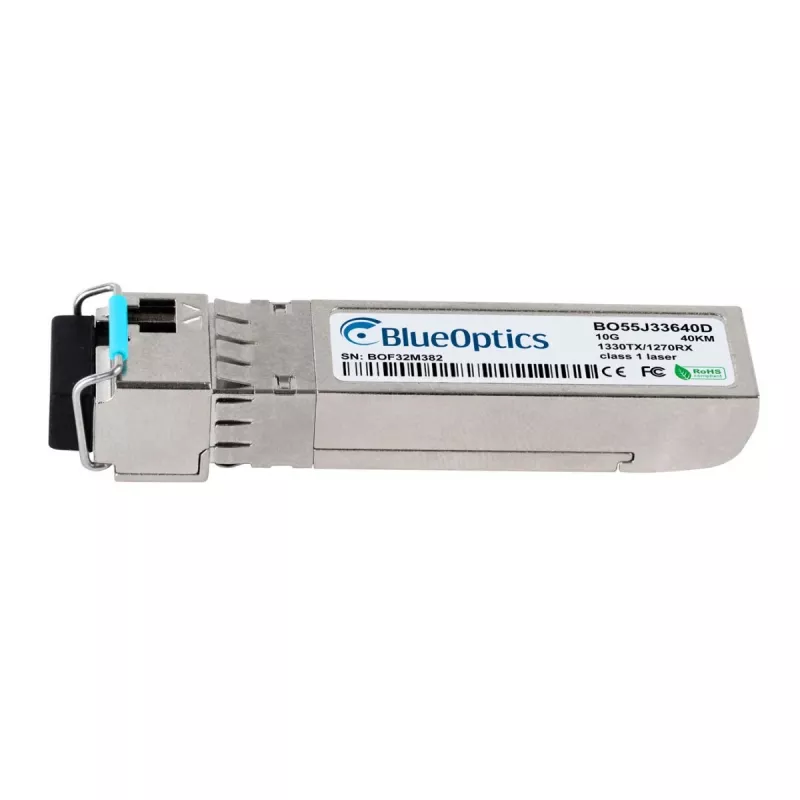

Transceptor BlueOptics SFP+ BO55J33640D 10GBASE-BX-D 40 km LC simplex compatível com Synology SFP-10G-BX-D-40KM

The BlueOptics SFP+ BO55J33640D is a high-performance, cost-effective transceiver designed for 10 Gigabit Ethernet networks. It is fully compatible with Synology SFP-10G-BX-D-40KM and offers reliable connectivity over single-mode fiber at distances up to 40 km. This bi-directional SFP+ module operates on a single LC simplex connector, utilizing 1330 nm transmit and 1270 nm receive wavelengths. It supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking and is hot-pluggable for easy installation. Ideal for long-reach data center, enterprise, and telecommunications applications.

Advantages

Cost-effective alternative to OEM modules with full compatibility. Supports long-distance transmission up to 40 km, reducing the need for repeaters. Low power consumption under 1.0 W helps minimize energy costs. Hot-pluggable design allows for quick deployment and maintenance without network downtime.

Suitable for

• 10 Gigabit Ethernet networks requiring long-range single-mode fiber connections
• Data center interconnects and campus backbone links
• Telecommunications and service provider networks
• Synology NAS systems with SFP+ slots

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps (10GBASE-BX-D)
• Max Distance: 40 km over single-mode fiber
• Connector: LC Simplex
• Wavelength: Tx 1330 nm / Rx 1270 nm
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This module is designed for point-to-point links and requires a matching transceiver at the other end with reversed wavelengths (Tx 1270 nm / Rx 1330 nm).
